RS PRO Black Male Banana Connectors, 4 mm Connector, Screw Termination, 10A, 50V, Nickel Plating

View all Banana Connectors
Bulk discount available

Subtotal (1 unit)*

£1.22

(exc. VAT)

£1.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 695 unit(s) ready to ship
  • Plus 134 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£1.22
5 - 9£1.16
10 - 24£1.11
25 - 49£1.00
50 +£0.92

*price indicative

RS Stock No.:
180-6649
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Colour

Black

Gender

Male

Termination Method

Screw

Voltage Rating

50V

Connector Size

4 mm

Current Rating

10A

Contact Plating

Nickel

Length

49.8mm

Contact Material

Brass

Type

Banana Plug

Insulation Material

Acetal

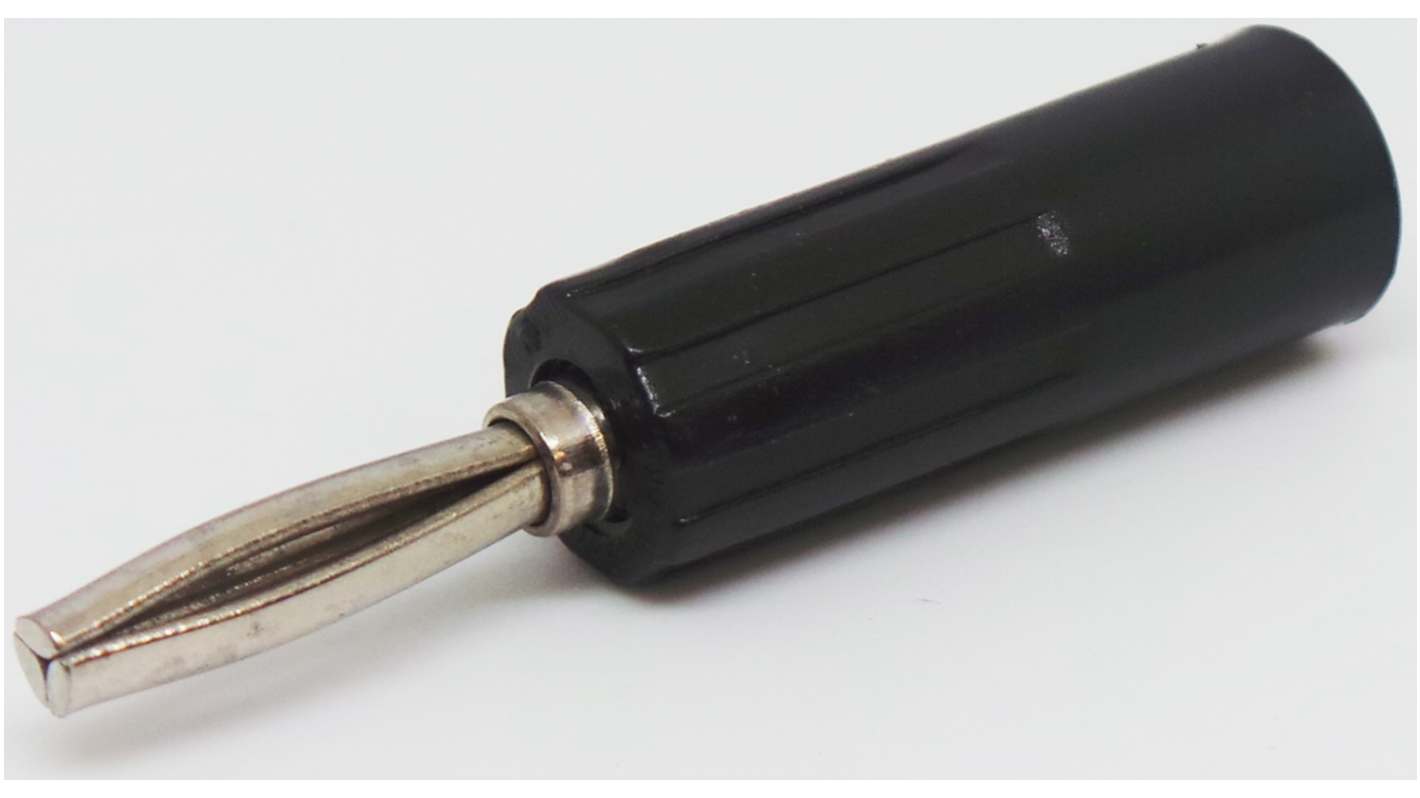

RS PRO 4 mm Banana Plug - Male


Looking to make your own test leads, then RS PRO has the perfect addition in the 4 mm banana plug. This nickel plated plug is the ideal solution for making test leads to your specification. Upon inspection, the plug connector offers high-grade acetal plastic insulation with a centre contact made from nickel-plated brass and screw termination method. It accepts test lead cables with a 7.1 mm diameter with a conductor of 3.5 mm diameter.

Features and Benefits


  • 4 mm male banana plug

  • Nickel plated brass contact

  • Triple contact plug

  • Keeps your cables and equipment safe

  • Voltage rating: 50V

  • Current rating: 10A

  • Acetal plastic insulation material to ensure a strong and durable plug

Applications


The RS PRO 3 curved brass and nickel plated pins combined to produce a reliable 4mm plug with excellent contact resistance and good retention with the socket. Rated at 10 Amps, with a screw connection for the lead wire and a screw-on rigid Acetal moulding. Accepts up to 7.1mm diameter cable with a conductor of 3.5mm diameter. Available in a range of standard colours.

How do you make a banana plug test lead?


Terminating the plug connector is very straight forward, the centre contact has an aperture for the cable wire to be soldered. Once soldered assemble all the plug elements back together now your test lead is ready for use.

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
