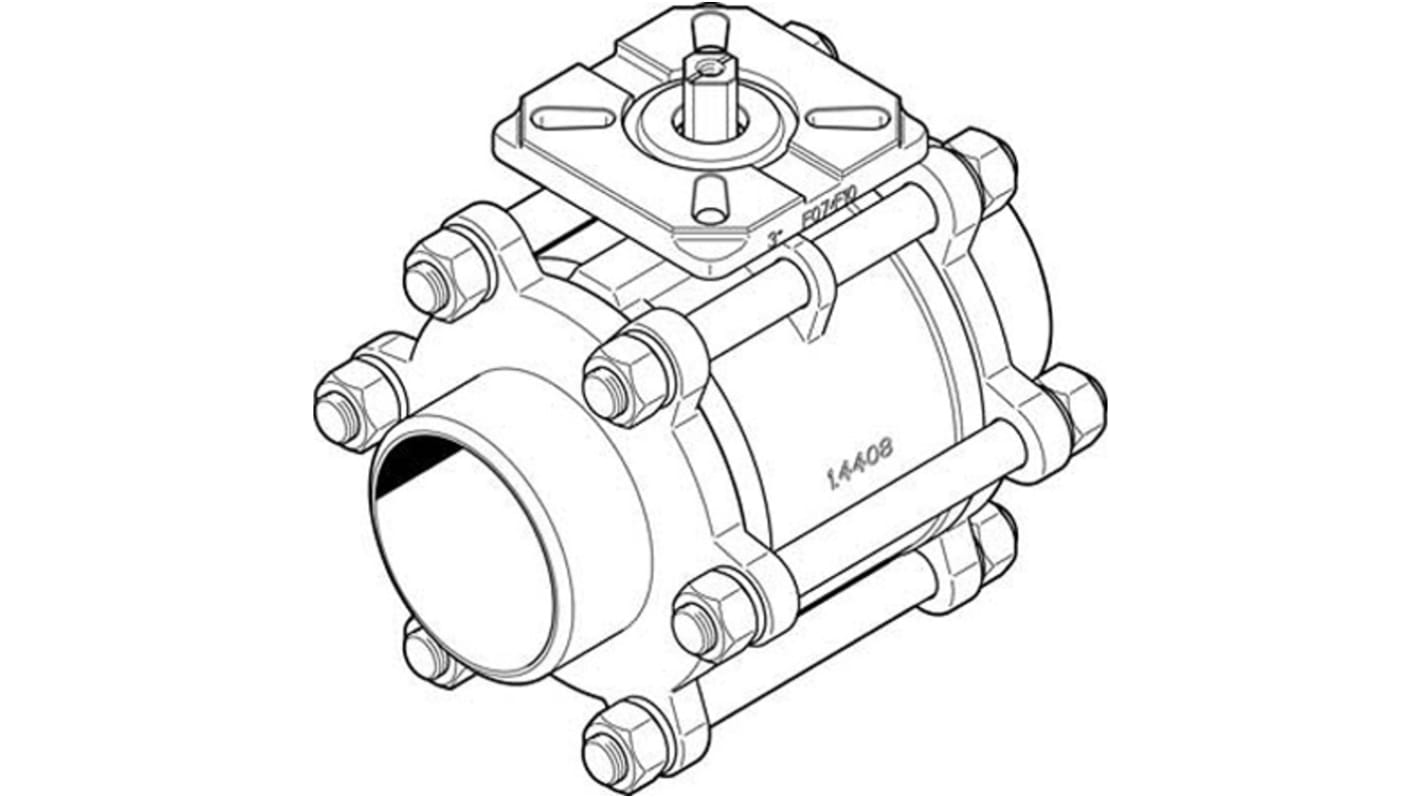

Festo Stainless Steel Threaded, Ball Valve
- RS Stock No.:
- 275-2905
- Mfr. Part No.:
- VZBA-3"-WW-63-T-22-F0710-V4V4T
- Brand:
- Festo
Subtotal (1 unit)*
£974.48
(exc. VAT)
£1,169.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £974.48 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 275-2905
- Mfr. Part No.:
- VZBA-3"-WW-63-T-22-F0710-V4V4T
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Ball Valve | |
| Inlet Connection Type | Threaded | |
| Ball Material | Stainless Steel | |
| Seal Material | Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced) | |
| Flow Factor Kv | 905m³/h | |
| Body Material | Stainless Steel | |
| Handle Material | High Alloy Steel | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | Zone 21 (ATEX), In accordance with EU Pressure Equipment Directive, UK Pressure Equipment Regulations, Zone 22 (ATEX), LABS (PWIS) VDMA24364 zone III, Zone 2 (ATEX), DIN 3202-S13 ISO 5211, Zone 1 (ATEX), RoHS | |
| Better World Product | Yes | |
| Better World Claim | Repairable by the End User | |
| Model Number | 1686704 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Ball Valve | ||
Inlet Connection Type Threaded | ||
Ball Material Stainless Steel | ||
Seal Material Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced) | ||
Flow Factor Kv 905m³/h | ||
Body Material Stainless Steel | ||
Handle Material High Alloy Steel | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals Zone 21 (ATEX), In accordance with EU Pressure Equipment Directive, UK Pressure Equipment Regulations, Zone 22 (ATEX), LABS (PWIS) VDMA24364 zone III, Zone 2 (ATEX), DIN 3202-S13 ISO 5211, Zone 1 (ATEX), RoHS | ||
Better World Product Yes | ||
Better World Claim Repairable by the End User | ||
Model Number 1686704 | ||
- COO (Country of Origin):
- TW
Festo VZBA Series Ball Valve, 80mm Pipe Diameter, 63 bar Maximum Working Pressure - VZBA-3-WW-63-T-22-F0710-V4V4T, Numeric Part Number: 1686704
This ball valve is 2-way assembly constructed from high-alloy stainless steel. This valve features a nominal size of DN 80 with an inside diameter of 80mm. It can operate under high pressures, up to 63 bar, making it suitable for handling air, gas, and water.
Features & Benefits
• Two-way design allows for versatile flow configurations
• Mechanical actuation facilitates reliable operation
• Soft sealing principle ensures leak-free performance
• Corrosion resistance offers durability in harsh environments
• Reversible flow direction enhances operational flexibility
• High-pressure rating supports diverse applications
• Mechanical actuation facilitates reliable operation
• Soft sealing principle ensures leak-free performance
• Corrosion resistance offers durability in harsh environments
• Reversible flow direction enhances operational flexibility
• High-pressure rating supports diverse applications
Applications
• Used with compressed Air for industrial automation
• Ideal for transporting NEUTRAL fluids and inert gases
• Employed in water systems where no vapour is present
• Suitable for high-pressure environments in mechanical systems
• Utilised in various sectors including electronics and electrical industries
• Ideal for transporting NEUTRAL fluids and inert gases
• Employed in water systems where no vapour is present
• Suitable for high-pressure environments in mechanical systems
• Utilised in various sectors including electronics and electrical industries
What is the maximum temperature range for usage?
The valve operates effectively within a media temperature range of -10 °C to 200 °C, making it versatile for different applications.
How does the valve ensure leak prevention?
The design incorporates a soft sealing principle, which provides a reliable barrier to prevent leakage in flow applications, maintaining system integrity.
What pressure can this valve safely handle?
It can withstand maximum working pressures of up to 63 bar, making it suitable for high-pressure applications in industrial settings.
Can this valve be installed in any orientation?
Yes, it supports optional mounting positions, allowing for flexibility in installation based on specific system requirements.
What materials contribute to its durability?
The valve features a housing MADE from high-alloy stainless steel ensuring resistance to corrosion and enhancing its longevity in demanding environments.
