Festo Stainless Steel Threaded Weld-on End, Ball Valve

RS Stock No.:: 275-2903
Mfr. Part No.:: VZBA-21/2"-WW-63-T-22-F0710-V4V4T
Brand:: Festo

Festo Stainless Steel Threaded Weld-on End, Ball Valve

Subtotal (1 unit)*

£704.19

(exc. VAT)

£845.03

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 25 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£704.19

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Click here to find out more.

RS Stock No.:: 275-2903
Mfr. Part No.:: VZBA-21/2"-WW-63-T-22-F0710-V4V4T
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Outlet Connection Type	Weld-on End
	Inlet Connection Type	Threaded
	Product Type	Ball Valve
	Ball Material	Stainless Steel
	Seal Material	Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced)
	Body Material	Stainless Steel
	Flow Factor Kv	507m³/h
	Handle Material	High Alloy Steel
	Maximum Operating Temperature	200°C
	Standards/Approvals	DIN 3202-S13, ISO 5211, LABS (PWIS), RoHS
	Better World Claim	Repairable by the End User
	Better World Product	Yes

	Select all
	Brand Festo
	Outlet Connection Type Weld-on End
	Inlet Connection Type Threaded
	Product Type Ball Valve
	Ball Material Stainless Steel
	Seal Material Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced)
	Body Material Stainless Steel
	Flow Factor Kv 507m³/h
	Handle Material High Alloy Steel
	Maximum Operating Temperature 200°C
	Standards/Approvals DIN 3202-S13, ISO 5211, LABS (PWIS), RoHS
	Better World Claim Repairable by the End User
	Better World Product Yes

COO (Country of Origin):: TW

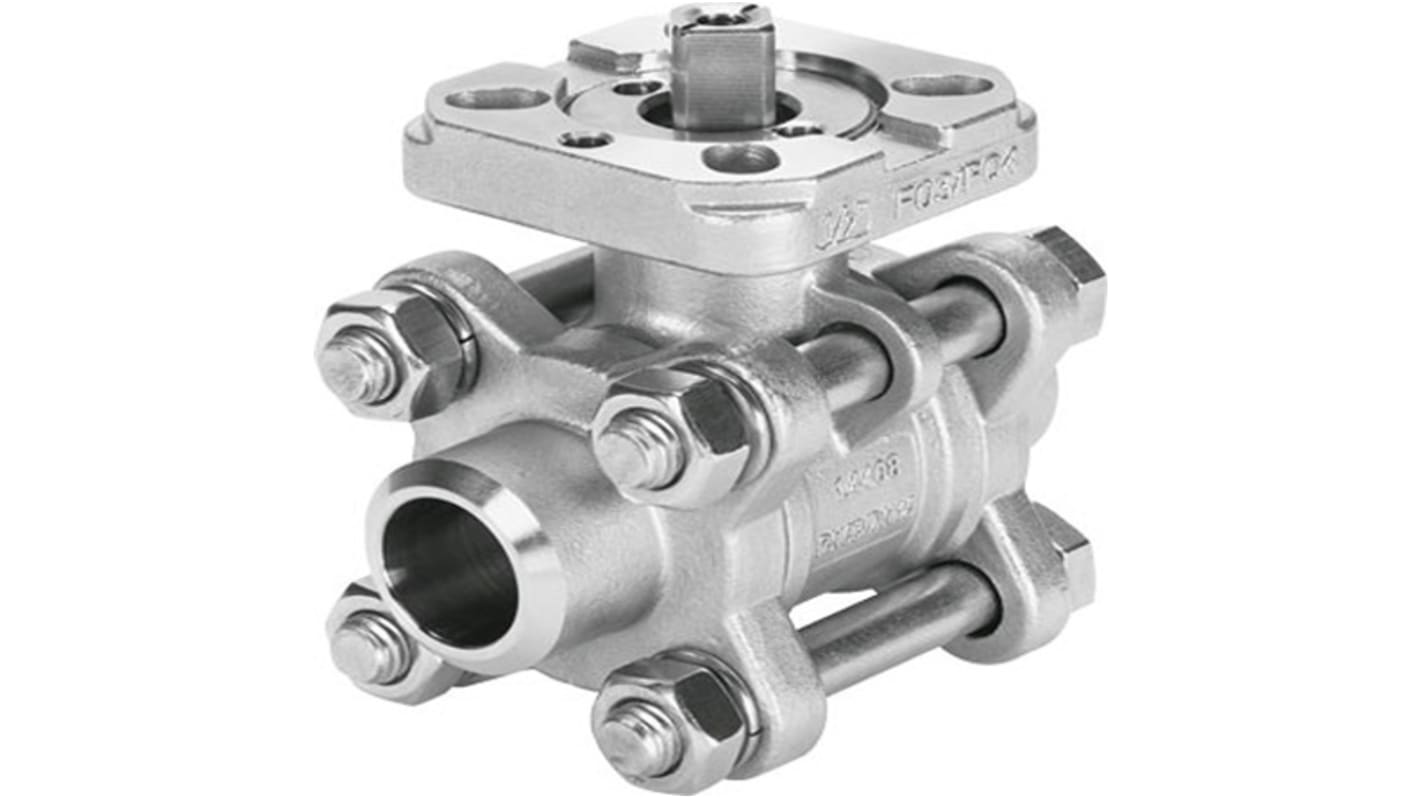

Festo VZBA Series Ball Valve, 65mm Pipe Diameter, 2 Way Type - VZBA-21/2-WW-63-T-22-F0710-V4V4T, Numeric Part Number: 1686702

This is a Durable 2-way ball valve designed for high-pressure applications and MADE from high-alloy stainless steel. With a connection size of 65mm, it is suitable for various media, including air, gas, and water. Operating at a maximum pressure of 63 bar, the valve is Ideal for industrial tasks, fulfilling stringent operational requirements.

Features & Benefits

• Mechanical actuation enables easy and efficient control
• Soft sealing principle ensures a tight and leak-free closure
• Reversible flow direction accommodates versatile installation needs
• Designed for in-line installations, simplifying integration into systems
• High torque of 78 Nm provides strong operational performance
• RoHS-compliant materials ensure safety and environmental responsibility

Applications

• Suitable for controlling compressed Air systems
• Ideal for industrial processes involving NEUTRAL fluids
• Utilised in pneumatic systems requiring high-pressure flow
• Applicable in installations dealing with inert gases
• Effective for water management systems without vapour

What is the maximum temperature range for media when using this valve?

The valve can accommodate media temperatures ranging from -10 °C to 200 °C making it versatile for different applications.

How does the ball valve ensure reliable sealing performance?

The valve employs a soft sealing principle that provides a tight closure, significantly reducing the risk of leaks during operation.

What mounting options are available for this valve?

The valve supports in-line installation and can be mounted in various positions, offering flexibility for different setups.

What materials are used in the construction of this valve?

The housing and ball are MADE from high-alloy stainless steel, while the Seals are constructed from FPM and PTFE ensuring durability and resistance to corrosion.
