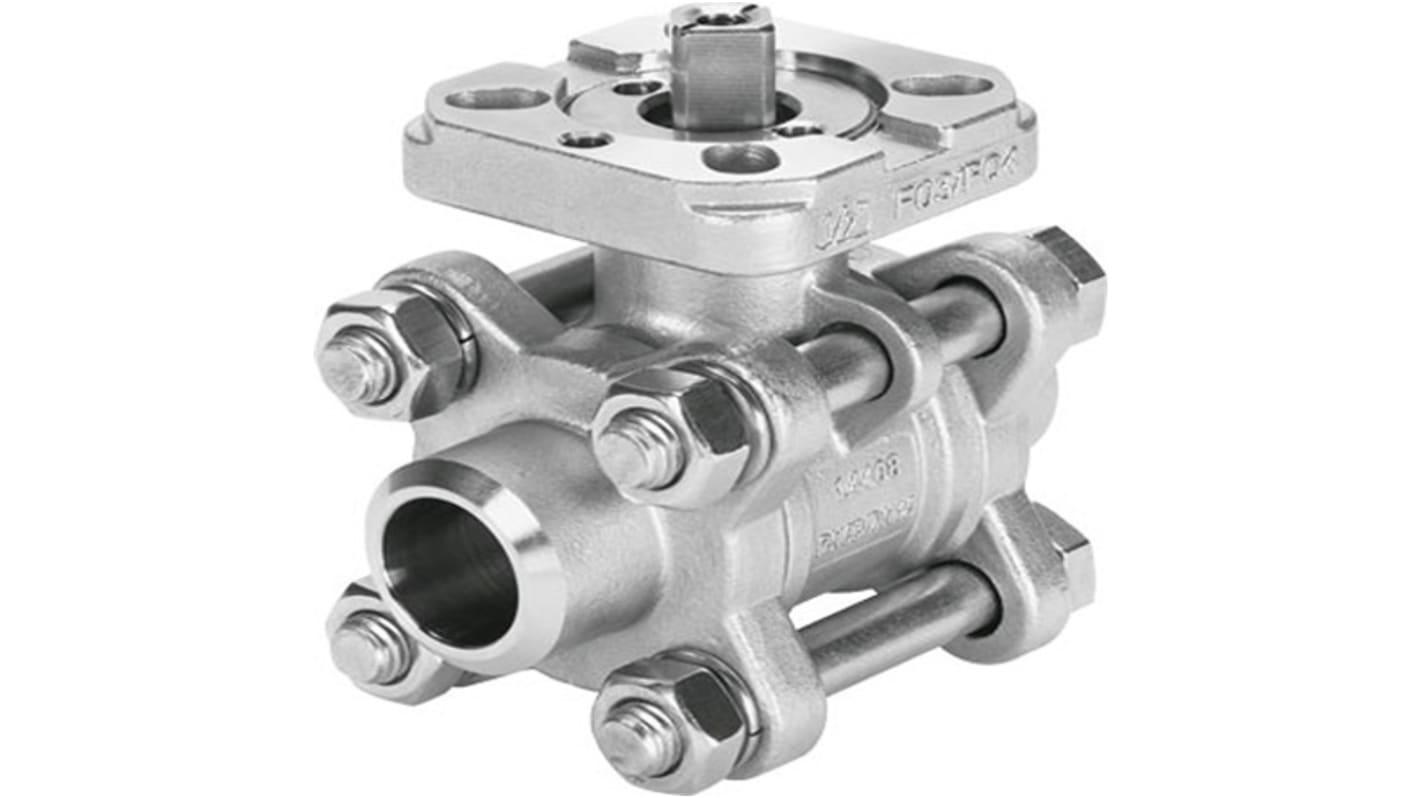

Festo Stainless Steel Threaded Weld-on End, Ball Valve

RS Stock No.:: 275-2895
Mfr. Part No.:: VZBA-1/4"-WW-63-T-22-F0304-V4V4T
Brand:: Festo

Festo Stainless Steel Threaded Weld-on End, Ball Valve

Subtotal (1 unit)*

£88.25

(exc. VAT)

£105.90

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 02 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£88.25

*price indicative

Festo DFPD Actuators

Discover Festo DFPD quarter turn actuators for seamless process automation. Elevate your systems with precision-engineered solutions tailored for efficiency.

Shop Now

RS Stock No.:: 275-2895
Mfr. Part No.:: VZBA-1/4"-WW-63-T-22-F0304-V4V4T
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Outlet Connection Type	Weld-on End
	Product Type	Ball Valve
	Inlet Connection Type	Threaded
	Ball Material	Stainless Steel
	Seal Material	Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced)
	Outlet Port Size	10 mm
	Flow Factor Kv	7m³/h
	Body Material	Stainless Steel
	Handle Material	High Alloy Steel
	Maximum Operating Temperature	200°C
	Standards/Approvals	DIN 3202-S13, ISO 5211, Zone 2 (ATEX), Zone 1 (ATEX), Zone 22 (ATEX), RoHS, Zone 21 (ATEX), VDMA24364 zone III

	Select all
	Brand Festo
	Outlet Connection Type Weld-on End
	Product Type Ball Valve
	Inlet Connection Type Threaded
	Ball Material Stainless Steel
	Seal Material Polytetrafluoroethylene (Polytetrafluoroethylene Reinforced)
	Outlet Port Size 10 mm
	Flow Factor Kv 7m³/h
	Body Material Stainless Steel
	Handle Material High Alloy Steel
	Maximum Operating Temperature 200°C
	Standards/Approvals DIN 3202-S13, ISO 5211, Zone 2 (ATEX), Zone 1 (ATEX), Zone 22 (ATEX), RoHS, Zone 21 (ATEX), VDMA24364 zone III

COO (Country of Origin):: TW

Festo VZBA Series Ball Valve, 2 Way Type, Maximum Working Pressure 63 bar - VZBA-1/4-WW-63-T-22-F0304-V4V4T, Numeric Part Number: 1686656

This ball valve is 2-way valve designed for reliable control of air, gas, and water flows. Constructed from high-alloy stainless steel, it features a threaded attachment method compatible with 8mm compression fittings. The valve operates efficiently under a maximum pressure of 63 bar.

Features & Benefits

• Operates as a 2-way ball valve for versatile flow control
• Mechanically actuated design ensures reliable operation
• Soft sealing principle enhances tight closure
• Can be mounted in-line for straightforward installation
• Corrosion-resistant materials suitable for demanding environments

Applications

• Used for controlling compressed Air systems
• Utilised in gas distribution
• Applied in water treatment processes
• Ideal for industrial automation systems
• Suitable for fluid handling in mechanical systems

What is the recommended medium temperature range for use?

The valve can effectively operate with media at temperatures ranging from -10 °C to 200 °C, fitting various fluid handling requirements.

How does the valve ensure compatibility with different media?

Its construction materials include RoHS-compliant high-alloy stainless steel, making it safe for use with air, gases, and NEUTRAL fluids.

What installation positions are available for this valve?

The valve can be installed in an optional mounting position, which provides flexibility depending on installation needs and space constraints.

What is the significance of the ATEX zone certifications?

Being certified for multiple ATEX zones provides assurance for safe usage in potentially explosive atmospheres, addressing safety concerns in hazardous environments.

How does the actuating torque affect valve operation?

The valve requires an actuating torque of 6 Nm, which ensures effective valve operation while minimising strain on the actuator system.
