SKF W6208-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 40mm I.D, 80mm O.D
- RS Stock No.:
- 893-0243
- Mfr. Part No.:
- W6208-2RS1
- Brand:
- SKF
Available to back order for despatch 29/05/2024
Added
Price Each
£148.18
(exc. VAT)
£177.82
(inc. VAT)
| Units | Per unit |
| 1 + | £148.18 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 893-0243
- Mfr. Part No.:
- W6208-2RS1
- Brand:
- SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details

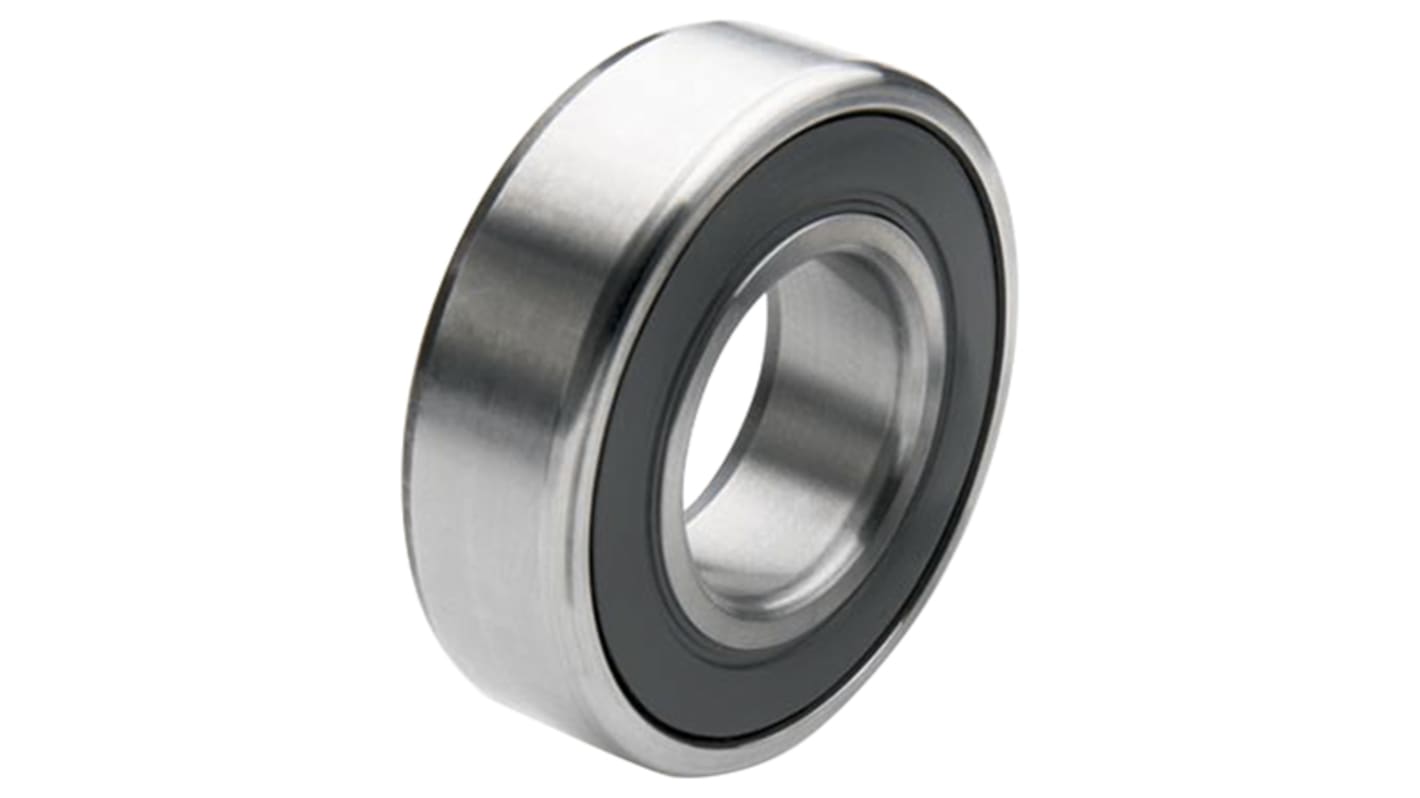

SKF Plain Deep Groove Ball Bearing, 40 mm ID - W6208-2RS1
This stainless steel ball bearing from SKF is specifically designed for use in corrosive environments. It offers excellent water resistance and has a long working life. Advanced lubrication and sealing technology mean it can withstand harsh treatment – such as high-pressure equipment washdowns – as its seals won't deflect outwards or open. This bearing is lubricated for life, making re-lubrication unnecessary. It's a smart choice for use in hard-to-reach areas where manual re-greasing is difficult.
• Parallel cage type
• Deep groove ball bearing type
• Dynamic load rating of 25.1 kN
• Static load rating of 17.6 kN
• Sealed end type
• Inner diameter of 40 mm
• Outer diameter of 80 mm
• Single row
• Plain race type
• Race width of 18 mm
• Deep groove ball bearing type
• Dynamic load rating of 25.1 kN
• Static load rating of 17.6 kN
• Sealed end type
• Inner diameter of 40 mm
• Outer diameter of 80 mm
• Single row
• Plain race type
• Race width of 18 mm
Application Information
• Paper and printing industries
• Offshore and marine applications
• Chemical, medical and pharmaceutical industries
• Offshore and marine applications
• Chemical, medical and pharmaceutical industries
Can this bearing be used in the food and beverage industry?
The lubricant in this bearing from SKF is non-toxic and food grade-certified, making it safe to use in environments where food or beverages are present.
Is the entire bearing made from stainless steel?
The rings, balls, cage and shield of these SKF bearings are all made from stainless steel, making this component well-suited to harsh industrial and outdoor environments.
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 40mm |
| Outside Diameter | 80mm |
| Race Width | 18mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Sealed |
| Bearing Clearance | CN |
| Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Sheet Metal |
| Number of Rows | 1 |
| Static Load Rating | 17.6kN |
| Dynamic Load Rating | 25.1kN |
| Bore Type | Parallel |
| Bearing Series | 2 Light |
| Race Type | Plain |
| Race Material | Stainless Steel |
| Partial Bearing Code | 6208 |
