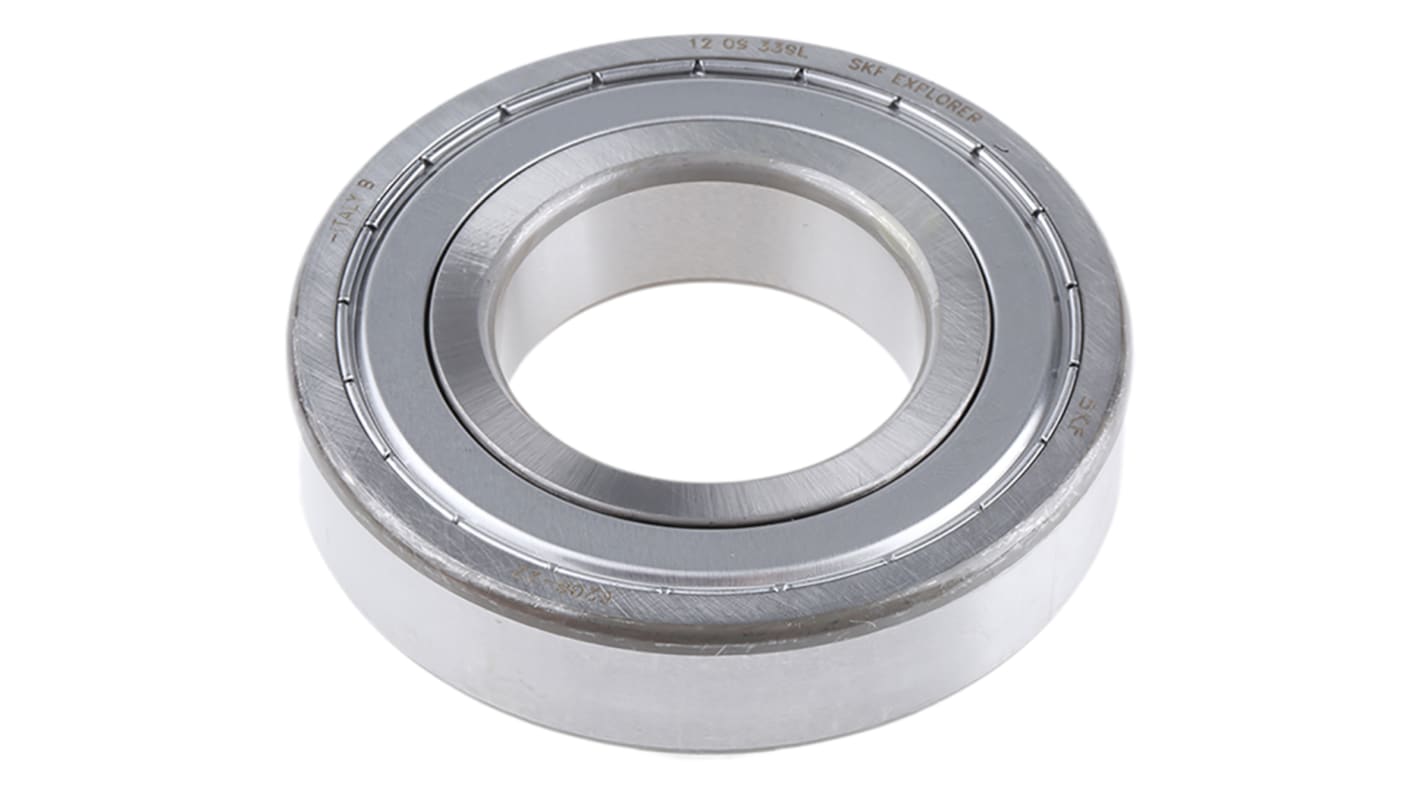

SKF 6208-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 40mm I.D, 80mm O.D
- RS Stock No.:
- 286-8094
- Mfr. Part No.:
- 6208-2Z
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£16.98
(exc. VAT)
£20.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.98 |
5 - 9 | £16.30 |
10 - 24 | £15.96 |
25 + | £15.63 |
*price indicative
- RS Stock No.:
- 286-8094
- Mfr. Part No.:
- 6208-2Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 40mm | |
Outside Diameter | 80mm | |
Race Width | 18mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 19kN | |
Dynamic Load Rating | 32.5kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 6208 | |
Model Number p | 62082Z | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Outside Diameter 80mm | ||
Race Width 18mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 19kN | ||
Dynamic Load Rating 32.5kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 6208 | ||
Model Number p 62082Z | ||
Race Type Plain | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 40mm ID, 80mm OD - 6208-2Z
Need a secure means of getting radial and axial loads from A to B? Choose this ball bearing from SKF. Its shields keep its grease lubricant in and lock contaminants out, so you can count on it to operate smoothly, even in demanding industrial settings. As a deep-groove type, it's optimised for low friction, noise and vibration, helping it achieve high speeds of up to 9000r/min. The bearing's also very hardwearing, thanks to its carbon-rich bearing steel composition, so you can trust it's a long-lasting option.
Features & Benefits
• Part of the SKF Explorer class, so safe and long-lasting in high-power-density applications
• Heat-stabilised up to +120°C, so it's safe for use in harsh environments
• Dynamic load rating of 32.5kN means it moves large forces safely while in motion
• Reference speed of 18,000r/min gives you a safe upper limit to avoid thermal degradation
• Heat-stabilised up to +120°C, so it's safe for use in harsh environments
• Dynamic load rating of 32.5kN means it moves large forces safely while in motion
• Reference speed of 18,000r/min gives you a safe upper limit to avoid thermal degradation
Applications
• Automotive manufacture
• Industrial fans
• Material handling
• Gearboxes
• Industrial fans
• Material handling
• Gearboxes
What does this bearing's fatigue load limit mean?
The product's fatigue load limit of 0.8kN indicates the safe upper limit beyond which metal degradation becomes more likely.
