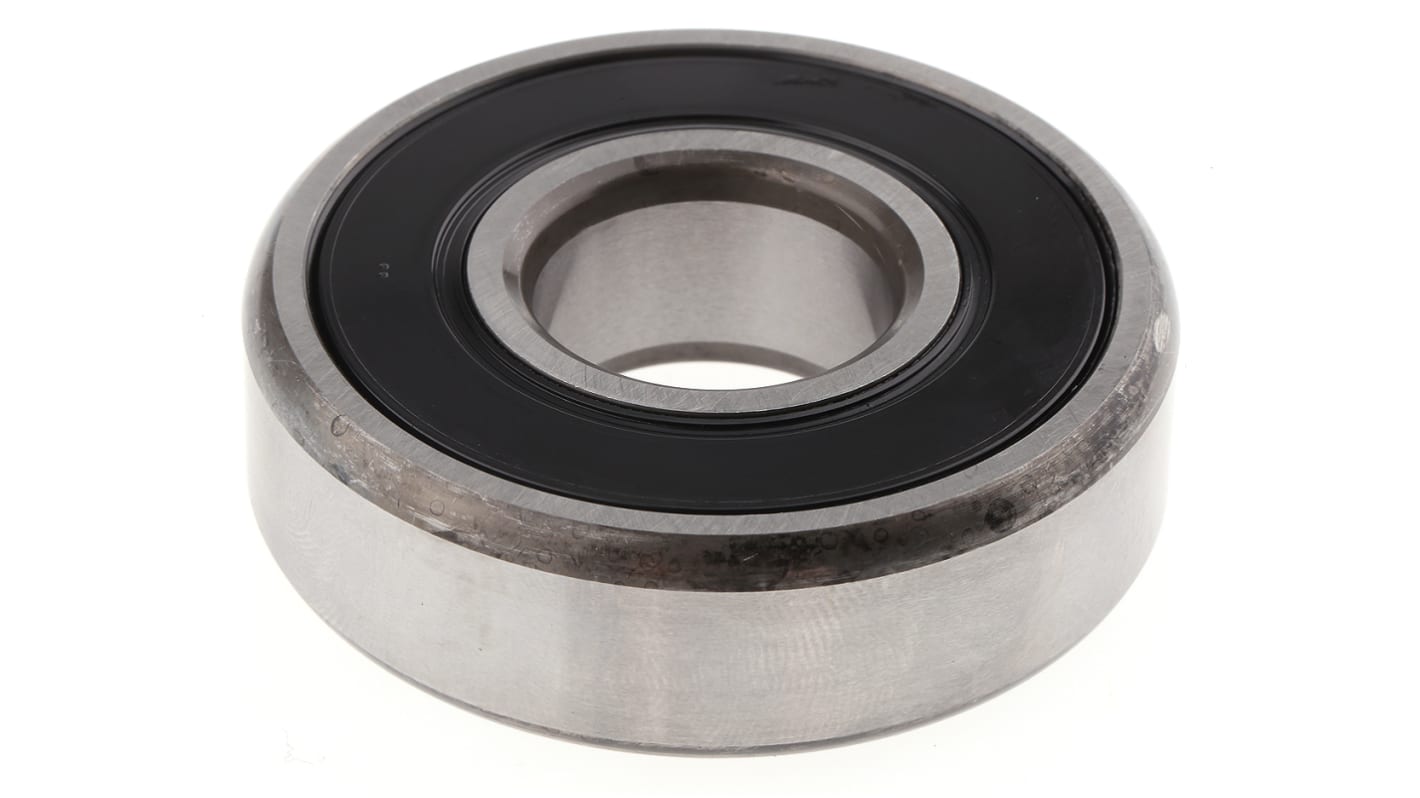

SKF 6304-2RSH/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 52mm O.D
- RS Stock No.:
- 667-1235
- Mfr. Part No.:
- 6304-2RSH/C3
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£8.49
(exc. VAT)
£10.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 137 unit(s) ready to ship
- Plus 107 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.49 |
| 5 - 9 | £8.16 |
| 10 - 24 | £7.99 |
| 25 + | £7.82 |
*price indicative
- RS Stock No.:
- 667-1235
- Mfr. Part No.:
- 6304-2RSH/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 20mm | |
| Outside Diameter | 52mm | |
| Race Width | 15mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Both Sides Sealed | |
| Bearing Clearance | C3 | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Static Load Rating | 7.8kN | |
| Dynamic Load Rating | 16.8kN | |
| Bore Type | Parallel | |
| Bearing Series | 3 Medium | |
| Model Number p | 63042RSC3 | |
| Partial Bearing Code | 6304 | |
| Race Type | Plain | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 16.8kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Model Number p 63042RSC3 | ||
Partial Bearing Code 6304 | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG
SKF Ball Bearing, Deep-Groove Bearing Type, Parallel Bore, 20mm ID, 52mm OD - 6304-2RSH/C3
Need a support system for rotating parts in your machinery? This deep-groove ball bearing from SKF gets the job done. It supports combined radial and axial loads in both directions, so it's a reliable multitasker. A robust cage is on hand to lock down the rolling parts, holding them stable against vibration. Thanks to its limiting speed of 12,000r/min and a reference speed of 38,000r/min, you can rest assured that this part keeps up with the demands of your heavy-duty equipment.
Features & Benefits
• Rugged steel housing resists corrosion for lasting use
• Synthetic rubber seals are oil-resistant for durability and reduced maintenance
• Synthetic rubber seals are oil-resistant for durability and reduced maintenance
Applications
• Agricultural equipment
• Conveyor systems
• Material handling
• Industrial pumps
• Conveyor systems
• Material handling
• Industrial pumps
What's the load rating of this ball bearing?
This bearing has a basic dynamic load rating of 16.8kN and a static load rating of 7.8kN, so it's up to the task of handling medium loads in your moving and stationary systems.
What's the cage of this bearing made of?
It's made of tough sheet metal that resists the hard impacts you'd expect in challenging settings.
