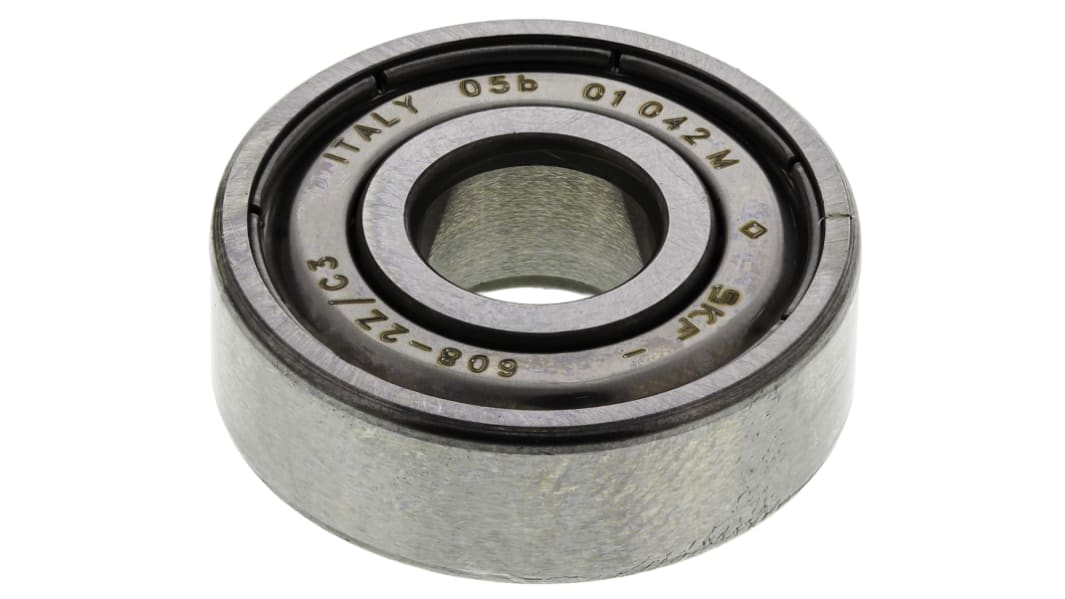

SKF 608-2Z/C3 1 Row Ball Bearing - 8 mm ID, 22 mm OD
- RS Stock No.:
- 667-1030
- Distrelec Article No.:
- 304-09-828
- Mfr. Part No.:
- 608-2Z/C3
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£4.17
(exc. VAT)
£5.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 34 unit(s) ready to ship
- Plus 246 unit(s) ready to ship from another location
- Plus 205 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.17 |
| 5 - 9 | £3.98 |
| 10 - 24 | £3.92 |
| 25 + | £3.85 |
*price indicative
- RS Stock No.:
- 667-1030
- Distrelec Article No.:
- 304-09-828
- Mfr. Part No.:
- 608-2Z/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 8mm | |
| Outside Diameter | 22mm | |
| Race Width | 7mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 1.37kN | |
| Dynamic Load Rating | 3.45kN | |
| Standards/Approvals | No | |
| Series | 608 | |
| Bore Type | Parallel | |
| Limiting Speed | 38000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 8mm | ||
Outside Diameter 22mm | ||
Race Width 7mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Shielded | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 1.37kN | ||
Dynamic Load Rating 3.45kN | ||
Standards/Approvals No | ||
Series 608 | ||
Bore Type Parallel | ||
Limiting Speed 38000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
SKF Shielded Deep-Groove Ball Bearing, 8mm ID, 22mm OD - 608-2Z/C3
This SKF deep-groove ball bearing is a versatile component that accommodates both radial and axial loads. It produces lower levels of friction than many standard ball bearings, reducing the operating temperature and allowing your machinery to operate efficiently at high speeds. Metal shields on both sides of the bearing keep out damaging particles like dust, preventing malfunctions and prolonging the lifespan of the product. This bearing has a static load rating of 1.37kN and a dynamic load rating of 3.45kN, allowing it to support heavy stationary or moving loads.
• High-quality balls and smooth raceway finish ensure optimal lubrication while limiting vibrations and noise
• Steel material is robust and resistant to corrosion in harsh environments
• Limiting speed of 38,000rpm (rotations per minute) for use at high speeds
Applications
• Medical imaging equipment
• Industrial motors and pumps
• Printing industry
When should I use C3 ball bearings?
You should use a C3 ball bearing like this one for high-heat applications. This is because the clearance is greater than normal to allow room for the bearing to expand when subjected to high temperatures.
