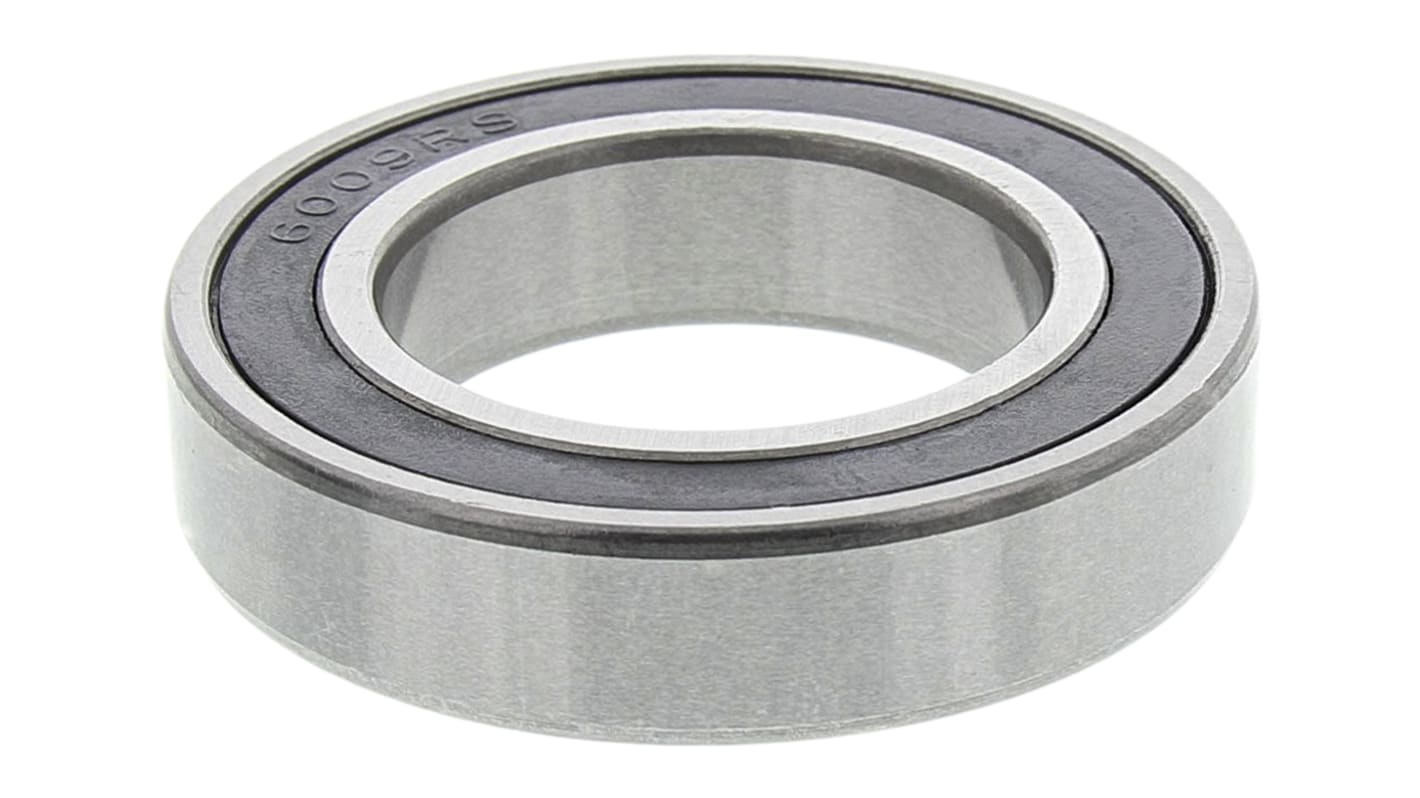

RS PRO 6009-2RS Single Row Deep Groove Ball Bearing- Both Sides Sealed 45mm I.D, 75mm O.D
- RS Stock No.:
- 619-0581
- Mfr. Part No.:
- 6009-2RS
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.17
(exc. VAT)
£9.80
(inc. VAT)
FREE delivery for orders over £50.00
- 84 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 - 4 | £8.17 |
5 - 9 | £7.99 |
10 - 24 | £7.84 |
25 + | £7.68 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£9.02
(exc. VAT)
£10.82
(inc. VAT)
- RS Stock No.:
- 619-0581
- Mfr. Part No.:
- 6009-2RS
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Inside Diameter | 45mm | |
Outside Diameter | 75mm | |
Race Width | 16mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 14.6kN | |
Dynamic Load Rating | 20.8kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 6009 | |
Race Type | Plain | |
Race Material | Steel | |
Bearing Reference Number | 6009-2RS | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Inside Diameter 45mm | ||
Outside Diameter 75mm | ||
Race Width 16mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 14.6kN | ||
Dynamic Load Rating 20.8kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6009 | ||
Race Type Plain | ||
Race Material Steel | ||
Bearing Reference Number 6009-2RS | ||
- COO (Country of Origin):
- CN
RS PRO Sealed Deep Groove Single Row Bearings
Within this RS PRO range, we offer internal diameters from 3mm to 50mm. This huge variety of sizes will ensure that you find the perfect ball bearing for your application.
Features and Benefits
- Inner ring, outer ring, cage, and ball bearings
- Deep grooves
- Sealed
- Material: Steel
- High performing under and high load capacity
- Intended for use where the inner ring rotates
Important Note:
FAQs
Sealed ball bearing offer reliability as they reduce the risk of dust and dirt entering the ball bearing mechanism. They also help to preserve the lubricant within the bearing and keep it running smoother, for longer.
Why Choose a Single Row Deep Groove Ball Bearing?
This type of ball bearing it often the most popular because of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required. Deep Groove refers to the race (the groove where the balls rest). There is therefore a larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.
