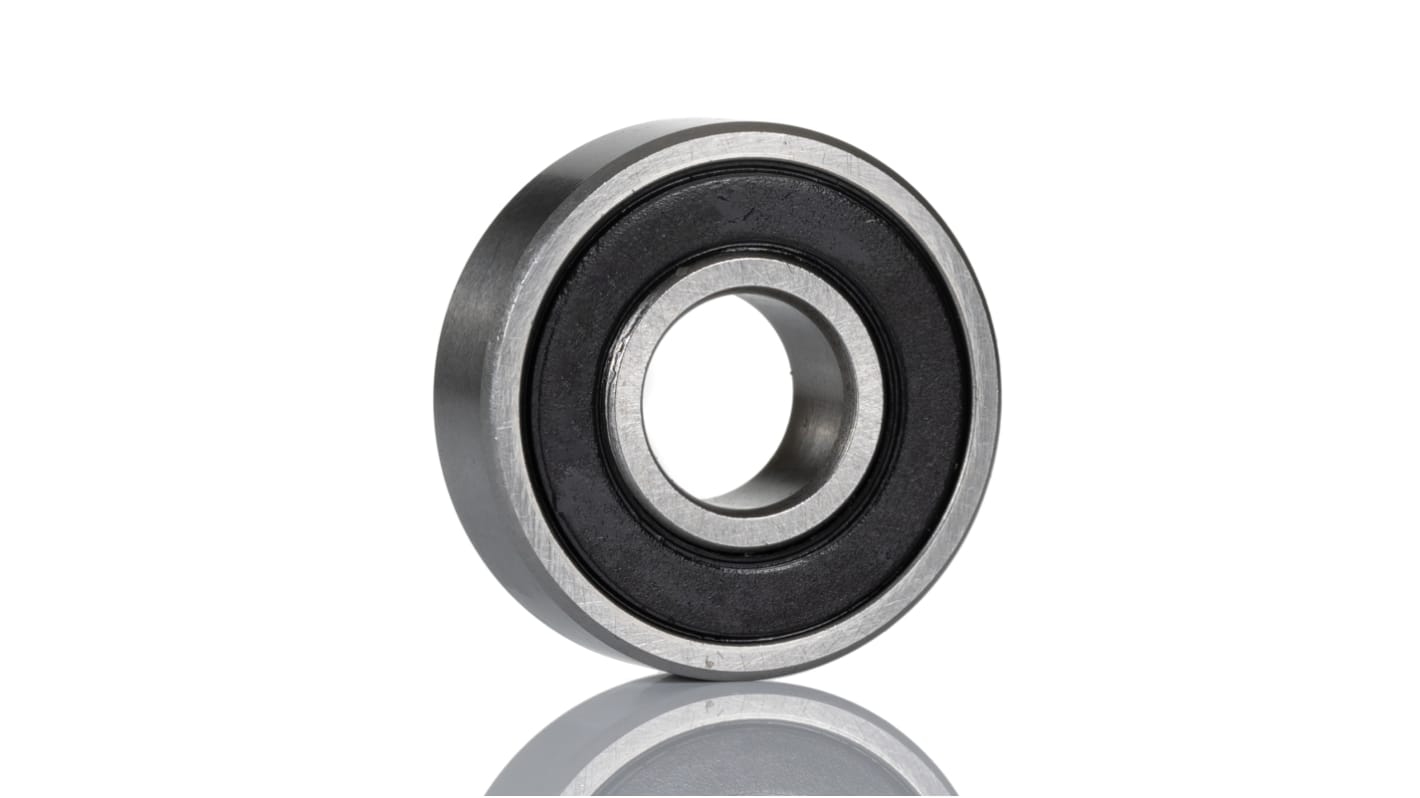

RS PRO 623-2RS 1 Row Ball Bearing - 3 mm ID, 10 mm OD 4 mm Race Width
- RS Stock No.:
- 618-9856
- Mfr. Part No.:
- 623-2RS
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£1.92
(exc. VAT)
£2.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 400 unit(s) shipping from 01 December 2025
- Plus 141 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £1.92 |
| 5 - 9 | £1.88 |
| 10 - 24 | £1.83 |
| 25 + | £1.79 |
*price indicative
- RS Stock No.:
- 618-9856
- Mfr. Part No.:
- 623-2RS
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 3 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 10 mm | |
| Race Width | 4mm | |
| Cage Material | Steel | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 219kN | |
| Dynamic Load Rating | 631N | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 52200rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 3 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 10 mm | ||
Race Width 4mm | ||
Cage Material Steel | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 219kN | ||
Dynamic Load Rating 631N | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 52200rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- CN
Small Pack Size: 618-9856
Large Pack Size: 261-2627
RS PRO Sealed Deep Groove Single Row Bearings
A range of RS PRO single row, deep groove ball bearings, offering versatility and overall high performance. RS PRO sealed ball bearings are fitted with two synthetic rubber seals to prevent dirt and other items entering the bearing. These ball bearings are primarily intended for use where the inner ring rotates.
Within this RS PRO range, we offer internal diameters from 3mm to 50mm. This huge variety of sizes will ensure that you find the perfect ball bearing for your application.
Features and Benefits
Important Note:
FAQs
Why Choose a Sealed Ball Bearing?
Sealed ball bearing offer reliability as they reduce the risk of dust and dirt entering the ball bearing mechanism. They also help to preserve the lubricant within the bearing and keep it running smoother, for longer.
Why Choose a Single Row Deep Groove Ball Bearing?
This type of ball bearing it often the most popular because of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required. “Deep Groove” refers to the race (the groove where the balls rest). There is therefore a larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.
