NSK 6802DD N Single Row Deep Groove Ball Bearing- Both Sides Sealed 15mm I.D, 24mm O.D
- RS Stock No.:
- 492-1872
- Mfr. Part No.:
- 6802DD N
- Brand:
- NSK

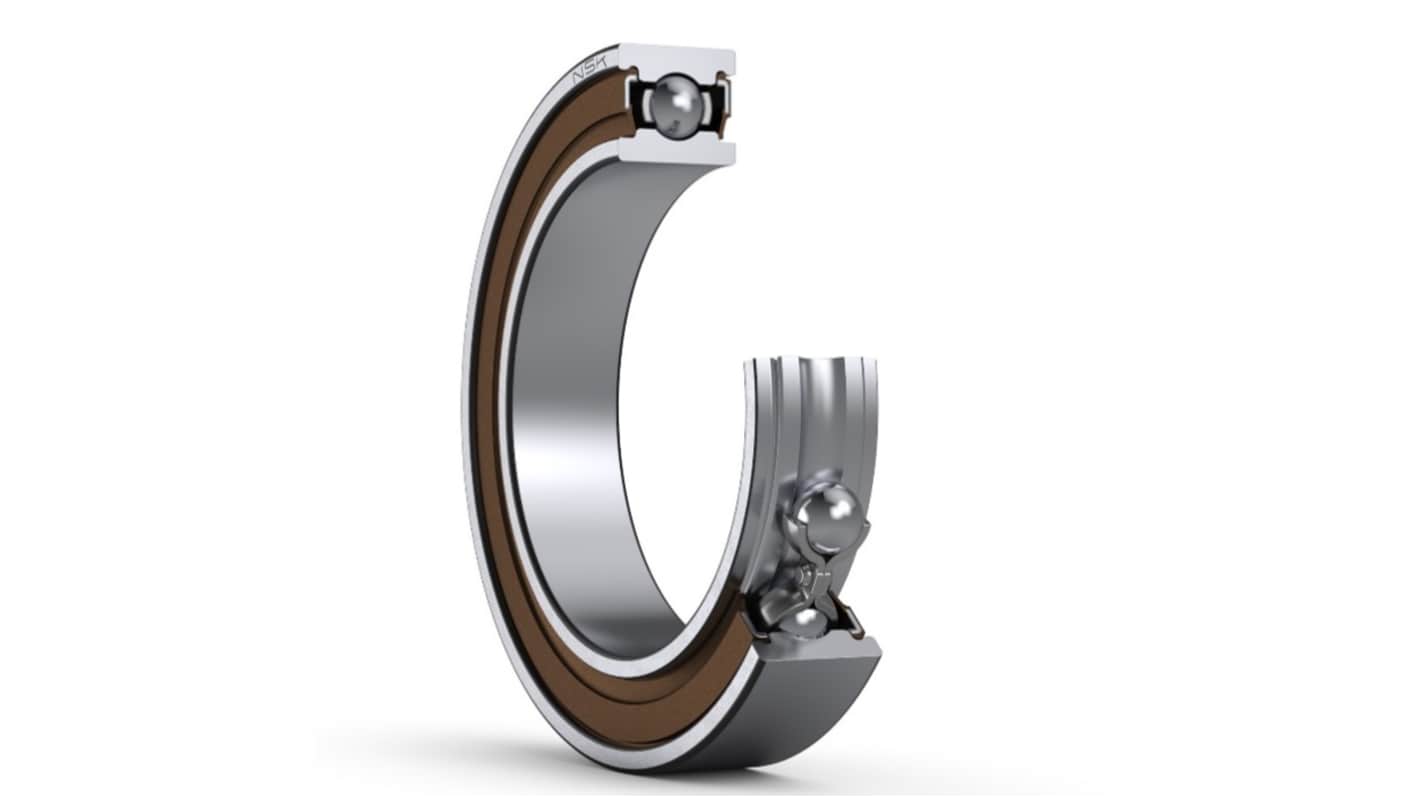

Image representative of range
Subtotal (1 unit)*
£13.11
(exc. VAT)
£15.73
(inc. VAT)
FREE delivery for orders over £50.00
- 15 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 - 4 | £13.11 |
5 - 9 | £12.59 |
10 - 24 | £12.31 |
25 + | £12.07 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£15.92
(exc. VAT)
£19.10
(inc. VAT)
- RS Stock No.:
- 492-1872
- Mfr. Part No.:
- 6802DD N
- Brand:
- NSK
Select all | Attribute | Value |
---|---|---|
Brand | NSK | |
Inside Diameter | 15mm | |
Outside Diameter | 24mm | |
Race Width | 5mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 1.26kN | |
Dynamic Load Rating | 2.07kN | |
Bore Type | Parallel | |
Bearing Series | 8 Extra Thin Section | |
Partial Bearing Code | 6802 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand NSK | ||
Inside Diameter 15mm | ||
Outside Diameter 24mm | ||
Race Width 5mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 1.26kN | ||
Dynamic Load Rating 2.07kN | ||
Bore Type Parallel | ||
Bearing Series 8 Extra Thin Section | ||
Partial Bearing Code 6802 | ||
Race Type Plain | ||
RoHS Status: Exempt
NSK Metric Ball Bearings - Sealed
Features and Benefits
2RS denotes bearing fitted with 2 synthetic rubber seals
DDU & DD denotes bearing fitted with 2 contact synthetic rubber seals
