SKF 51102 Thrust Ball Bearing- Open Type 15mm I.D, 28mm O.D
- RS Stock No.:
- 286-8482
- Mfr. Part No.:
- 51102
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£15.71
(exc. VAT)
£18.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 57 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £15.71 |
5 - 9 | £15.27 |
10 - 24 | £14.86 |
25 + | £14.45 |
*price indicative
- RS Stock No.:
- 286-8482
- Mfr. Part No.:
- 51102
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 28mm | |
Race Width | 9mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 18.3kN | |
Dynamic Load Rating | 10.6kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Partial Bearing Code | 51102 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 28mm | ||
Race Width 9mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 18.3kN | ||
Dynamic Load Rating 10.6kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Partial Bearing Code 51102 | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ

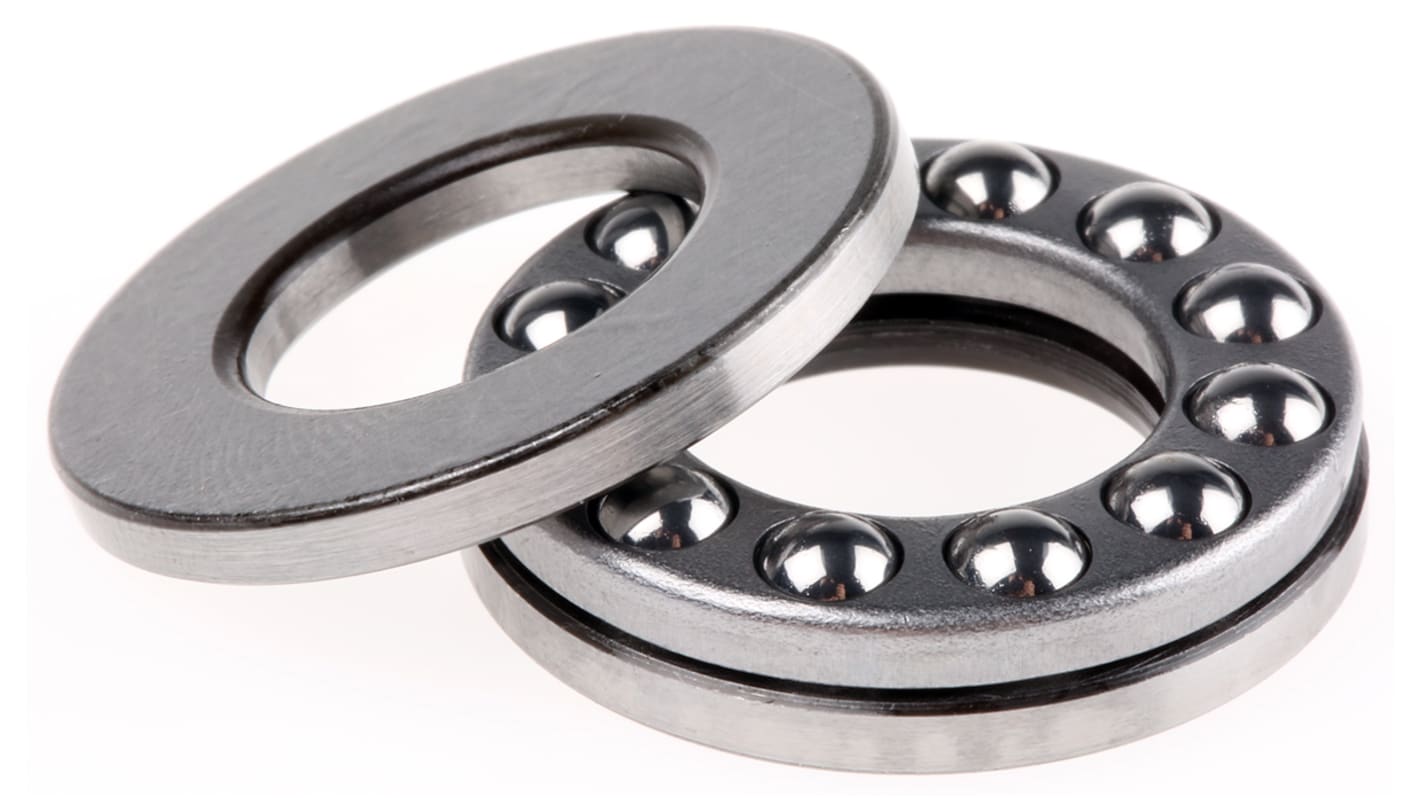

SKF Plain Thrust Ball Bearing, 15 mm ID - 51102
This thrust ball bearing from SKF is ideal for applications that experience heavy axial loads at low speeds. It's a vital component in tall rotating applications over 1.2-metres high. The component is specifically used to handle axial thrust loads in a single direction – it can't tolerate radial loads of any size. Constructed from high-strength steel, it's durable and offers good corrosion resistance. For easy maintenance, all of the parts in this bearing are separable and interchangeable.
• Steel balls with pressed steel bore
• Parallel cage construction
• Dynamic load rating of 9 kN
• Static load rating of 15 kN
• Inner diameter of 15 mm
• Outer diameter of 28 mm
• Single row
• Plain race type
• Race width of 9 mm
• Parallel cage construction
• Dynamic load rating of 9 kN
• Static load rating of 15 kN
• Inner diameter of 15 mm
• Outer diameter of 28 mm
• Single row
• Plain race type
• Race width of 9 mm
Application Information
• Agricultural industry
• Marine sector
• Automotive industry
• Marine sector
• Automotive industry
Do thrust bearings need to be lubricated?
Constant metal-to-metal contact produces large amounts of friction and stress. For safe use and to avoid costly secondary damage, thrust ball bearings need to be lubricated at all times.
What types of machines use thrust bearings?
Thrust ball bearings are typically used in low-speed applications where there are no centrifugal or radial loads. These include boat and ship propulsion, agricultural machinery and even fitness machines.
