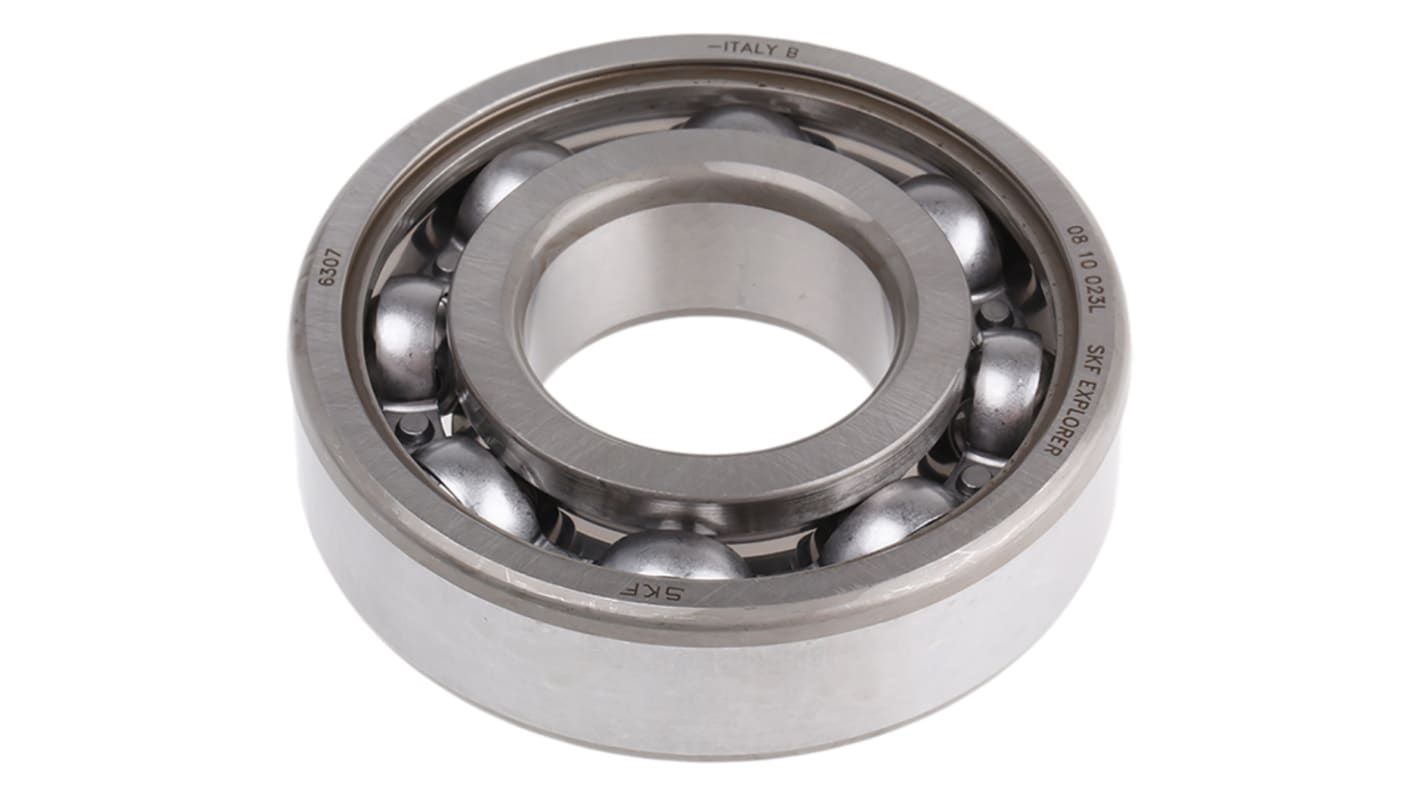

SKF 6307 Single Row Deep Groove Ball Bearing- Open Type 35mm I.D, 80mm O.D
- RS Stock No.:
- 285-1119
- Mfr. Part No.:
- 6307
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£14.62
(exc. VAT)
£17.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 39 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.62 |
5 - 9 | £14.03 |
10 - 24 | £13.74 |
25 + | £13.46 |
*price indicative
- RS Stock No.:
- 285-1119
- Mfr. Part No.:
- 6307
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 35mm | |
Outside Diameter | 80mm | |
Race Width | 21mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 19kN | |
Dynamic Load Rating | 35.1kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6307 | |
Race Type | Plain | |
Model Number p | 6307 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 35mm | ||
Outside Diameter 80mm | ||
Race Width 21mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 19kN | ||
Dynamic Load Rating 35.1kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6307 | ||
Race Type Plain | ||
Model Number p 6307 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
SKF Deep-Groove Ball Bearing, 35mm ID, 80mm OD - 6307
Need support between rotational shafts and stationary parts of your machinery? Use this deep-groove ball bearing from SKF to handle radial loads in your applications. With a cage made from steel material, this bearing is reliably durable and highly resistant to corrosion, so you can depend on it in heavy-duty environments where humidity is likely. It has a parallel bore to ensure it's less susceptible to shock loads and ensures smooth machinery operation. The unit has a limiting speed of 15,000rpm, making it the ideal choice for high-speed applications.
• Light weight of 0.456kg for easy handling and minimal strain on equipment
• Dynamic load rating of 35.1kN and static load rating of 19kN for safe use with heavy-duty equipment
• Single row type, needing little maintenance and offering an extended service life
• Plain race type for minimal friction and smooth machinery operation
• Dynamic load rating of 35.1kN and static load rating of 19kN for safe use with heavy-duty equipment
• Single row type, needing little maintenance and offering an extended service life
• Plain race type for minimal friction and smooth machinery operation
Applications
• Washing machines
• Combustion engines
• Weather vanes
• Combustion engines
• Weather vanes
Is this deep groove ball bearing heat-resistant?
This deep groove ball bearing is heat stabilised up to at least 120°C, meaning it has heat resistance and is ideal for use in harsh environments.
