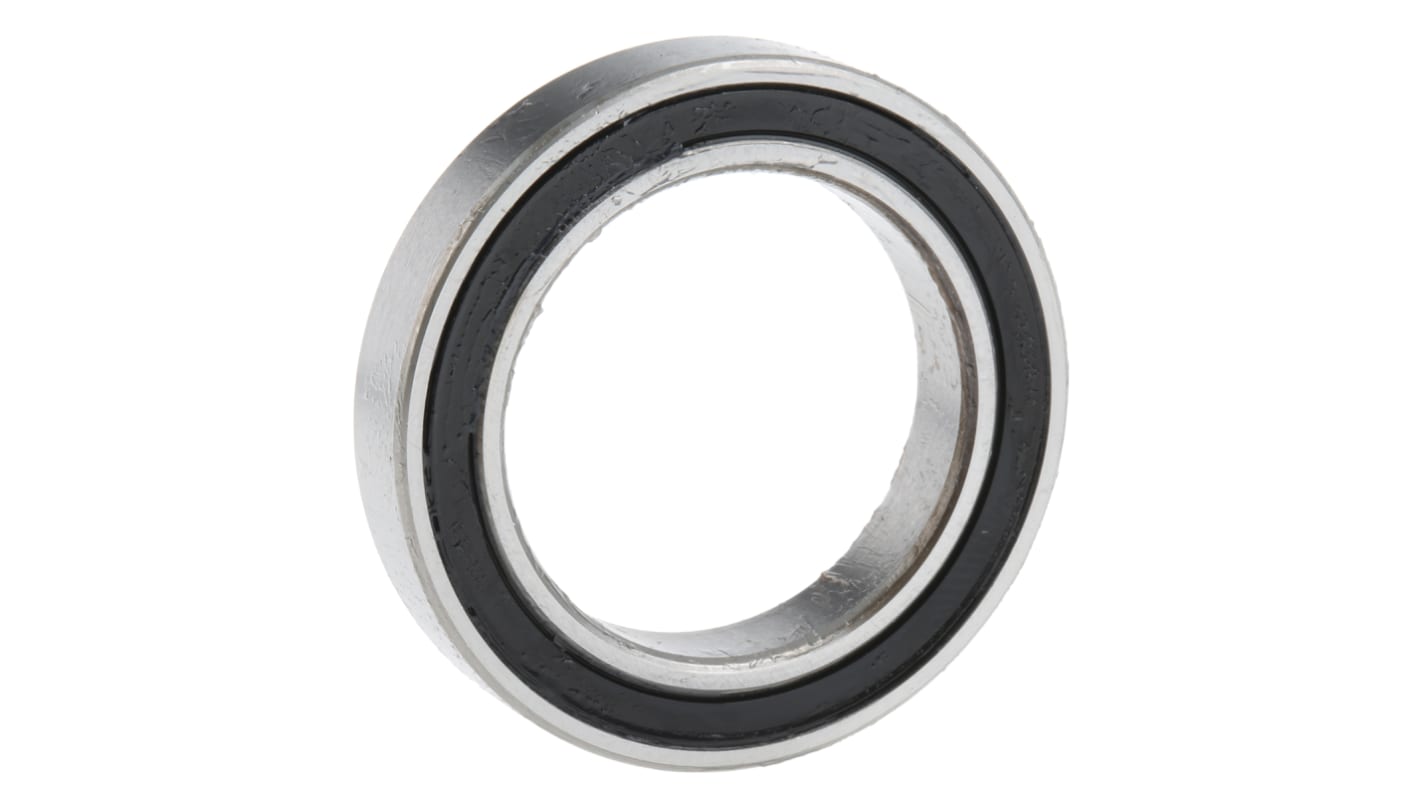

SKF 61805-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 37mm O.D
- RS Stock No.:
- 285-0611
- Mfr. Part No.:
- 61805-2RS1
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£21.62
(exc. VAT)
£25.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 72 unit(s) ready to ship
- Plus 86 unit(s) ready to ship from another location
- Plus 999,999,927 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £21.62 |
5 - 9 | £20.75 |
10 - 24 | £20.33 |
25 + | £19.89 |
*price indicative
- RS Stock No.:
- 285-0611
- Mfr. Part No.:
- 61805-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 37mm | |
Race Width | 7mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 2.6kN | |
Dynamic Load Rating | 4.36kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Type | Plain | |
Partial Bearing Code | 61805 | |
Model Number p | 618052RS | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 37mm | ||
Race Width 7mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 2.6kN | ||
Dynamic Load Rating 4.36kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 61805 | ||
Model Number p 618052RS | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
SKF Deep-groove Ball Bearing, Plain Race Type, 25 mm ID - 61805-2RS1
This steel ball bearing from SKF handles radial and axial loads as well as high rotational speeds. It's commonly used in equipment such as power tools and electrical motors. There's no need to worry about lubricating this bearing as it's greased for life. The seals on each end ensure reliable operation by preventing lubricant from leaking out, as well as stopping dirt and moisture from getting in. The component produces low friction, which protects it against overheating.
• Parallel bore type
• Dynamic load rating of 4.36 kN
• Static load rating of 2.6 kN
• Inside diameter of 25 mm
• Outside diameter of 37 mm
• Single row
• Plain race type
• Race width of 7 mm
• Dynamic load rating of 4.36 kN
• Static load rating of 2.6 kN
• Inside diameter of 25 mm
• Outside diameter of 37 mm
• Single row
• Plain race type
• Race width of 7 mm
Application Information
• Medical and pharmaceutical industries
• Paper milling
• Food and beverage production
• Industrial automation
• Paper milling
• Food and beverage production
• Industrial automation
What are the advantages of a deep-groove ball bearing?
A single-row deep-groove ball bearing such as this one is highly versatile, as it can handle different types of loads and supports high-speed operation. It's also easy to maintain thanks to its sealed-in lubrication.
