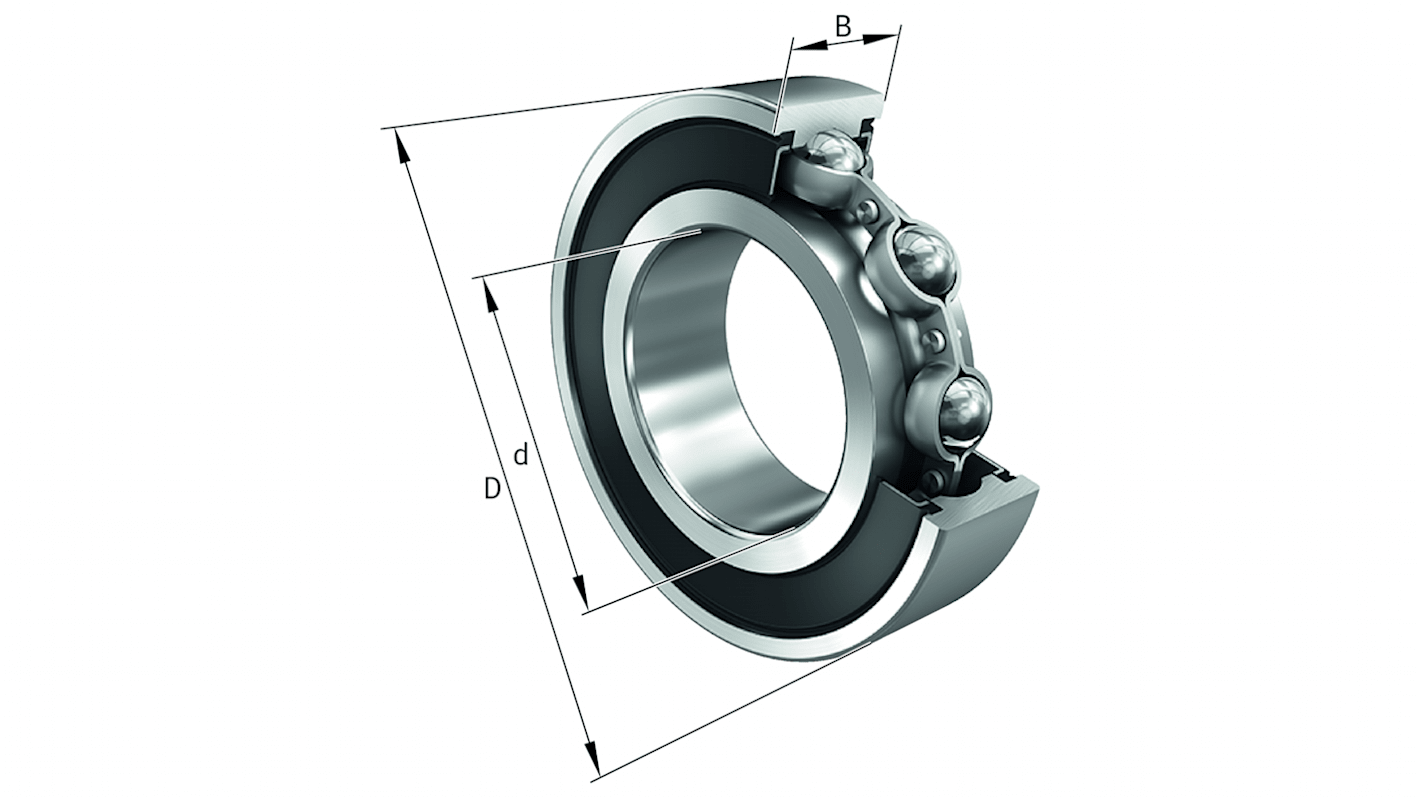

FAG S6010-2RSR-FD 1 Row Deep Groove Ball Bearing - 50 mm ID, 80 mm OD
- RS Stock No.:
- 279-2305
- Mfr. Part No.:
- S6010-2RSR-FD
- Brand:
- FAG
Subtotal (1 unit)*
£182.78
(exc. VAT)
£219.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £182.78 |
*price indicative
- RS Stock No.:
- 279-2305
- Mfr. Part No.:
- S6010-2RSR-FD
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 50 mm | |
| Outside Diameter | 80 mm | |
| Race Width | 16mm | |
| Race Material | Stainless Steel | |
| Cage Material | Steel Sheet Metal | |
| Ball Material | Stainless Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 13.3N | |
| Dynamic Load Rating | 18.5N | |
| Series | S60-2RS-FD | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Limiting Speed | 3200rpm | |
| Flange Outside Diameter | 80mm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 50 mm | ||
Outside Diameter 80 mm | ||
Race Width 16mm | ||
Race Material Stainless Steel | ||
Cage Material Steel Sheet Metal | ||
Ball Material Stainless Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 13.3N | ||
Dynamic Load Rating 18.5N | ||
Series S60-2RS-FD | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Limiting Speed 3200rpm | ||
Flange Outside Diameter 80mm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- JP
The FAG Deep groove ball bearings in FD design are optimised for use in the food industry. They correspond in their structure to single row standard deep groove ball bearings but are specially adapted in relation to suitable materials for the food industry and significantly higher corrosion and media resistance.
Highly effective contact seal
lubrication with food grade grease
Cages and balls made from high grade steel
