RS PRO 6005-2RS/C3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 25mm I.D, 47mm O.D
- RS Stock No.:
- 261-2595
- Mfr. Part No.:
- 6005-2RS/C3
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£24.74
(exc. VAT)
£29.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 10 October 2025
- Plus 20 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £4.948 | £24.74 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.20
(exc. VAT)
£6.24
(inc. VAT)
- RS Stock No.:
- 261-2595
- Mfr. Part No.:
- 6005-2RS/C3
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 25mm | |
| Outside Diameter | 47mm | |
| Race Width | 12mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Both Sides Sealed | |
| Bearing Clearance | C3 | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 6.55kN | |
| Dynamic Load Rating | 11.9kN | |
| Bore Type | Parallel | |
| Bearing Series | 0 Extra Light | |
| Race Material | Steel | |
| Partial Bearing Code | 6005 | |
| Race Type | Plain | |
| Bearing Reference Number | 6005-2RS/C3 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 25mm | ||
Outside Diameter 47mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Dynamic Load Rating 11.9kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Material Steel | ||
Partial Bearing Code 6005 | ||
Race Type Plain | ||
Bearing Reference Number 6005-2RS/C3 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN

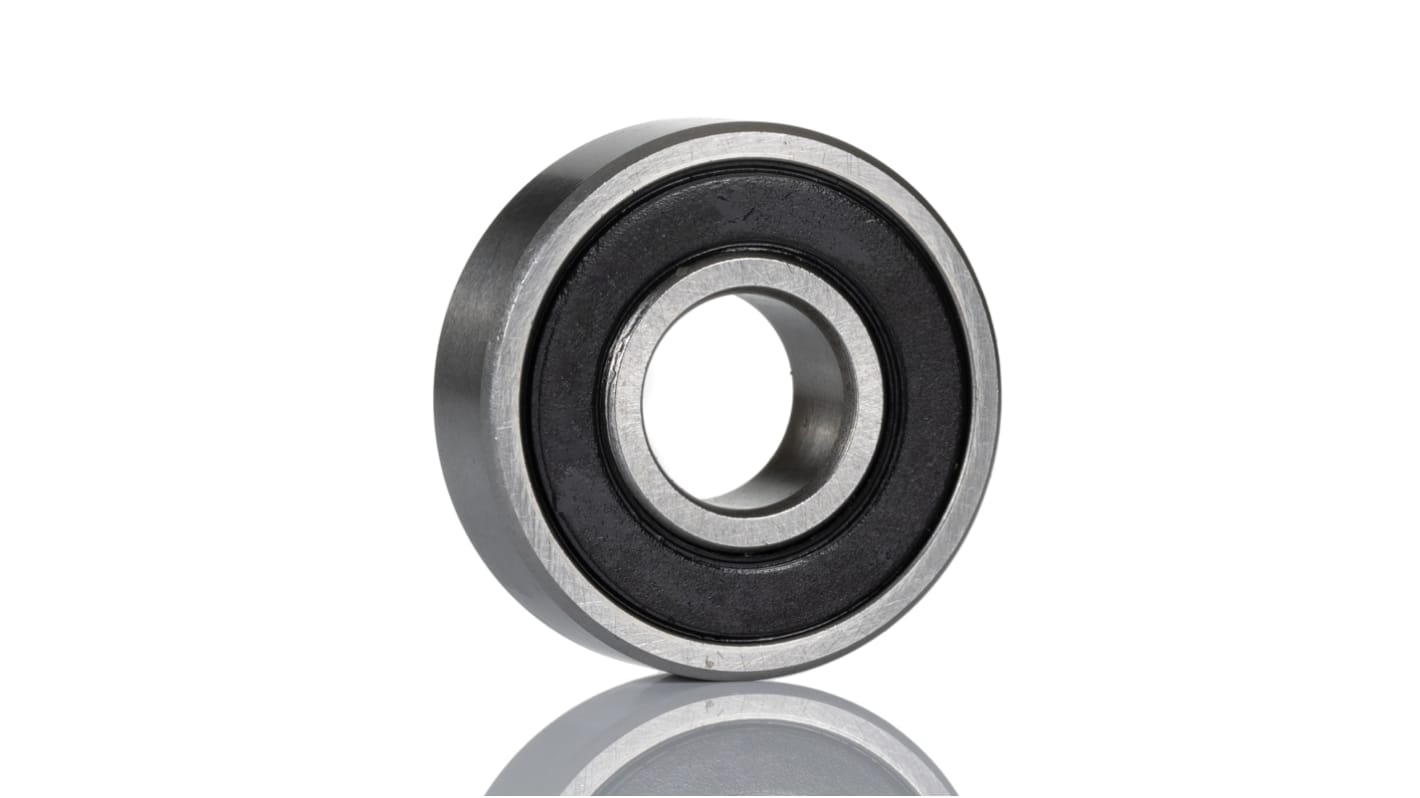

RS PRO Sealed Deep Groove Ball Bearing With C3 Clearance
The RS PRO 6005-2RS/C3 25X47X12mm single row, deep groove ball bearing, offers versatility and overall high performance. The sealed ball bearing is fitted with synthetic rubber seals to prevent dirt and other items entering the bearing. It is primarily intended for use where the inner ring rotates.
Other Information:
Why choose a sealed ball bearing?
sealed ball bearing offer reliability as they reduce the risk of dust and dirt entering the ball bearing mechanism. They also help to preserve the lubricant within the bearing and keep it running smoother, for longer.
Why choose a single row deep groove ball bearing?
This type of ball bearing is often the most popular because of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required.
“Deep Groove” refers to the race (the groove where the balls rest). There is, therefore, larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.
Features and Benefits
• Shielded
• Good radial load capacity
• Ideal for high speeds
• Long operating life
Applications
• Food and Beverage Industry
• Pharmaceutical
• Medical Industry
• Engines and Pumps
• Medical Industry
• Printing
Certifications
• EN certified
