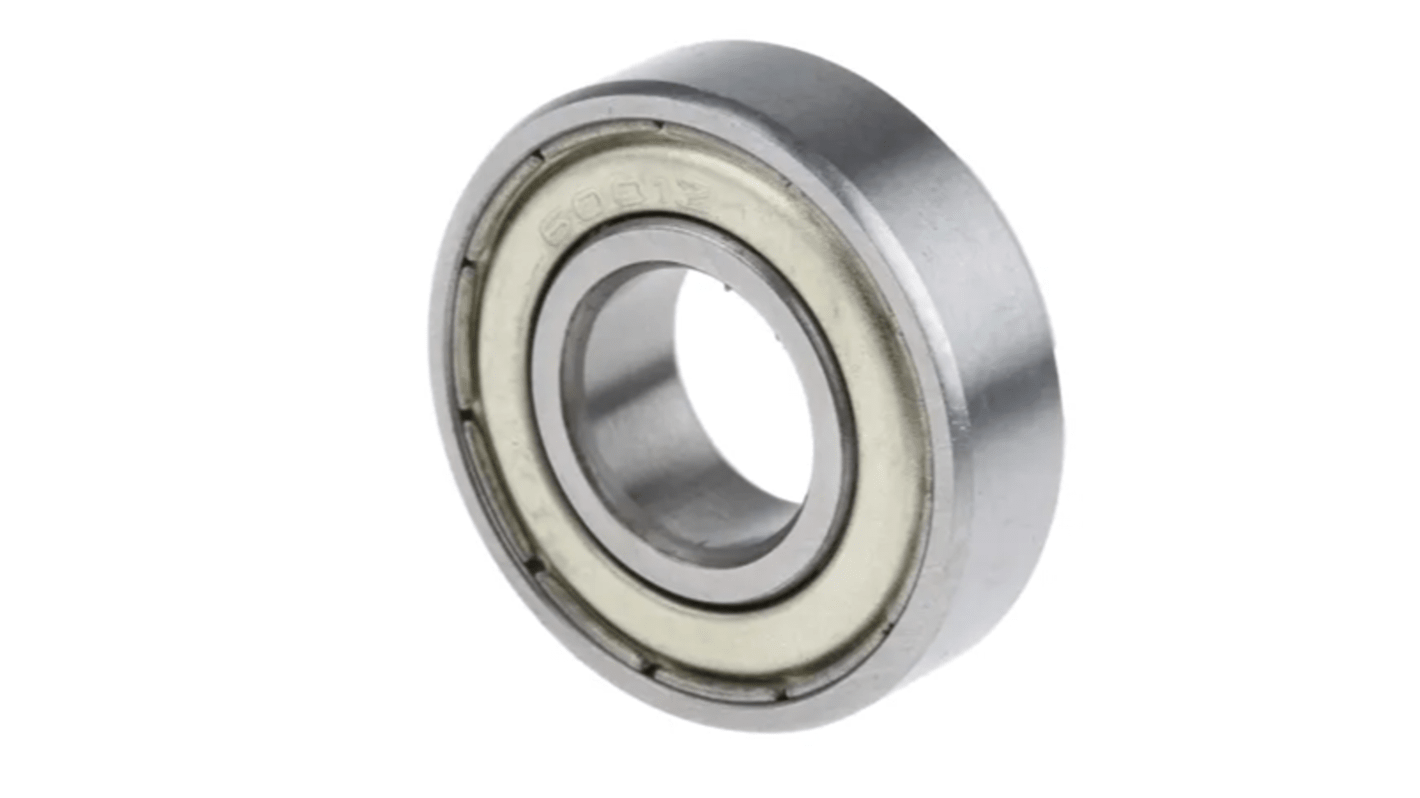

RS PRO 6001-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.D, 28mm O.D
- RS Stock No.:
- 261-2584
- Mfr. Part No.:
- 6001-2Z
- Brand:
- RS PRO
Subtotal (1 pack of 5 units)*
£9.55
(exc. VAT)
£11.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 340 unit(s) shipping from 02 October 2025
- Plus 100 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.91 | £9.55 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.01
(exc. VAT)
£2.41
(inc. VAT)
- RS Stock No.:
- 261-2584
- Mfr. Part No.:
- 6001-2Z
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 12mm | |
| Outside Diameter | 28mm | |
| Race Width | 8mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Both Sides Shielded | |
| Bearing Clearance | CN | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 2.151kN | |
| Dynamic Load Rating | 5.07kN | |
| Bore Type | Parallel | |
| Bearing Series | 0 Extra Light | |
| Race Type | Plain | |
| Race Material | Steel | |
| Partial Bearing Code | 6001 | |
| Bearing Reference Number | 6001-2Z | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 12mm | ||
Outside Diameter 28mm | ||
Race Width 8mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 2.151kN | ||
Dynamic Load Rating 5.07kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Race Material Steel | ||
Partial Bearing Code 6001 | ||
Bearing Reference Number 6001-2Z | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
RS PRO Metric Shielded Ball Bearings
RS PRO metric shielded ball bearings are a type of ball bearing that is used in a wide range of mechanical applications, such as motors, pumps, and conveyors. These bearings are designed to provide smooth and efficient rotation of shafts by reducing friction and wear between the moving parts. RS PRO metric shielded ball bearings are single row, fitted with two metal shields to prevent ingress of dirt, and foreign matter, plus accommodate radial loads and axial loads in both directions.
Features and Benefits
- Inner ring, outer ring, cage, and ball bearings
- Deep raceway grooves
- Shielded
- Steel material
- High performing under and high load capacity
- Intended for use where the inner ring rotates
Applications
- Food and Beverage Industry
- Pharmaceutical
- Medical industry
- Engines and Pumps
- Medical Industry
- Printing
FAQs
What are deep groove ball bearings?
These are the most popular type of bearings and consist of an inner ring, outer ring, cage and ball bearings. The bearings have deep raceway grooves. These types of bearings deliver high performance and high load capacity.
Why use shielded ball bearings?
Ball bearings that spin at high speeds require lubrication and a clean environment by having the ball bearings shielded this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.
These are the most popular type of bearings and consist of an inner ring, outer ring, cage and ball bearings. The bearings have deep raceway grooves. These types of bearings deliver high performance and high load capacity.
Why use shielded ball bearings?
Ball bearings that spin at high speeds require lubrication and a clean environment by having the ball bearings shielded this offers better protection against dirt and grease therefore the ball bearings have a longer lifespan.
