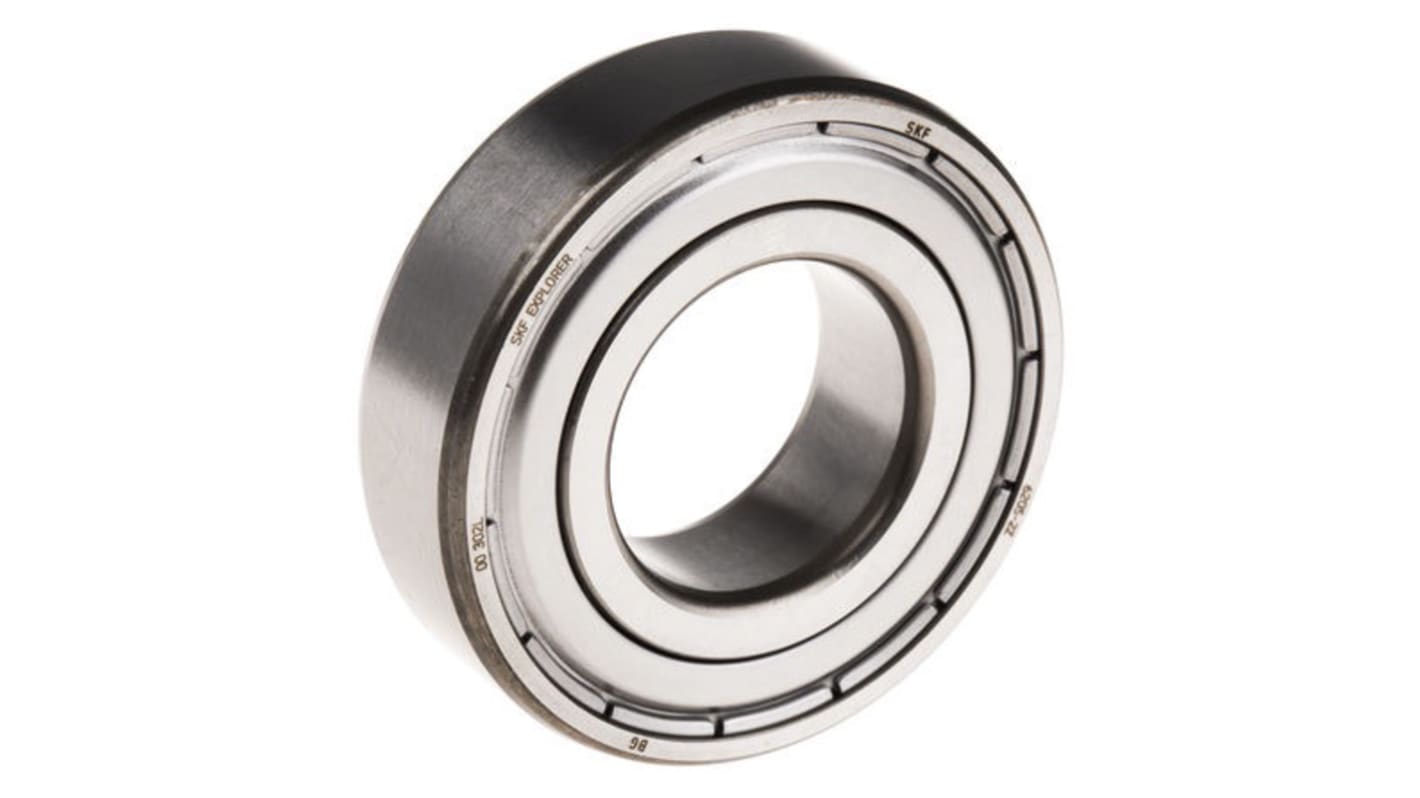

SKF 6001-2Z/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Shielded 12mm I.D, 28mm O.D
- RS Stock No.:
- 123-4808
- Mfr. Part No.:
- 6001-2Z/C3GJN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£10.39
(exc. VAT)
£12.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £10.39 |
5 - 9 | £9.99 |
10 - 24 | £9.75 |
25 + | £9.57 |
*price indicative
- RS Stock No.:
- 123-4808
- Mfr. Part No.:
- 6001-2Z/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 12mm | |
Outside Diameter | 28mm | |
Race Width | 8mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 2.36kN | |
Dynamic Load Rating | 5.4kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Partial Bearing Code | 6001 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 12mm | ||
Outside Diameter 28mm | ||
Race Width 8mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 2.36kN | ||
Dynamic Load Rating 5.4kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Partial Bearing Code 6001 | ||
- COO (Country of Origin):
- IT
SKF Plain Deep Groove Ball Bearing, 12 mm ID - 6001-2Z/C3GJN
This deep groove ball bearing from SKF can manage both radial and axial loads, making it a versatile choice. It comes pre-lubricated, meaning no additional greasing is needed during operation. This makes it low maintenance and suited for use in areas that are difficult to access. The unit can tolerate tough conditions at temperatures between -30°C and +150°C. It offers precise performance at very high speeds thanks to its ceramic rolling elements, which provide good static stiffness.
• Parallel bore type
• Dynamic load rating of 5.4 kN
• Static load rating of 2.4 kN
• Shielded end type
• Inner diameter of 12 mm
• Outer diameter of 28 mm
• Cage material of steel
• Ball material of ceramic
• One row
• Plain race type
• Race width of 8 mm
• Dynamic load rating of 5.4 kN
• Static load rating of 2.4 kN
• Shielded end type
• Inner diameter of 12 mm
• Outer diameter of 28 mm
• Cage material of steel
• Ball material of ceramic
• One row
• Plain race type
• Race width of 8 mm
Application Information
• Medical and pharmaceutical manufacturing
• Food processing
• Materials handling
• Printing industry
• Wind energy
• Food processing
• Materials handling
• Printing industry
• Wind energy
What's the advantage of using a low-friction ball bearing?
This low-friction ball bearing from SKF offers low operation noise and generates less heat than alternatives, which increases its service life. Its low operating temperature also makes it more energy efficient as it requires less power to operate.
