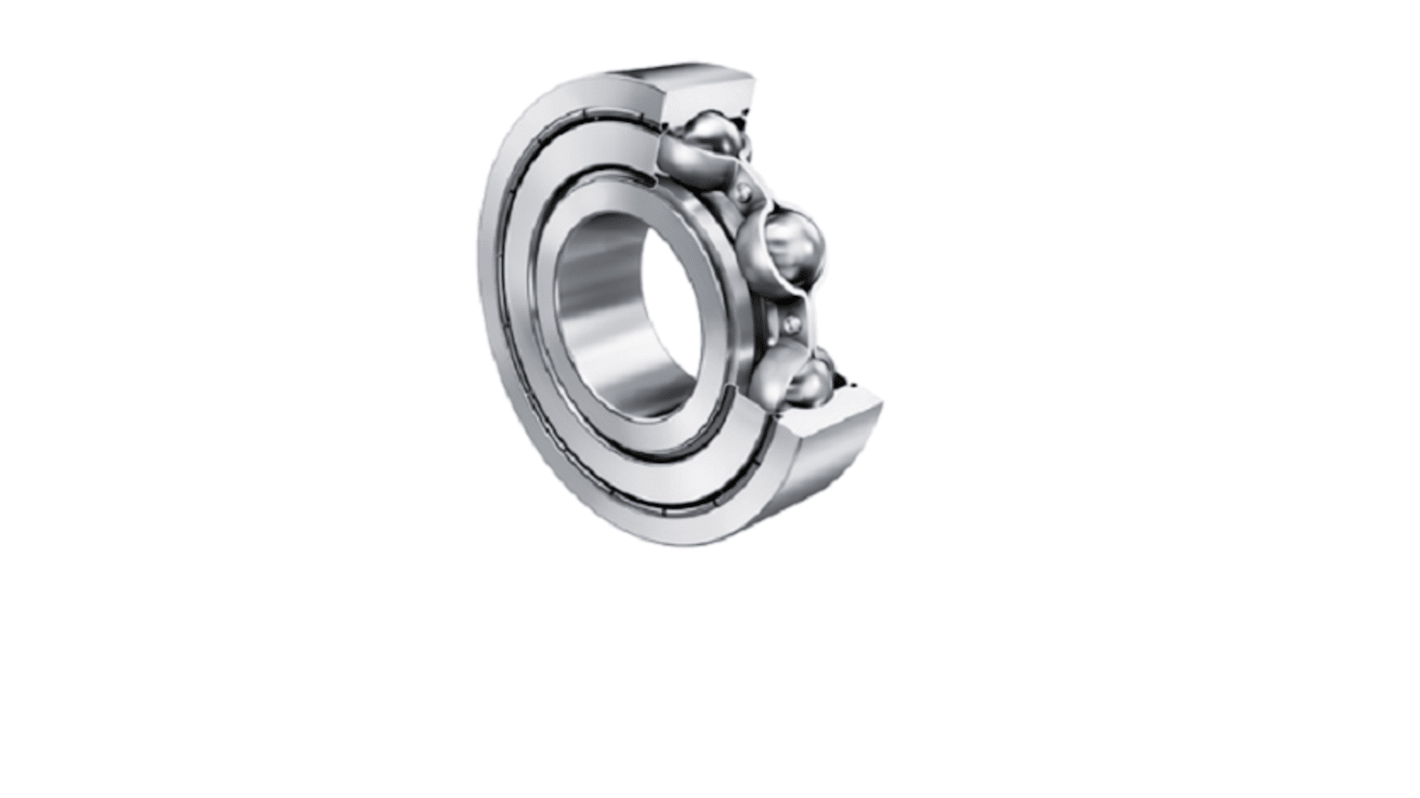

FAG 6001-C-2Z-C3 1 Row Ball Bearing - 12 mm ID, 28 mm OD
- RS Stock No.:
- 260-0709
- Mfr. Part No.:
- 6001-C-2Z-C3
- Brand:
- FAG
Subtotal (1 pack of 10 units)*
£43.19
(exc. VAT)
£51.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £4.319 | £43.19 |
*price indicative
- RS Stock No.:
- 260-0709
- Mfr. Part No.:
- 6001-C-2Z-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 12mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 28mm | |
| Race Width | 8mm | |
| Cage Material | Steel | |
| Race Material | Bearing Steel | |
| Ball Material | Steel | |
| End Type | Double Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 2.37kN | |
| Dynamic Load Rating | 5.9kN | |
| Standards/Approvals | No | |
| Series | 6001-C-2Z-C3 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 36000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Groove | |
| Flange Outside Diameter | 28mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 12mm | ||
Product Type Ball Bearing | ||
Outside Diameter 28mm | ||
Race Width 8mm | ||
Cage Material Steel | ||
Race Material Bearing Steel | ||
Ball Material Steel | ||
End Type Double Shielded | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 2.37kN | ||
Dynamic Load Rating 5.9kN | ||
Standards/Approvals No | ||
Series 6001-C-2Z-C3 | ||
Bore Type Cylindrical | ||
Limiting Speed 36000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Groove | ||
Flange Outside Diameter 28mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PT
Schaeffler 6001-C-2Z-C3 Series Ball Bearing, 12mm Bore Diameter, 28mm Outside Diameter - 6001-C-2Z-C3
This ball bearing is a single-row deep-groove unit designed to support radial loads and moderate axial forces in rotating assemblies. It uses steel rolling elements and rings with a steel cage, and is intended for applications requiring sealed protection and elevated running speeds.
Features and Benefits:
• Double shielding reduces contamination ingress and maintenance frequency
• C3 internal clearance compensates for thermal expansion during operation
• Dynamic capacity of 5.9 kN supports sustained operational loads
• Static rating of 2.37 kN ensures secure positioning under standstill loads
• Limiting speed of 36,000 r/min enables high-speed rotational applications
• Steel cage offers dimensional stability and wear resistance
• C3 internal clearance compensates for thermal expansion during operation
• Dynamic capacity of 5.9 kN supports sustained operational loads
• Static rating of 2.37 kN ensures secure positioning under standstill loads
• Limiting speed of 36,000 r/min enables high-speed rotational applications
• Steel cage offers dimensional stability and wear resistance
Applications
• Suitable for Compact electric motor spindles
• Used with precision gearboxes in light machinery
• Ideal for high-speed fans and blowers
• Can be used for rotary instruments and small turbines
• Used for conveyors with continuous rotational duty
• Used with precision gearboxes in light machinery
• Ideal for high-speed fans and blowers
• Can be used for rotary instruments and small turbines
• Used for conveyors with continuous rotational duty
What sealing arrangement prevents particle ingress?
It features metal shields on both sides that limit contamination while allowing lubrication retention.
How does internal clearance affect mounting options?
The increased internal clearance provides tolerance for shaft expansion and misalignment during high-temperature or high-speed operation.
What materials compose the rolling surfaces and cage?
The raceways and balls are MADE from bearing-grade steel while the cage is fabricated from steel for stability.
What shaft bore size is required for installation?
The component fits a 12 mm cylindrical shaft bore.
What external envelope must the housing accommodate?
The outer ring requires clearance for a 28 mm outside diameter and a 28 mm flange outside diameter.
