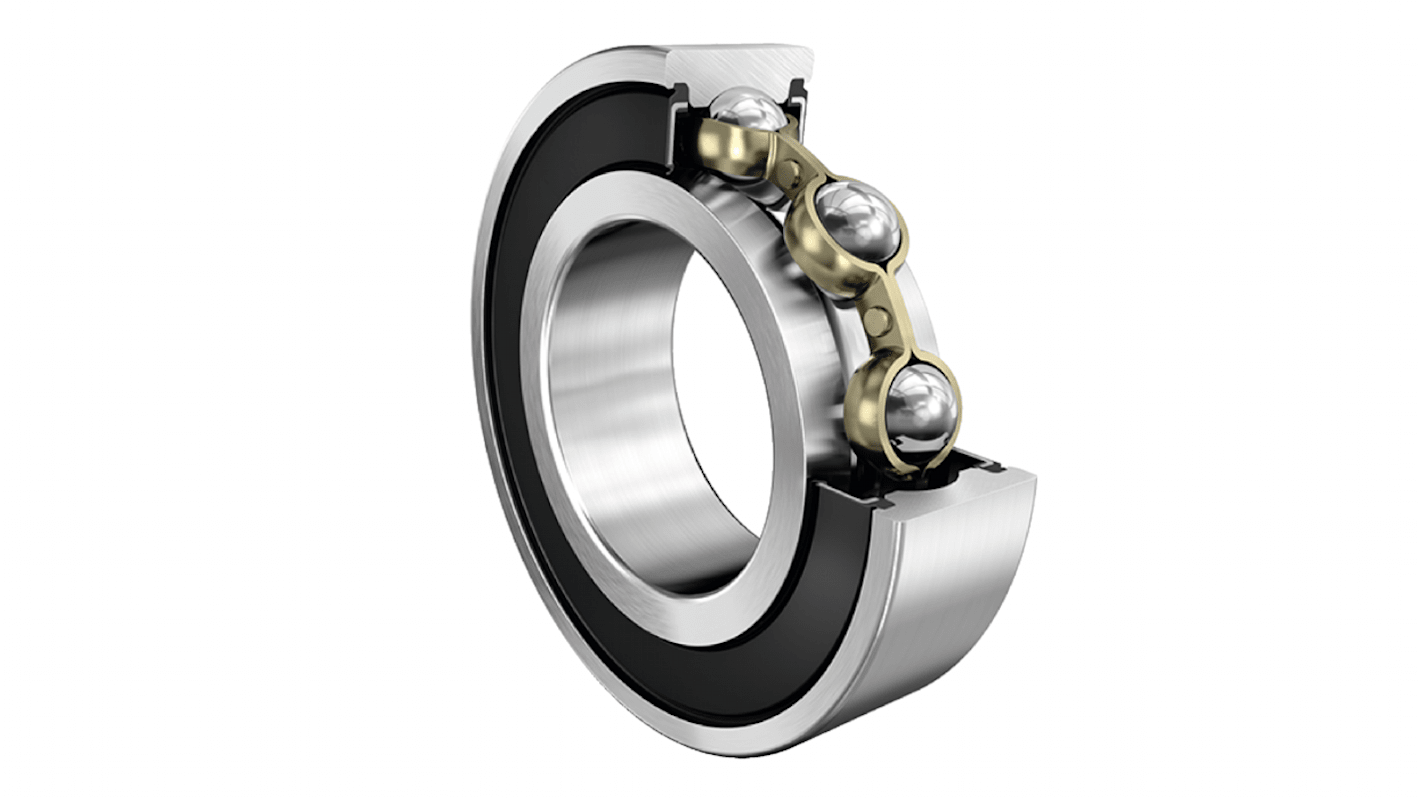

FAG 61815-2RZ-Y Single Row Deep Groove Ball Bearing- Non Contact Seals On Both Sides 75mm I.D, 95mm O.D
- RS Stock No.:
- 260-0821
- Mfr. Part No.:
- 61815-2RZ-Y
- Brand:
- FAG
9 In stock - FREE next working day delivery available
Price Each
£84.86
(exc. VAT)
£101.83
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £84.86 |
- RS Stock No.:
- 260-0821
- Mfr. Part No.:
- 61815-2RZ-Y
- Brand:
- FAG
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- SK
Product Details
The FAG deep groove ball bearing has 75 mm bore diameter and 10 mm width with 16.1 calculation factor.
Operating temperature -20 to 100 °C
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 75mm |
| Outside Diameter | 95mm |
| Race Width | 10mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Non Contact Seals On Both Sides |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Number of Rows | 1 |
| Static Load Rating | 13.4kN |
| Dynamic Load Rating | 13.7kN |
| Bore Type | Parallel |
| Bearing Series | 1 Extra Light Thrust |
| Partial Bearing Code | 61815 |
| Race Type | Plain |
