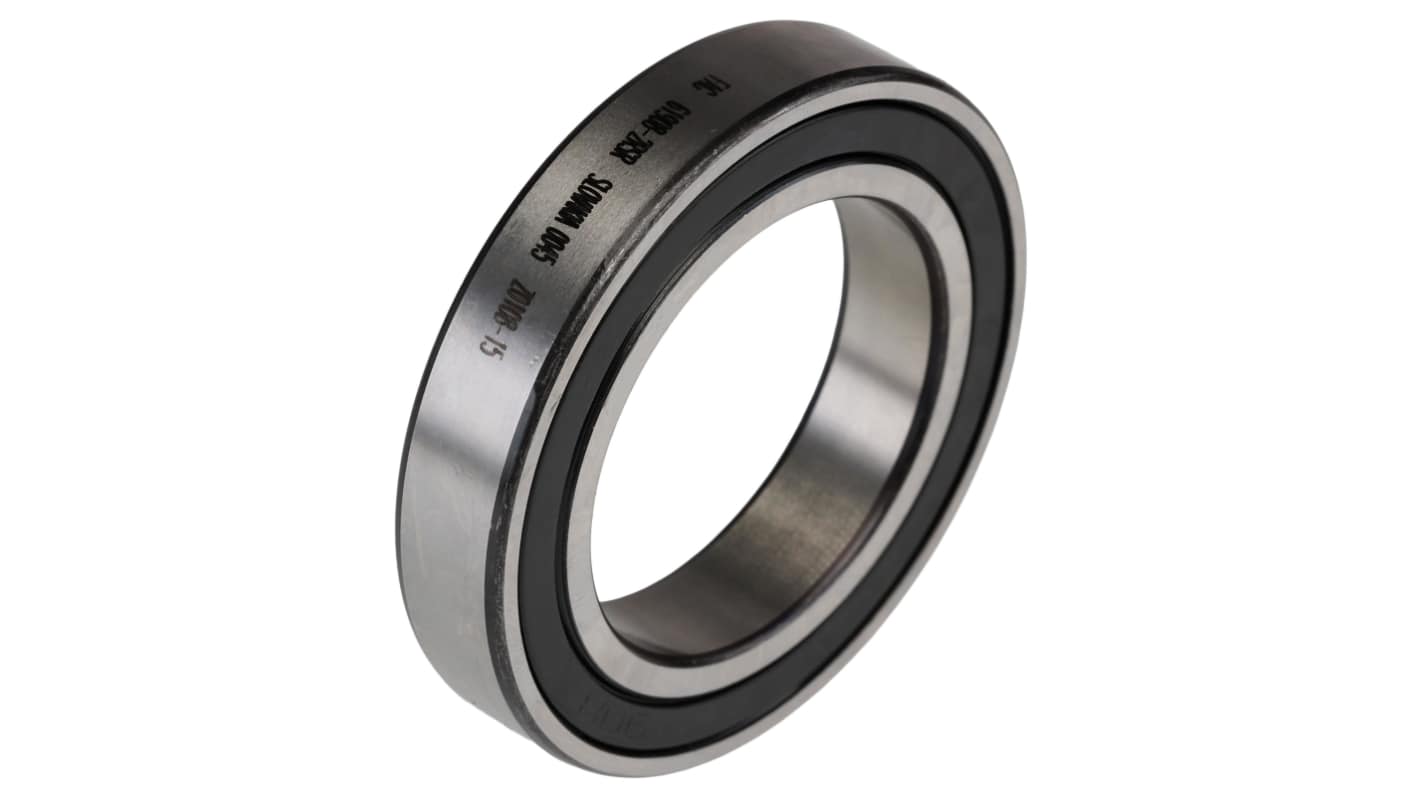

FAG 61908-2RSR Single Row Deep Groove Ball Bearing- Both Sides Sealed 40mm I.D, 62mm O.D
- RS Stock No.:
- 260-0813
- Mfr. Part No.:
- 61908-2RSR
- Brand:
- FAG
Subtotal (1 unit)*
£42.73
(exc. VAT)
£51.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.73 |
*price indicative
- RS Stock No.:
- 260-0813
- Mfr. Part No.:
- 61908-2RSR
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 40mm | |
Outside Diameter | 62mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 9.9kN | |
Dynamic Load Rating | 14.5kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Race Type | Plain | |
Partial Bearing Code | 61908 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 40mm | ||
Outside Diameter 62mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 9.9kN | ||
Dynamic Load Rating 14.5kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 61908 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SK
Schaeffler Deep Groove Ball Bearing, 40mm Inside Diameter, 62mm Outside Diameter - 61908-2RSR
This deep groove ball bearing is designed for high performance, reliability, and versatility in various applications. With dimensions of 40mm for the inside diameter and 62mm for the outside diameter, this single-row deep groove bearing features a steel sheet metal cage and is sealed on both sides.
Features & Benefits
• Sealing arrangement ensures protection against contaminants
• Steel construction enhances strength and longevity
• Limiting speed of 5,700 r/min optimises performance
• Supports a temperature range from -30°C to 100°C
• Steel construction enhances strength and longevity
• Limiting speed of 5,700 r/min optimises performance
• Supports a temperature range from -30°C to 100°C
Applications
• Used in machinery for automation and control systems
• Applicable in electrical motors requiring high load capacity
• Suitable for use in compact design rotating equipment
• Ideal for mechanical assemblies in industrial environments
• Applicable in electrical motors requiring high load capacity
• Suitable for use in compact design rotating equipment
• Ideal for mechanical assemblies in industrial environments
What is the benefit of using a sealed design for this bearing?
The sealed design prevents dirt and contaminants from entering the bearing, which significantly enhances its lifespan and ensures reliable operation in demanding environments.
How does the metal cage material contribute to overall performance?
The steel sheet metal cage offers excellent strength and stability, permitting high speeds and contributing to the bearing's ability to handle radial loads effectively.
What load ratings can be expected from this design?
It features a basic dynamic load rating of 14.5 kN and a static load rating of 9.9 kN, making it suitable for high-load applications without compromising performance.
