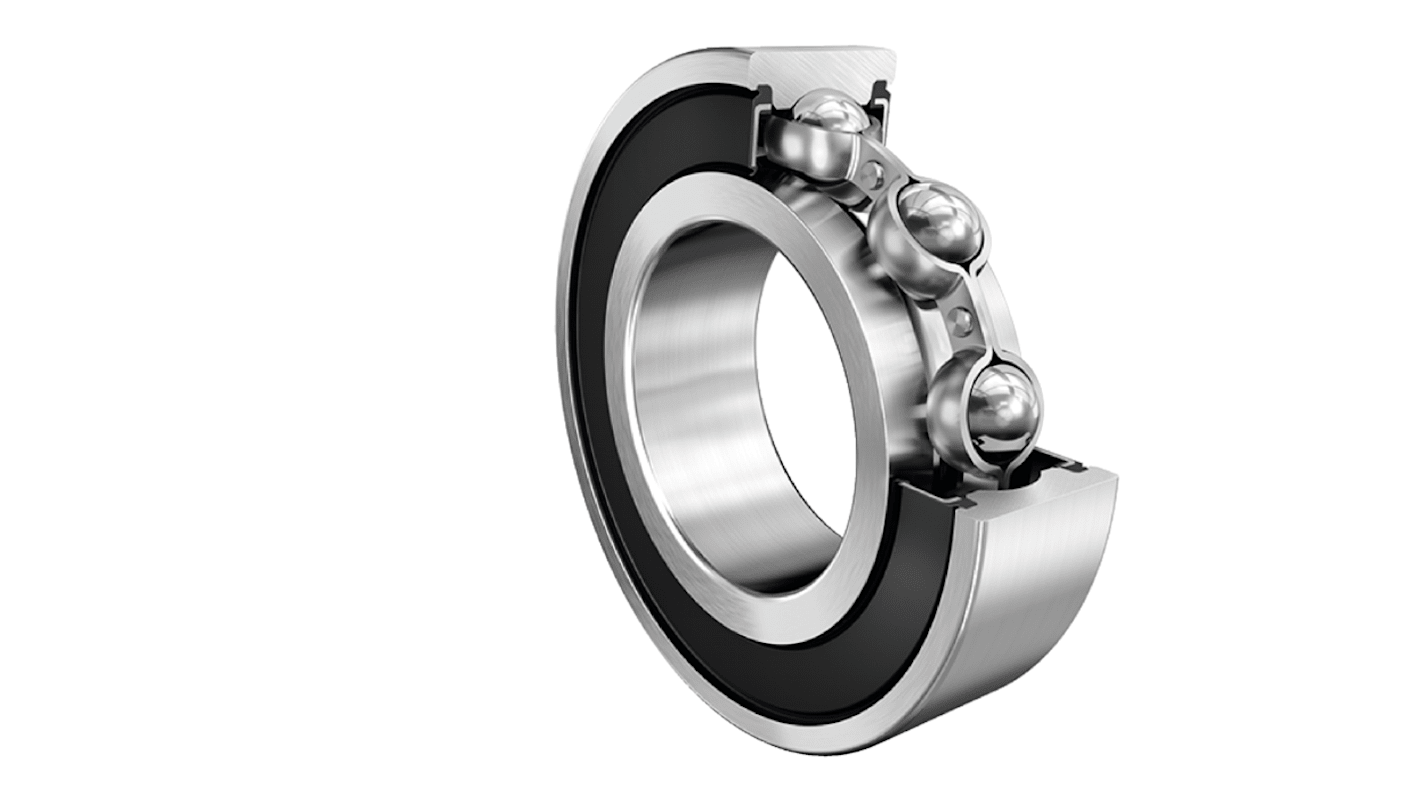

FAG 63004-A-2RSR Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 42mm O.D

View all Ball Bearings

Subtotal (1 unit)*

£18.43

(exc. VAT)

£22.12

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£18.43

*price indicative

RS Stock No.:
260-0724
Mfr. Part No.:
63004-A-2RSR
Brand:
FAG
Find similar products by selecting one or more attributes.
Select all

Brand

FAG

Inside Diameter

20mm

Outside Diameter

42mm

Race Width

16mm

Ball Bearing Type

Single Row Deep Groove Ball Bearing

Sealing Arrangement

Both Sides Sealed

Bearing Clearance

CN

Material

Steel

Ball Material

Steel

Cage Material

Steel

Number of Rows

1

Static Load Rating

5.03kN

Dynamic Load Rating

9.38kN

Bore Type

Parallel

Bearing Series

3 Medium

Partial Bearing Code

63004

Race Type

Plain

RoHS Status: Exempt

COO (Country of Origin):
TR
The FAG deep groove ball bearing has 20 mm bore diameter and 16 mm width with 13.9 calculation factor.

Operating temperature -20 to 100 °C
