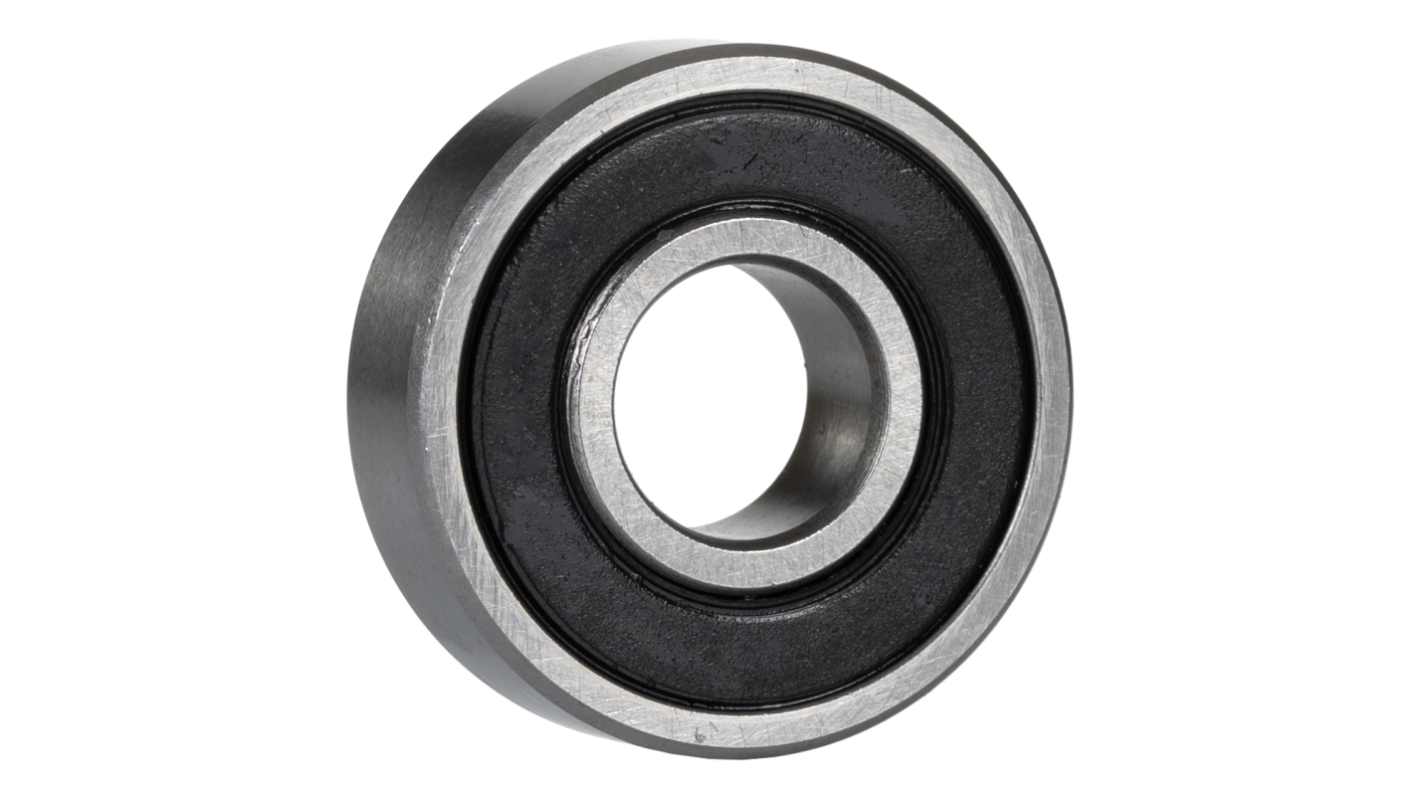

FAG 62200-A-2RSR Single Row Deep Groove Ball Bearing- Both Sides Sealed 10mm I.D, 30mm O.D
- RS Stock No.:
- 260-0714
- Mfr. Part No.:
- 62200-A-2RSR
- Brand:
- FAG
Subtotal (1 unit)*
£13.25
(exc. VAT)
£15.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 13 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £13.25 |
*price indicative
- RS Stock No.:
- 260-0714
- Mfr. Part No.:
- 62200-A-2RSR
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 10mm | |
Outside Diameter | 30mm | |
Race Width | 14mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Steel | |
Number of Rows | 1 | |
Static Load Rating | 2600N | |
Dynamic Load Rating | 6200N | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 62200 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 10mm | ||
Outside Diameter 30mm | ||
Race Width 14mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Static Load Rating 2600N | ||
Dynamic Load Rating 6200N | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 62200 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TR
Schaeffler Deep Groove Ball Bearing, 10mm Inside Diameter, 30mm Outside Diameter - 62200-A-2RSR
This deep groove ball bearing is designed for versatility and durability in various applications. With an inside diameter of 10mm and an outside diameter of 30mm, it combines compact dimensions with robust performance. This single row deep groove design ensures efficient operation across a wide range of loads, making it a reliable choice for industrial use.
Features & Benefits
• Both sides sealed to protect against contaminants
• Steel sheet metal cage enhances structural integrity
• Designed with a CN clearance for optimal performance
• Limiting speed of 16,700 rpm suitable for high-speed operations
• Steel sheet metal cage enhances structural integrity
• Designed with a CN clearance for optimal performance
• Limiting speed of 16,700 rpm suitable for high-speed operations
Applications
• Used with automation equipment for smooth motion
• Ideal for mechanical systems requiring high load handling
• Can be used in electronic devices needing compact bearings
• Utilised in electrical machinery to reduce friction
• Suitable for various industrial in demanding environments
• Ideal for mechanical systems requiring high load handling
• Can be used in electronic devices needing compact bearings
• Utilised in electrical machinery to reduce friction
• Suitable for various industrial in demanding environments
What are the implications of the sealing arrangement?
The sealing arrangement on both sides effectively prevents contaminants from entering the bearing, thereby enhancing longevity and reducing maintenance requirements in high-dust or fluid-prone environments.
What load ratings should be considered for design calculations?
A static load rating of 2630N and a dynamic load rating of 6200N should be considered to ensure the bearing operates safely and efficiently within the specified limits for the intended application.
How do operating temperatures affect performance?
An operating temperature range of -20°C to 100°C allows for reliable functioning in diverse conditions, making it suitable for both cold and elevated temperatures often encountered in industrial settings.
What aspects enhance the bearing's performance in high-speed applications?
The design features, including a low friction steel sheet metal cage and a high limiting speed of 16,700 rpm, contribute to effective performance in applications requiring rapid motion while minimising energy loss.
