FAG S6001-2RSR-HLC 1 Row Ball Bearing - 12 mm ID, 28 mm OD

View all Ball Bearings

Subtotal (1 pack of 10 units)*

£160.03

(exc. VAT)

£192.04

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
Per Pack*
10 +£16.003£160.03

*price indicative

RS Stock No.:
260-0678
Mfr. Part No.:
S6001-2RSR-HLC
Brand:
FAG
Find similar products by selecting one or more attributes.
Select all

Brand

FAG

Product Type

Ball Bearing

Inside Diameter

12mm

Outside Diameter

28mm

Race Width

8mm

Ball Material

Stainless Steel

Cage Material

Steel Sheet Metal

End Type

Closed

Number of Rows

1

Internal Clearance

CN

Static Load Rating

1.91kN

Dynamic Load Rating

4.35kN

Standards/Approvals

No

Bore Type

Parallel

Series

S60-2RSR

Limiting Speed

15700rpm

Bearing Type

Single Row Deep Groove Ball

Race Type

Plain

RoHS Status: Exempt

COO (Country of Origin):
CN

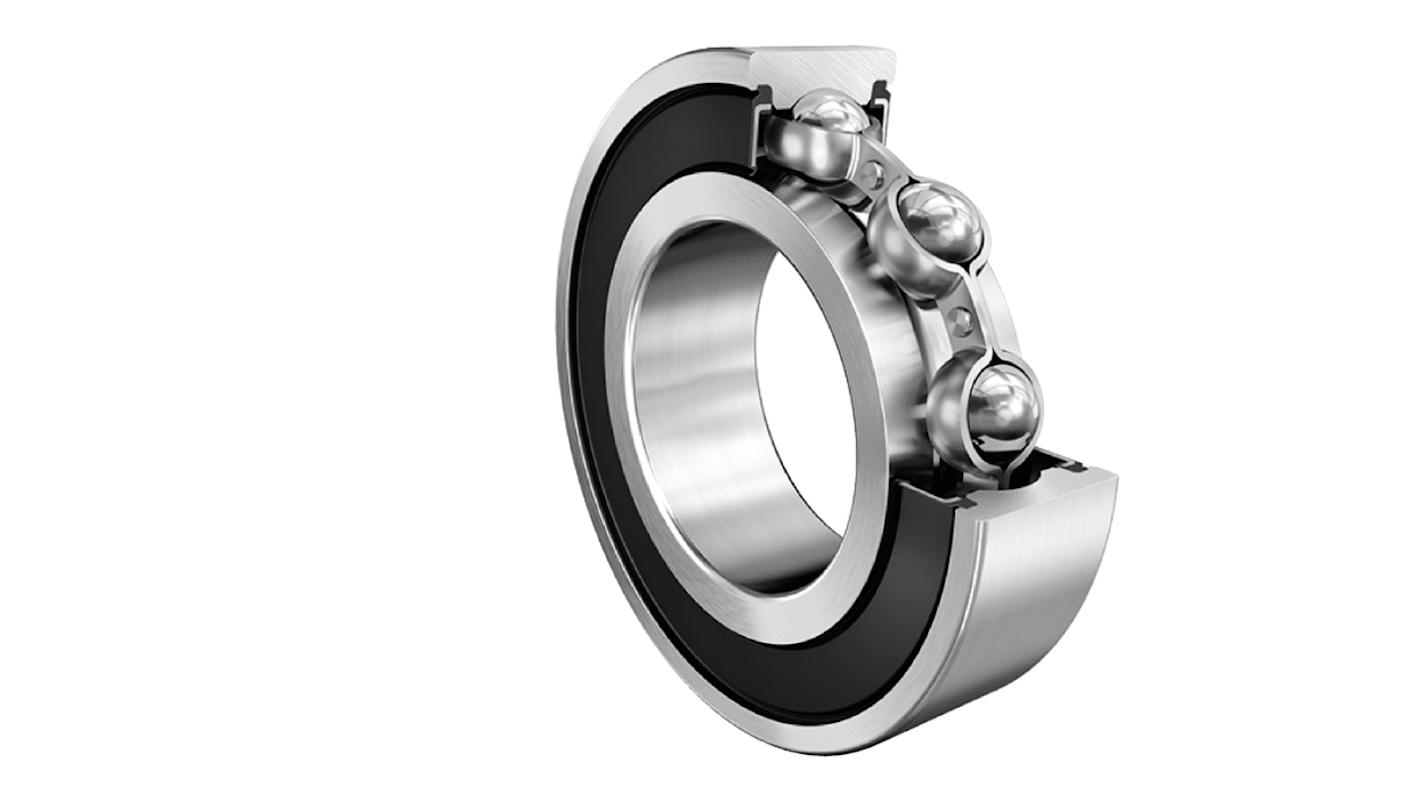

SCHAEFFLER Deep Groove Ball Bearing, 12mm Inside Diameter, 28mm Outside Diameter - S6001-2RSR-HLC


This deep groove ball bearing is designed for high versatility and reliability in mechanical applications. With an inside diameter of 12mm and an outside diameter of 28mm, it proves effective for space-constrained situations. This single row deep groove ball bearing features Seals on both sides, making it suitable for protection against contaminants, thus extending its lifespan and performance.

Features & Benefits


• Constructed from stainless steel for corrosion resistance
• Sealed design keeps the lubricant in and contaminants out
• Lightweight design at only 22g for easy installation

Applications


• Utilised in precision machinery with limited space
• Suitable for various automation requiring sealed bearings
• Ideal for use in electrical devices needing high load support
• Recommended for mechanical assemblies in adverse environments

What advantage does the sealing arrangement provide?


The sealing arrangement protects the lubricants and keeps dirt out, enhancing durability in harsh conditions.

How does the material composition impact its applications?


Using stainless steel ensures resistance to rust and corrosion, making it suitable for varied industrial environments.

What is the limiting speed of this bearing?


The limiting speed is rated at 15,700 r/min, allowing for effective high-speed operation in dynamic applications.

What factors should be considered when mounting this bearing?


Ensure that the minimum and maximum diameters of the shaft shoulder and housing shoulder are properly accommodated during installation for optimal performance.
