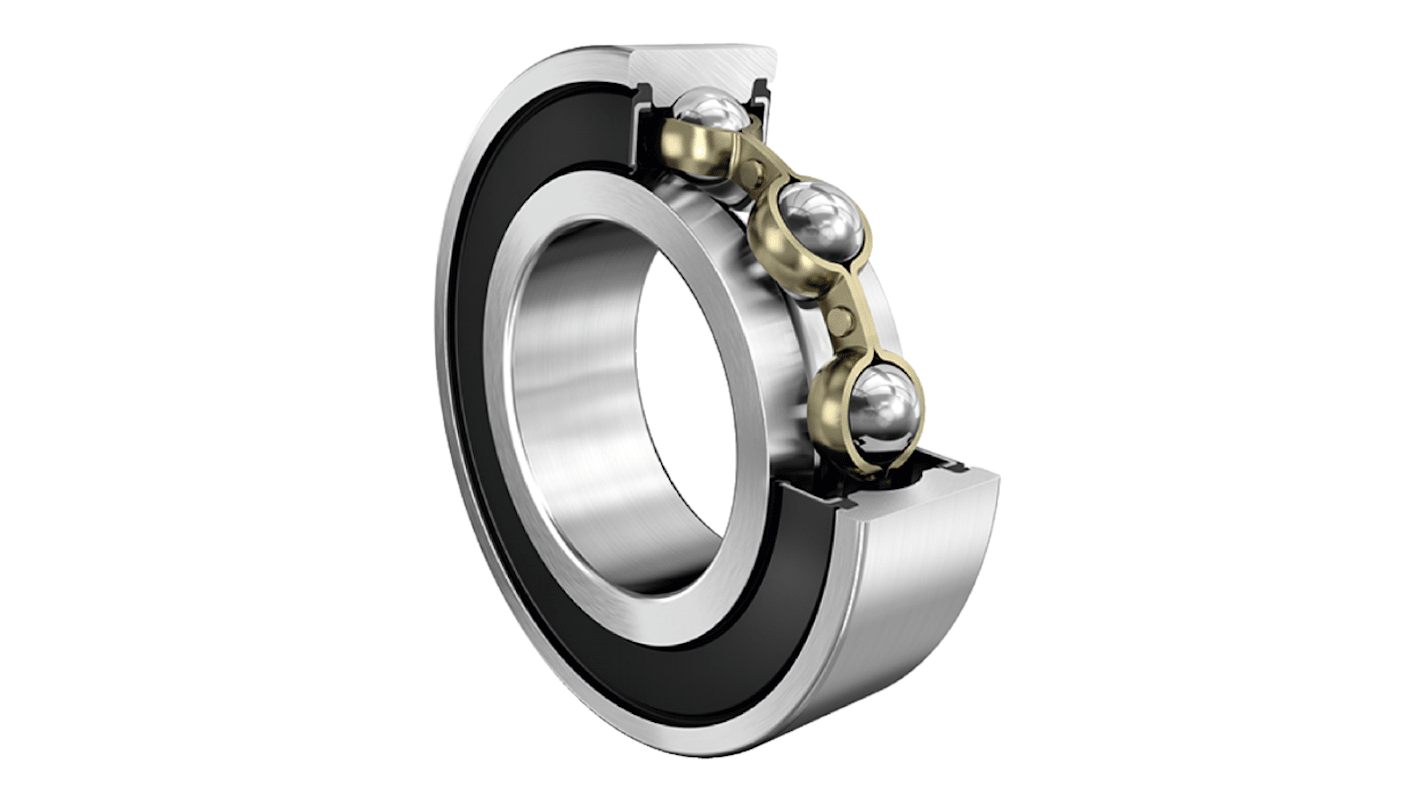

FAG 61816-2RSR-Y Single Row Deep Groove Ball Bearing- Both Sides Sealed 80mm I.D, 100mm O.D
- RS Stock No.:
- 260-0326
- Mfr. Part No.:
- 61816-2RSR-Y
- Brand:
- FAG
Subtotal (1 unit)*
£103.84
(exc. VAT)
£124.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.84 |
*price indicative
- RS Stock No.:
- 260-0326
- Mfr. Part No.:
- 61816-2RSR-Y
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 80mm | |
| Outside Diameter | 100mm | |
| Race Width | 10mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Both Sides Sealed | |
| Bearing Clearance | CN | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Brass | |
| Number of Rows | 1 | |
| Static Load Rating | 13.8kN | |
| Dynamic Load Rating | 13.8kN | |
| Bore Type | Parallel | |
| Bearing Series | 1 Extra Light Thrust | |
| Race Type | Plain | |
| Partial Bearing Code | 6816 | |
Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 80mm | ||
Outside Diameter 100mm | ||
Race Width 10mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Brass | ||
Number of Rows 1 | ||
Static Load Rating 13.8kN | ||
Dynamic Load Rating 13.8kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Race Type Plain | ||
Partial Bearing Code 6816 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SK
The FAG deep groove ball bearing has 80 mm bore diameter and 10 mm width with 16 calculation factor.
Operating temperature -20 to 100 °C
