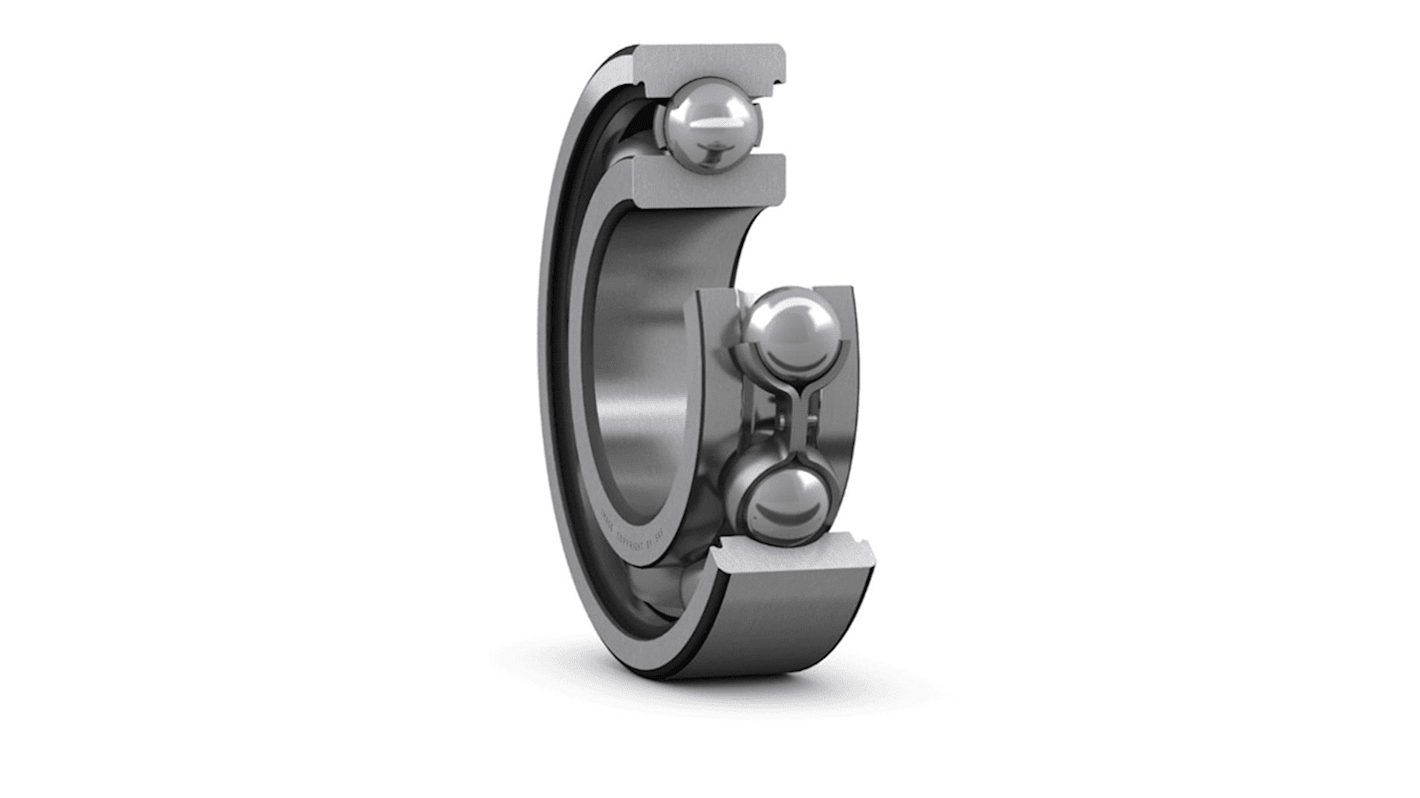

SKF 6312 M/C3VL0241 1 Row Ball Bearing - 60 mm ID, 130 mm OD
- RS Stock No.:
- 233-7154
- Mfr. Part No.:
- 6312 M/C3VL0241
- Brand:
- SKF
Subtotal (1 unit)*
£1,167.08
(exc. VAT)
£1,400.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,167.08 |
*price indicative
- RS Stock No.:
- 233-7154
- Mfr. Part No.:
- 6312 M/C3VL0241
- Brand:
- SKF
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 60 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 130 mm | |
| Race Width | 31mm | |
| Ball Material | Steel | |
| Cage Material | Machined Metal | |
| Race Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 52kN | |
| Dynamic Load Rating | 85.2kN | |
| Series | 6312 | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 10000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Grooved | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 60 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 130 mm | ||
Race Width 31mm | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Race Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 52kN | ||
Dynamic Load Rating 85.2kN | ||
Series 6312 | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 10000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Grooved | ||
- COO (Country of Origin):
- AT
The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from skf in many designs, variants and sizes. It has 60 mm ID and 130 mm OD.
Bearing is of bearing steel
Cylindrical bore type
