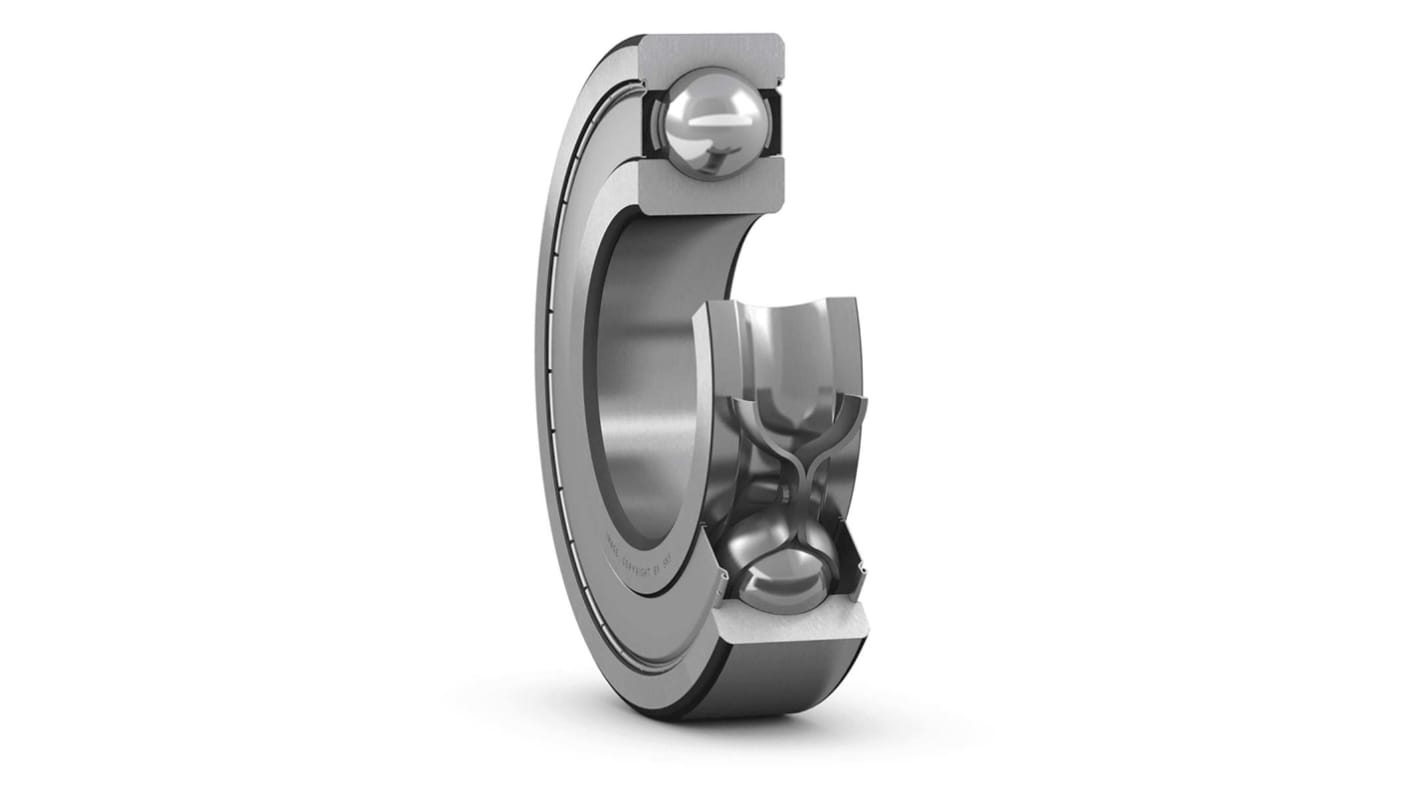

SKF 16002-2Z 1 Row Ball Bearing - 15 mm ID, 32 mm OD
- RS Stock No.:
- 209-1828
- Mfr. Part No.:
- 16002-2Z
- Brand:
- SKF
Subtotal (1 unit)*
£10.43
(exc. VAT)
£12.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 52 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.43 |
*price indicative
- RS Stock No.:
- 209-1828
- Mfr. Part No.:
- 16002-2Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 15 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 32 mm | |
| Race Width | 8mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 2.85kN | |
| Dynamic Load Rating | 5.85kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 26000rpm | |
| Flange Outside Diameter | 32mm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 15 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 32 mm | ||
Race Width 8mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Static Load Rating 2.85kN | ||
Dynamic Load Rating 5.85kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 26000rpm | ||
Flange Outside Diameter 32mm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep-Groove Bearing Type, 50,000r/min Reference Speed, 15mm ID, 32mm OD - 16002-2Z
Cut friction on moving parts of your industrial equipment with this ball bearing from SKF. The unit rotates along with a shaft and evenly spreads the load to its rolling parts, keeping things cool and maintaining smooth performance. Thanks to a limiting speed of 26,000r/min and reference speed of 50,000rpm, this device keeps up with fast-paced applications. It's shielded on both sides to shut out contamination and keep lubricant in, so the balls roll efficiently and grease isn't wasted. As it's heat-stabilised up to +120°C, you can trust the bearing to take the strain in demanding conditions.
Features & Benefits
• Handles up to 5.85kN of dynamic load and 2.85kN of static load, making it the right choice for medium-duty settings
• Light weight of 25g puts minimal strain on your equipment
• 8mm race is precision-engineered to allow for smooth movement of the rolling parts
• Steel body withstands corrosion and impact, making it fit for rugged industrial environments
Applications
• Marine engineering
• Power distribution systems
• Medical equipment
Does this bearing need maintenance?
This unit is made of weatherproof materials and is shielded, so it doesn't need a lot of maintenance. It's important to carry out regular inspections so you know if it needs to be replaced.
