SKF 2220 KM/C3 100 mm ID 2 Row Ball Bearing -, 180 mm OD
- RS Stock No.:
- 207-9776
- Mfr. Part No.:
- 2220 KM/C3
- Brand:
- SKF
Subtotal (1 unit)*
£728.93
(exc. VAT)
£874.72
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £728.93 |
*price indicative
- RS Stock No.:
- 207-9776
- Mfr. Part No.:
- 2220 KM/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 100mm | |
| Outside Diameter | 180mm | |
| Race Width | 46mm | |
| Ball Material | Steel | |
| Cage Material | Machined Metal | |
| End Type | Open | |
| Number of Rows | 2 | |
| Static Load Rating | 40.5kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 97.5kN | |
| Standards/Approvals | No | |
| Series | Self-aligning ball bearings | |
| Bore Type | Tapered | |
| Limiting Speed | 4800rpm | |
| Bearing Type | Self-Aligning | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 100mm | ||
Outside Diameter 180mm | ||
Race Width 46mm | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
End Type Open | ||
Number of Rows 2 | ||
Static Load Rating 40.5kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 97.5kN | ||
Standards/Approvals No | ||
Series Self-aligning ball bearings | ||
Bore Type Tapered | ||
Limiting Speed 4800rpm | ||
Bearing Type Self-Aligning | ||

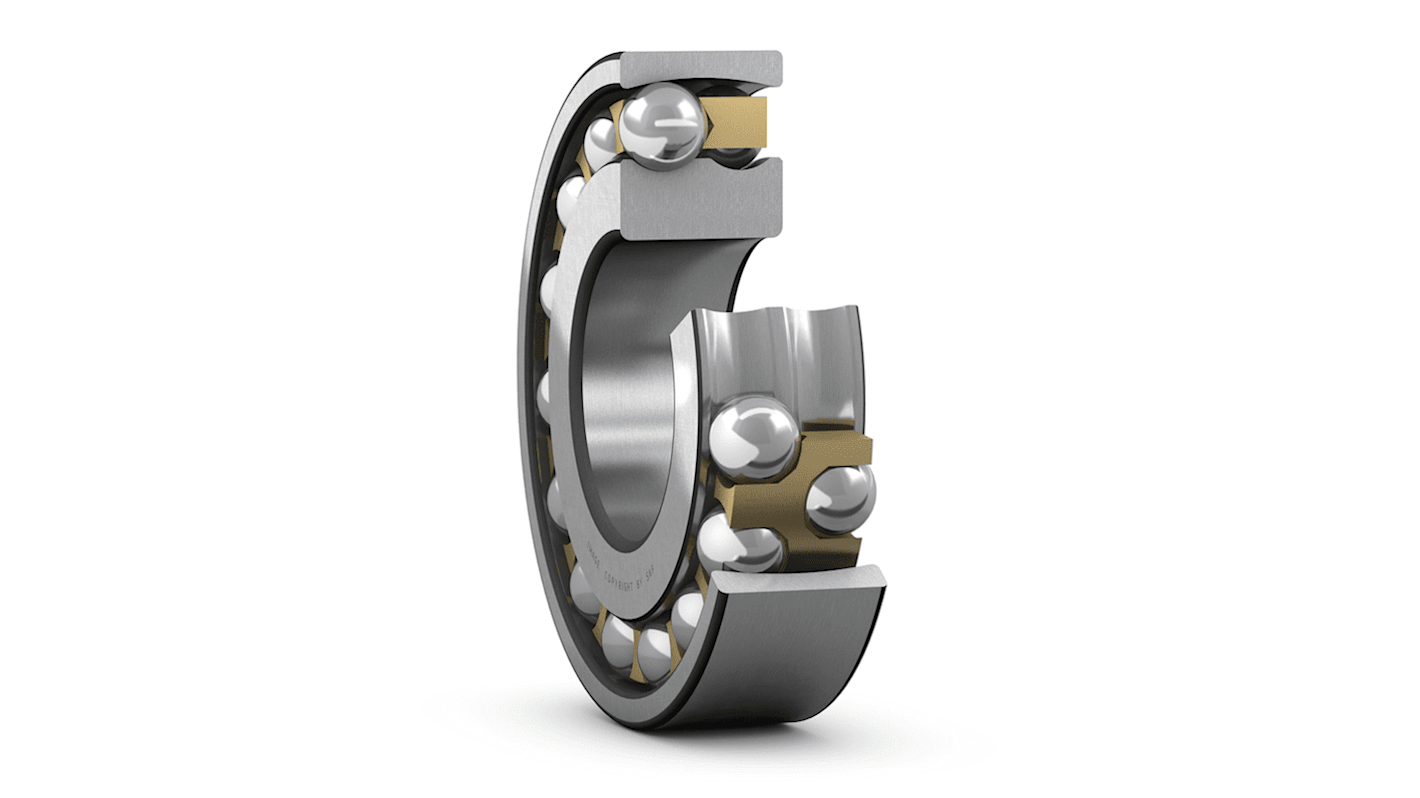

The SKF self-aligning ball bearings with two rows of balls having bore diameter 100mm and outside diameter 180mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Tapered type bore
Steel bearing
