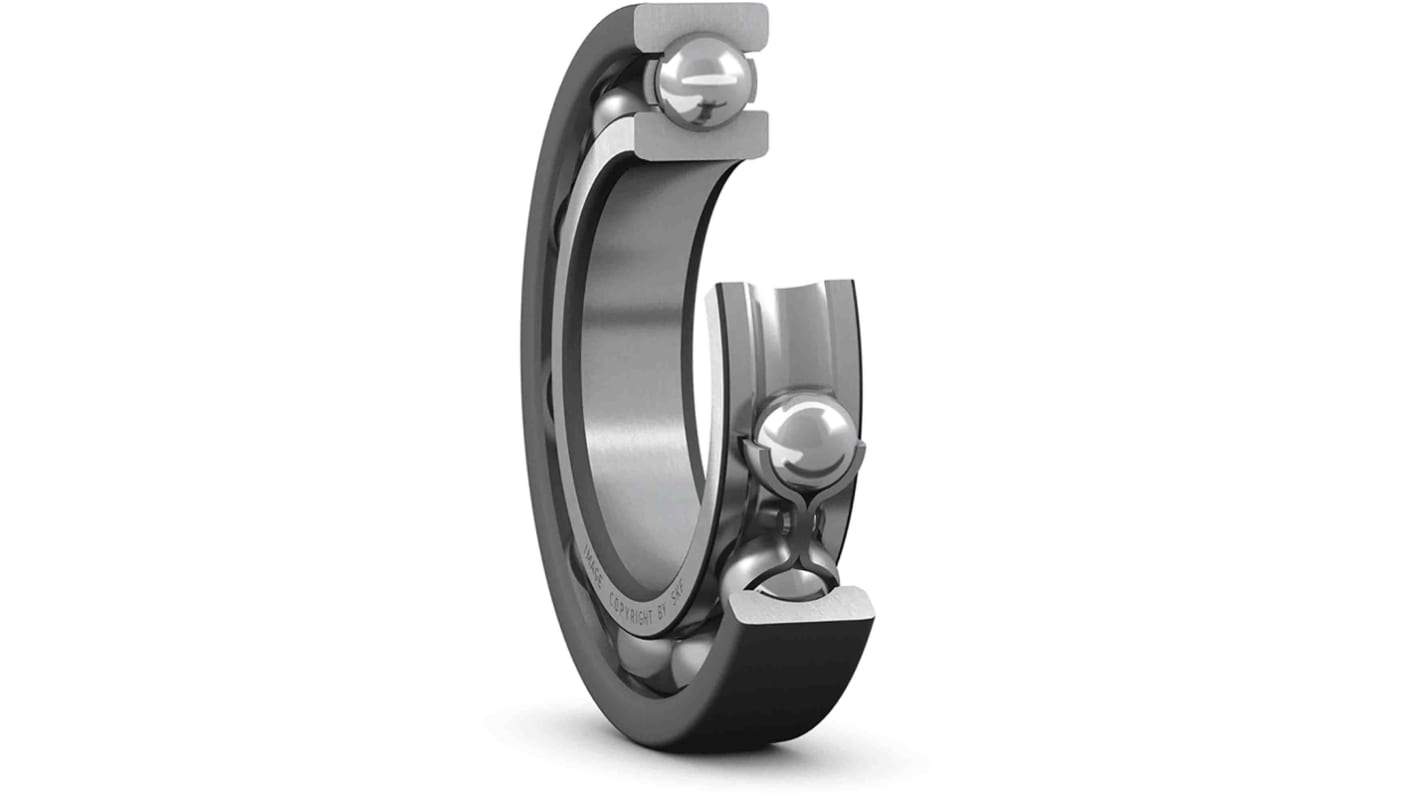

SKF 6318/C3VL0241 Single Row Deep Groove Ball Bearing- Open Type 90mm I.D, 190mm O.D
- RS Stock No.:
- 207-8340
- Mfr. Part No.:
- 6318/C3VL0241
- Brand:
- SKF
Subtotal (1 unit)*
£1,538.82
(exc. VAT)
£1,846.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,538.82 |
*price indicative
- RS Stock No.:
- 207-8340
- Mfr. Part No.:
- 6318/C3VL0241
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 90mm | |
Outside Diameter | 190mm | |
Race Width | 43mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 108kN | |
Dynamic Load Rating | 151kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6318 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 90mm | ||
Outside Diameter 190mm | ||
Race Width 43mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 108kN | ||
Dynamic Load Rating 151kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6318 | ||
- COO (Country of Origin):
- DE
SKF Deep-Groove Ball Bearing, 90 mm ID, 190 mm OD - 6318/C3VL0241
For versatile use, turn to this SKF single-row deep-groove ball bearing. It handles axial and radial loads in both directions at high and very high speeds. This component is built from bearing steel, a special alloy that won't corrode and resists heat, making it ideal for use in high-temperature environments. The steel balls and smooth raceway minimise noise and vibration, and the solid construction limits the need for maintenance. This unit has been thoroughly tested for quality and complies with British and EU electrostatic discharge standards.
• Open-end type for protection from contamination
• Cylindrical bore makes it simple to mount and install
• Widely-used bearing type for versatile application
• Cylindrical bore makes it simple to mount and install
• Widely-used bearing type for versatile application
Application Information
• Mining industry
• Production lines
• Food and drink production
• Production lines
• Food and drink production
Is there a difference between dynamic load and static load?
Although they sound similar, dynamic load and static load refer to different capabilities. Dynamic load refers to the weight that the ball bearing can move without suffering damage, while static load refers to the weight that the ball bearing can safely hold in place. This ball bearing has a static load rating of 108 kilonewtons (kN) and a dynamic load rating of 151 kilonewtons (kN), making it suited to heavy-duty applications.
