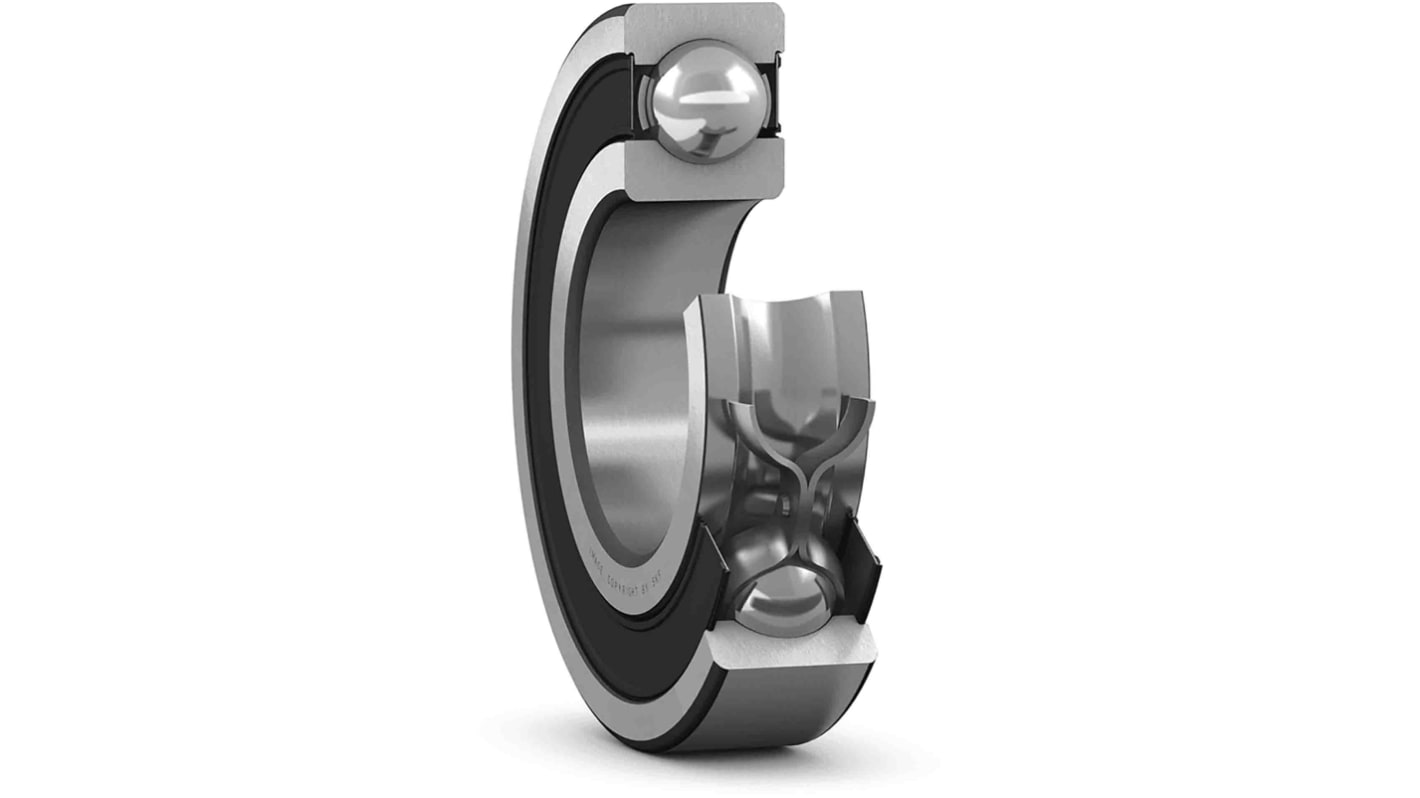

SKF 626-2Z/C2LHT23 Single Row Deep Groove Ball Bearing- Both Sides Shielded 6mm I.D, 19mm O.D
- RS Stock No.:
- 207-8227
- Mfr. Part No.:
- 626-2Z/C2LHT23
- Brand:
- SKF
Subtotal (1 unit)*
£11.13
(exc. VAT)
£13.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.13 |
*price indicative
- RS Stock No.:
- 207-8227
- Mfr. Part No.:
- 626-2Z/C2LHT23
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 6mm | |
Outside Diameter | 19mm | |
Race Width | 6mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | C2 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 950kN | |
Dynamic Load Rating | 2.34kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 626 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 6mm | ||
Outside Diameter 19mm | ||
Race Width 6mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C2 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 950kN | ||
Dynamic Load Rating 2.34kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 626 | ||
- COO (Country of Origin):
- IT
The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 6 mm ID and 19 mm OD.
Bearing is of bearing steel
Cylindrical bore type
Cylindrical bore type
