SKF 6036 M Single Row Deep Groove Ball Bearing- Open Type 180mm I.D, 280mm O.D
- RS Stock No.:
- 207-6940
- Mfr. Part No.:
- 6036 M
- Brand:
- SKF
Subtotal (1 unit)*
£1,109.31
(exc. VAT)
£1,331.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,109.31 |
*price indicative
- RS Stock No.:
- 207-6940
- Mfr. Part No.:
- 6036 M
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 180mm | |
Outside Diameter | 280mm | |
Race Width | 46mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Machined Metal | |
Number of Rows | 1 | |
Static Load Rating | 200kN | |
Dynamic Load Rating | 190kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Model Number p | 6036 M | |
Partial Bearing Code | 6036 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 180mm | ||
Outside Diameter 280mm | ||
Race Width 46mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Number of Rows 1 | ||
Static Load Rating 200kN | ||
Dynamic Load Rating 190kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Model Number p 6036 M | ||
Partial Bearing Code 6036 | ||
- COO (Country of Origin):
- FR

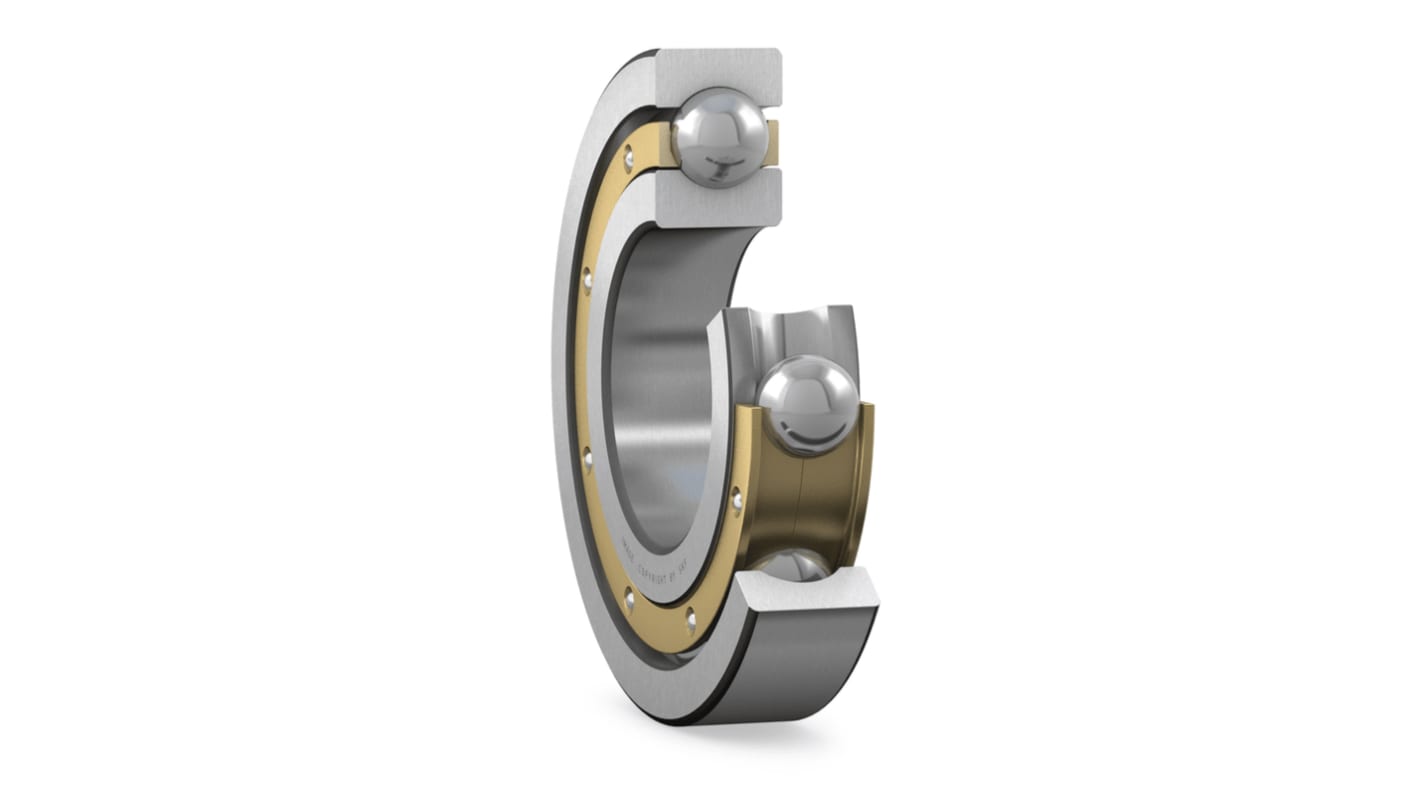

SKF Ball Bearing, 180 mm ID, 280 mm OD - 6036 M
This ball bearing from SKF is a reliable choice for optimal performance under severe operating conditions. Its cage is made from machined brass, which is lightweight and provides more space within the bearing for lubrication. This gives the unit increased wear resistance, making for a longer working life. It also improves the bearing's ability to handle shock loads and vibration, ensuring continuous and smooth rotational motion. This component is quiet during operation, making it suited for use in wind turbine generators and other demanding industrial applications.
• Open end, cylindrical bore type
• Inside diameter of 180 mm
• Outside diameter of 280 mm
• Race width of 46 mm
• Limiting speed of 4,000 r/min
• Inside diameter of 180 mm
• Outside diameter of 280 mm
• Race width of 46 mm
• Limiting speed of 4,000 r/min
Application Information
• Wind power generation
• Automotive industry
• Medical and pharmaceutical industries
• Automotive industry
• Medical and pharmaceutical industries
How does this bearing's cage design improve its performance?
The cage pocket design of this bearing reduces contact stresses between the cage and rolling elements to optimise ball-to-cage contact and improve ball guidance. Plus, its no-edge contact promotes the formation of a hydrodynamic film, which significantly reduces vibration.
