SKF 6020-2RS1/C3 1 Row Ball Bearing - 100 mm ID, 150 mm OD
- RS Stock No.:
- 207-6450
- Mfr. Part No.:
- 6020-2RS1/C3
- Brand:
- SKF
Subtotal (1 unit)*
£110.92
(exc. VAT)
£133.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £110.92 |
*price indicative
- RS Stock No.:
- 207-6450
- Mfr. Part No.:
- 6020-2RS1/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 100mm | |
| Outside Diameter | 150mm | |
| Race Width | 24mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 54kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 63.7kN | |
| Standards/Approvals | No | |
| Series | 6020 | |
| Bore Type | Parallel | |
| Limiting Speed | 2600rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 100mm | ||
Outside Diameter 150mm | ||
Race Width 24mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 54kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 63.7kN | ||
Standards/Approvals No | ||
Series 6020 | ||
Bore Type Parallel | ||
Limiting Speed 2600rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- FR

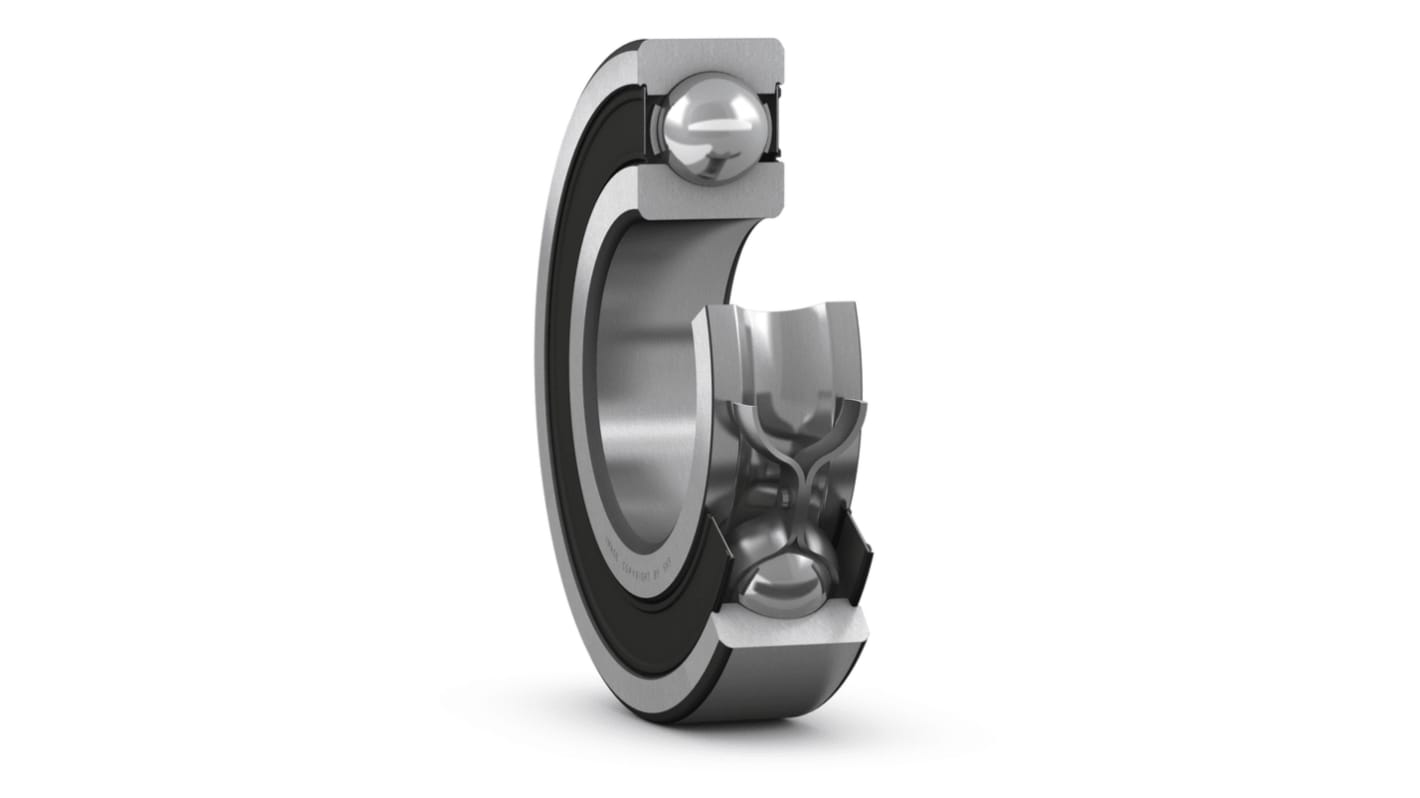

SKF Ball Bearing, 100mm Inside Diameter, 150mm Outside Diameter - 6020-2RS1/C3
This ball bearing is a single row deep groove type designed for various industrial applications. It features an inside diameter of 100mm and an outside diameter of 150mm, making it suitable for high-load applications. With both sides sealed, this steel ball bearing maintains its integrity against contaminants, ensuring durability and performance.
Features & Benefits
• High dynamic load rating of 63.7kN provides robust performance
• C3 clearance ensures increased operational tolerances
• Sealed design prevents the ingress of dirt and moisture
• Steel construction offers enhanced strength and longevity
• Single row design facilitates easy installation and maintenance
• Efficient operation up to 2600r/min supports high-speed applications
• C3 clearance ensures increased operational tolerances
• Sealed design prevents the ingress of dirt and moisture
• Steel construction offers enhanced strength and longevity
• Single row design facilitates easy installation and maintenance
• Efficient operation up to 2600r/min supports high-speed applications
Applications
• Used with electric motors to reduce friction
• Ideal for conveyor systems requiring reliable motion
• Employed in automotive for smooth operation
• Suitable for pumps where sealing is essential
• Utilised in various machinery to ensure effective performance
• Ideal for conveyor systems requiring reliable motion
• Employed in automotive for smooth operation
• Suitable for pumps where sealing is essential
• Utilised in various machinery to ensure effective performance
What is the maximum load this bearing can handle?
The Basic dynamic load rating of this bearing is 63.7kN, while its static load rating is 54kN, making it suitable for a variety of heavy-duty applications.
How does the sealing arrangement enhance performance?
The sealing arrangement on both sides effectively prevents contaminants from entering the bearing, resulting in an extended service life and reduced maintenance requirements.
What is the significance of the C3 clearance?
The C3 clearance allows for a larger operational gap between the rolling elements and the raceways, which accommodates thermal expansion and ensures smooth operation under varying load conditions.
Can this bearing be used in high-speed applications?
Yes, with a maximum operating speed of 2600r/min, it is suitable for high-speed industrial applications while maintaining stable performance.
What materials are used in the construction of this bearing?
This bearing is constructed from high-quality steel, with steel balls and a sheet metal cage, ensuring durability and effective load handling.
