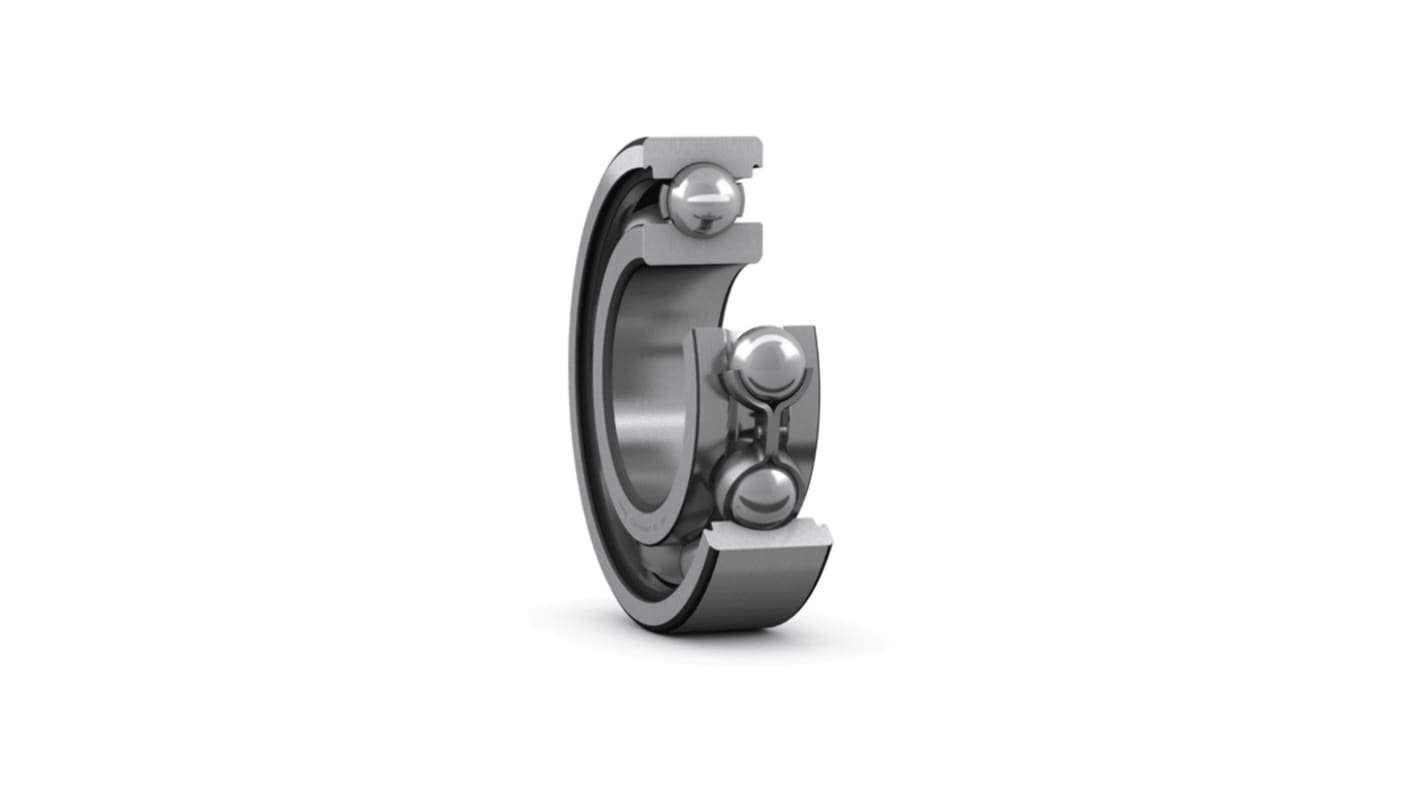

SKF 6020 Single Row Deep Groove Ball Bearing- Open Type 100mm I.D, 150mm O.D
- RS Stock No.:
- 207-6446
- Mfr. Part No.:
- 6020
- Brand:
- SKF
Subtotal (1 unit)*
£84.46
(exc. VAT)
£101.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £84.46 |
*price indicative
- RS Stock No.:
- 207-6446
- Mfr. Part No.:
- 6020
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 100mm | |
| Outside Diameter | 150mm | |
| Race Width | 24mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | Open Type | |
| Bearing Clearance | CN | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Static Load Rating | 54kN | |
| Dynamic Load Rating | 63.7kN | |
| Bore Type | Parallel | |
| Bearing Series | 0 Extra Light | |
| Partial Bearing Code | 6020 | |
| Model Number p | 6020 | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 100mm | ||
Outside Diameter 150mm | ||
Race Width 24mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 54kN | ||
Dynamic Load Rating 63.7kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6020 | ||
Model Number p 6020 | ||
- COO (Country of Origin):
- FR
SKF Ball Bearing, Deep-Groove Bearing Type, Open Ends, 100mm ID, 150mm OD - 6020
For the smooth and noiseless operation of moving parts of your industrial equipment, choose this ball bearing from SKF. It's a deep-groove unit with balls that roll smoothly along its single precision raceway. This setup makes it suitable for carrying both axial and radial loads, making it a versatile solution. With an outer diameter of 150mm, this bearing is a practical choice for larger shafts. Its open-ended design makes it easy to inspect and relubricate as needed during operation.
Features & Benefits
• Can withstand temperatures up to +120°C, for use in challenging conditions
• Static load rating of 54kN and dynamic load rating of 63.7kN for reliability and strength
• Steel body is resistant to corrosion for long-term performance
• Static load rating of 54kN and dynamic load rating of 63.7kN for reliability and strength
• Steel body is resistant to corrosion for long-term performance
Applications
• Agricultural equipment
• Material handling machinery
• Industrial conveyors
• Material handling machinery
• Industrial conveyors
How do I maintain this bearing?
You can keep this ball bearing running at its best by regularly lubricating it to reduce friction. It's advisable to apply the grease during operation to enable even distribution of the lubricant.
What's the operating speed of this bearing?
The bearing has a reference speed of 9500r/min and a limiting speed of 5600r/min, making it suitable for lower-speed industrial equipment.
