SKF 6015/C4 1 Row Ball Bearing - 75 mm ID, 115 mm OD
- RS Stock No.:
- 207-6412
- Mfr. Part No.:
- 6015/C4
- Brand:
- SKF
Subtotal (1 unit)*
£55.00
(exc. VAT)
£66.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £55.00 |
*price indicative
- RS Stock No.:
- 207-6412
- Mfr. Part No.:
- 6015/C4
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 75mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 115mm | |
| Race Width | 20mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 33.5kN | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 41.6kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | 6015 | |
| Limiting Speed | 7500rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 75mm | ||
Product Type Ball Bearing | ||
Outside Diameter 115mm | ||
Race Width 20mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 33.5kN | ||
Internal Clearance C4 | ||
Dynamic Load Rating 41.6kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series 6015 | ||
Limiting Speed 7500rpm | ||
Bearing Type Single Row Deep Groove Ball | ||

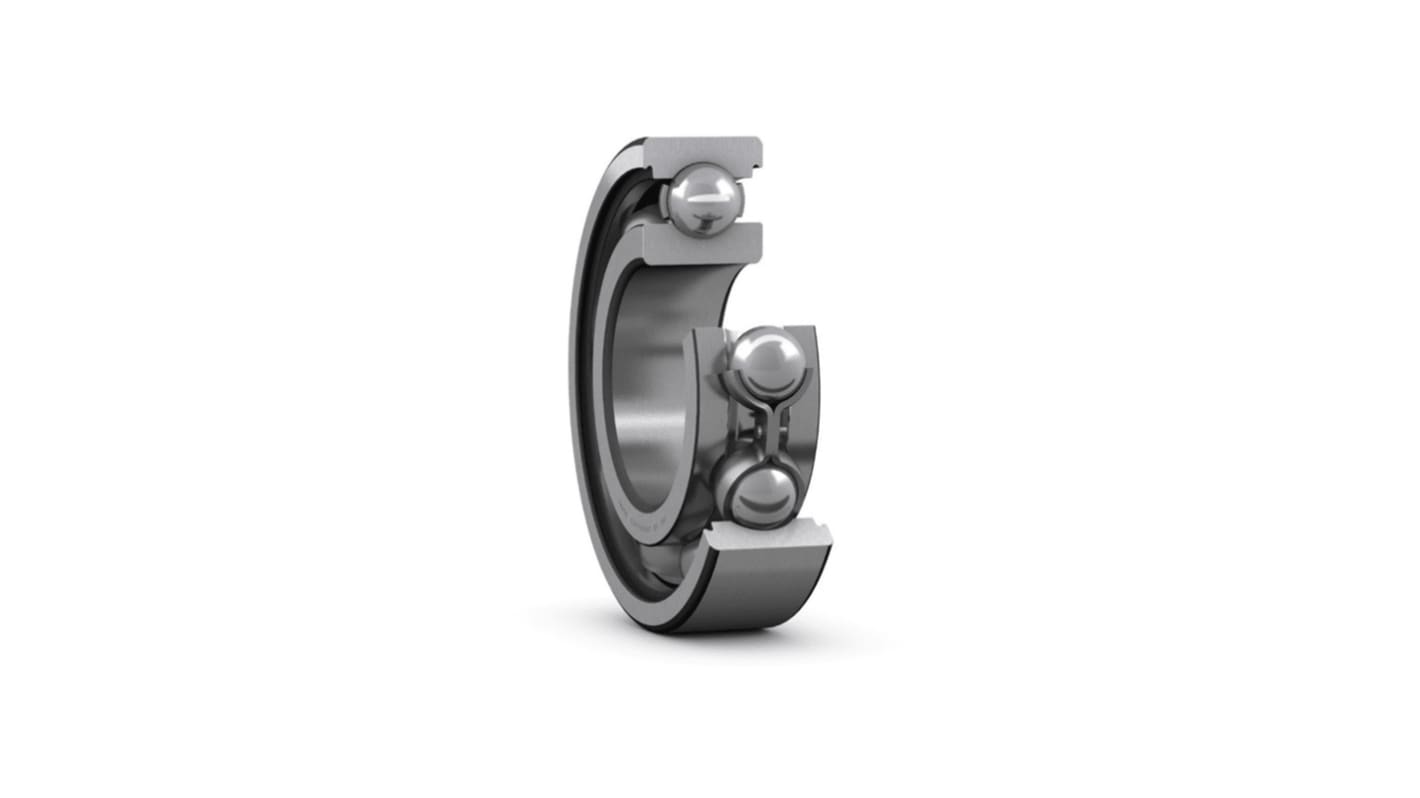

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 75 mm ID and 115 mm OD.
Bearing material is of bearing steel
Cylindrical bore type
