SKF 7311 BEGAP 1 Row Ball Bearing - 55 mm ID, 120 mm OD 29 mm Race Width
- RS Stock No.:
- 207-5530
- Mfr. Part No.:
- 7311 BEGAP
- Brand:
- SKF
Subtotal (1 unit)*
£154.00
(exc. VAT)
£184.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £154.00 |
*price indicative
- RS Stock No.:
- 207-5530
- Mfr. Part No.:
- 7311 BEGAP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 55 mm | |
| Outside Diameter | 120 mm | |
| Race Width | 29mm | |
| Ball Material | Steel | |
| Cage Material | Non-Metallic | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 60kN | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 85kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 7311 | |
| Limiting Speed | 7000rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 55 mm | ||
Outside Diameter 120 mm | ||
Race Width 29mm | ||
Ball Material Steel | ||
Cage Material Non-Metallic | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 60kN | ||
Contact Angle 40° | ||
Dynamic Load Rating 85kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 7311 | ||
Limiting Speed 7000rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
- COO (Country of Origin):
- DE

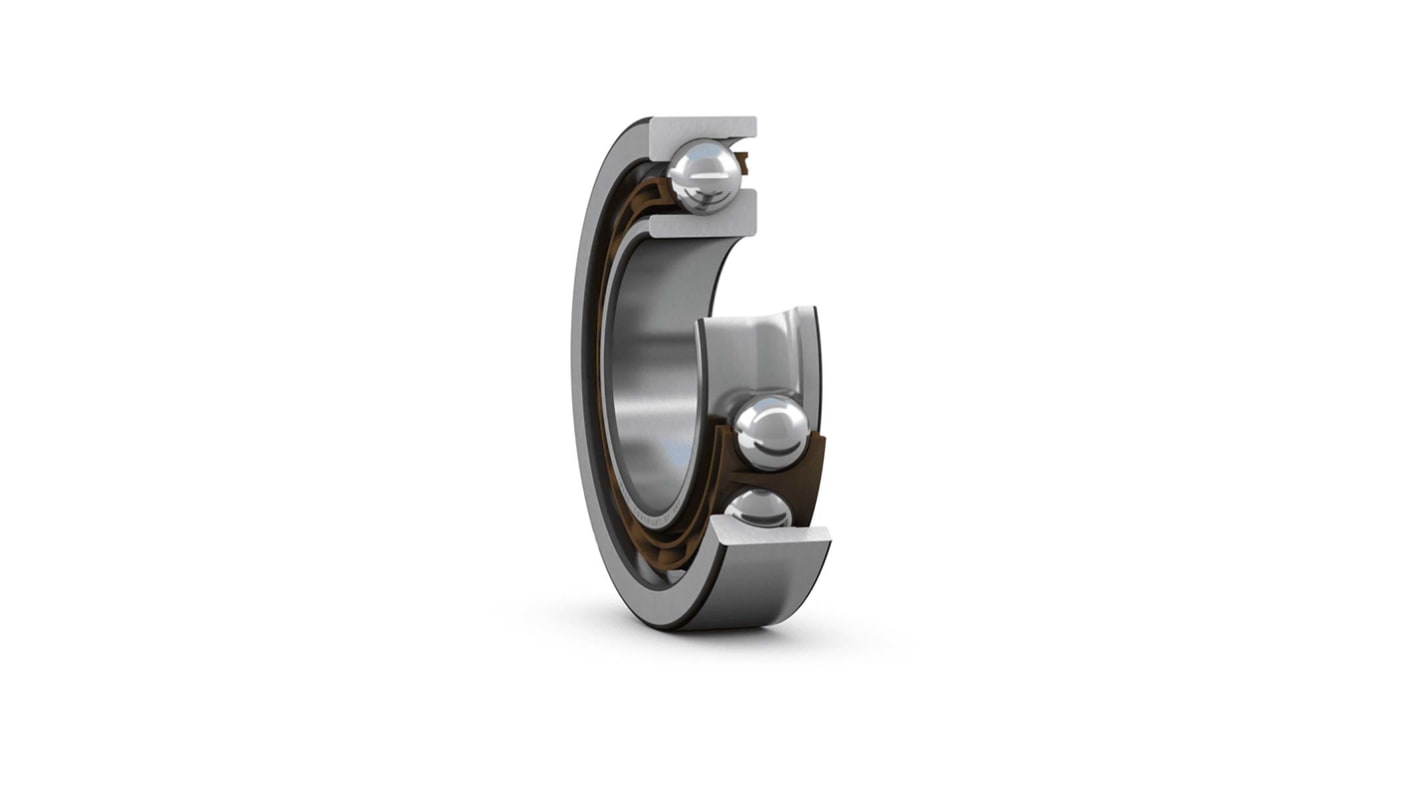

The SKF Angular contact ball bearing has 55mm inner bore and 120mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This bearing is designed to accommodate combined loads, i.e. Simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Single row
Cylindrical type bore
Steel bearing
Nominal contact angle 40 deg
