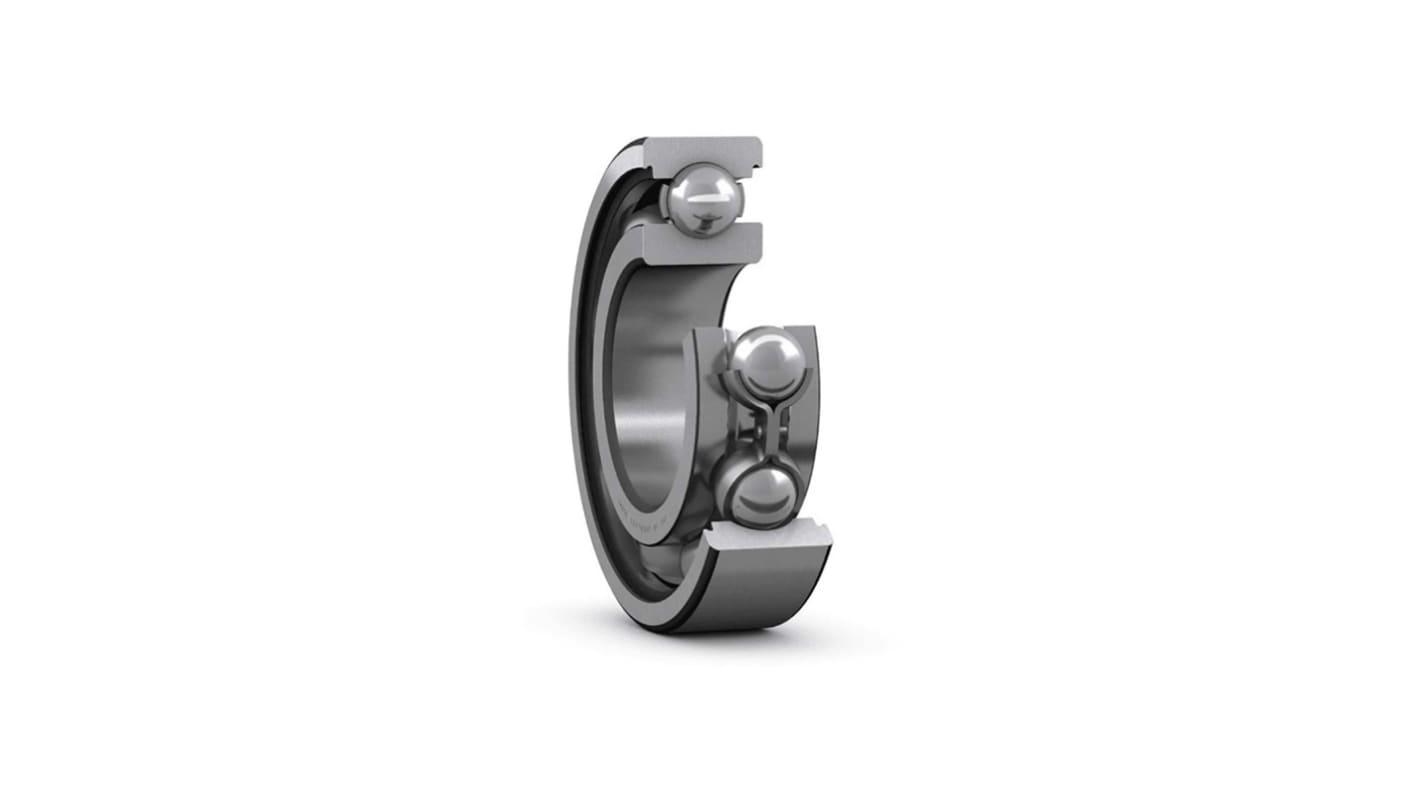

SKF 6408/C3 1 Row Ball Bearing - 40 mm ID, 110 mm OD
- RS Stock No.:
- 207-5404
- Mfr. Part No.:
- 6408/C3
- Brand:
- SKF
Subtotal (1 unit)*
£90.53
(exc. VAT)
£108.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £90.53 |
*price indicative
- RS Stock No.:
- 207-5404
- Mfr. Part No.:
- 6408/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 40 mm | |
| Outside Diameter | 110 mm | |
| Race Width | 27mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 36.5kN | |
| Dynamic Load Rating | 63.7kN | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Series | 6408 | |
| Limiting Speed | 9000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 40 mm | ||
Outside Diameter 110 mm | ||
Race Width 27mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 36.5kN | ||
Dynamic Load Rating 63.7kN | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Series 6408 | ||
Limiting Speed 9000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- FR
The SKF Deep groove ball bearing is particularly versatile. It has a 40mm bore diameter and 110mm outside diameter. This is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.
Single row
Cylindrical type bore
Steel type bearing
