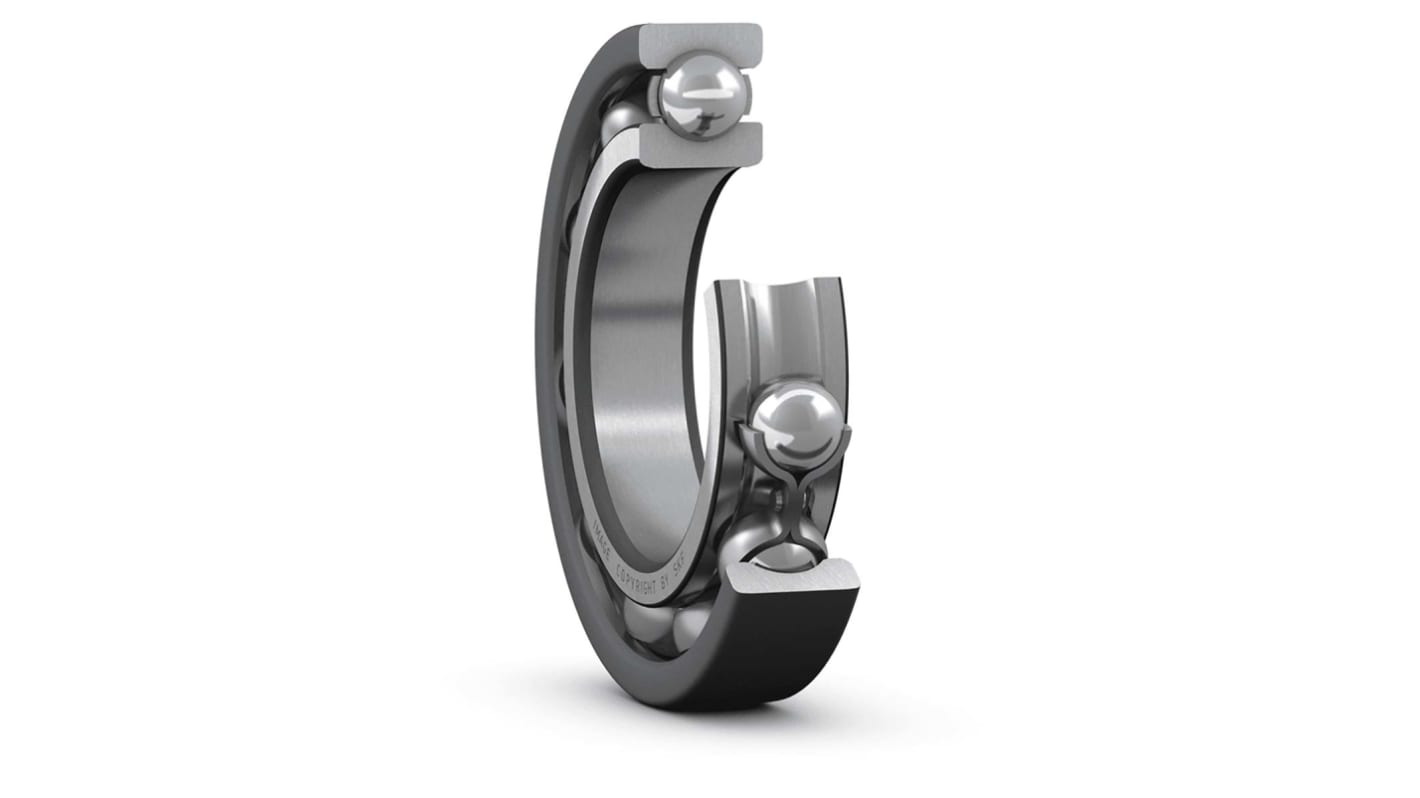

SKF 6319/C3VL0241 Single Row Deep Groove Ball Bearing- Open Type 95mm I.D, 200mm O.D
- RS Stock No.:
- 207-5358
- Mfr. Part No.:
- 6319/C3VL0241
- Brand:
- SKF
Subtotal (1 unit)*
£1,724.97
(exc. VAT)
£2,069.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,724.97 |
*price indicative
- RS Stock No.:
- 207-5358
- Mfr. Part No.:
- 6319/C3VL0241
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 95mm | |
Outside Diameter | 200mm | |
Race Width | 45mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 118kN | |
Dynamic Load Rating | 159kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6319 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 95mm | ||
Outside Diameter 200mm | ||
Race Width 45mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 118kN | ||
Dynamic Load Rating 159kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6319 | ||
- COO (Country of Origin):
- DE
SKF Ball Bearing, 95 mm ID, 200 mm OD - 6319/C3VL0241
Looking for a versatile ball bearing that's able to withstand both radial and axial loads? This deep-groove, single-row ball bearing from SKF is ideal for use where pressure will be applied both along the shaft and from the side. It can be used at speeds of up to 4,500 rpm and bear a mass of up to 5.65 kg. It's a low-maintenance choice that's found across light and heavy industries. You can use it in a variety of applications with rotating components, from machine tools to medical equipment.
• Open end type
• Deep-groove design for low friction torque
• Low noise and vibration
• Inside diameter of 95 mm
• Outside diameter of 200 mm
• Race width of 45 mm
• Deep-groove design for low friction torque
• Low noise and vibration
• Inside diameter of 95 mm
• Outside diameter of 200 mm
• Race width of 45 mm
Application Information
• Electric motors
• Industrial fans
• Production lines
• Industrial fans
• Production lines
In what industrial environments are deep-groove ball bearings used?
Deep-groove ball bearings are an ideal option when you need to handle both large loads and high-speed operation. As they have the ability to support both radial and axial loads, they're a good choice for applications where pressure can be expected along the shaft and from the side.
