SKF 6319 M/C3VL0241 Single Row Deep Groove Ball Bearing- Open Type 95mm I.D, 200mm O.D
- RS Stock No.:
- 207-5355
- Mfr. Part No.:
- 6319 M/C3VL0241
- Brand:
- SKF
Subtotal (1 unit)*
£1,845.72
(exc. VAT)
£2,214.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,845.72 |
*price indicative
- RS Stock No.:
- 207-5355
- Mfr. Part No.:
- 6319 M/C3VL0241
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 95mm | |
Outside Diameter | 200mm | |
Race Width | 45mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Machined Metal | |
Number of Rows | 1 | |
Static Load Rating | 118kN | |
Dynamic Load Rating | 159kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 6319 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 95mm | ||
Outside Diameter 200mm | ||
Race Width 45mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Machined Metal | ||
Number of Rows 1 | ||
Static Load Rating 118kN | ||
Dynamic Load Rating 159kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 6319 | ||
- COO (Country of Origin):
- DE

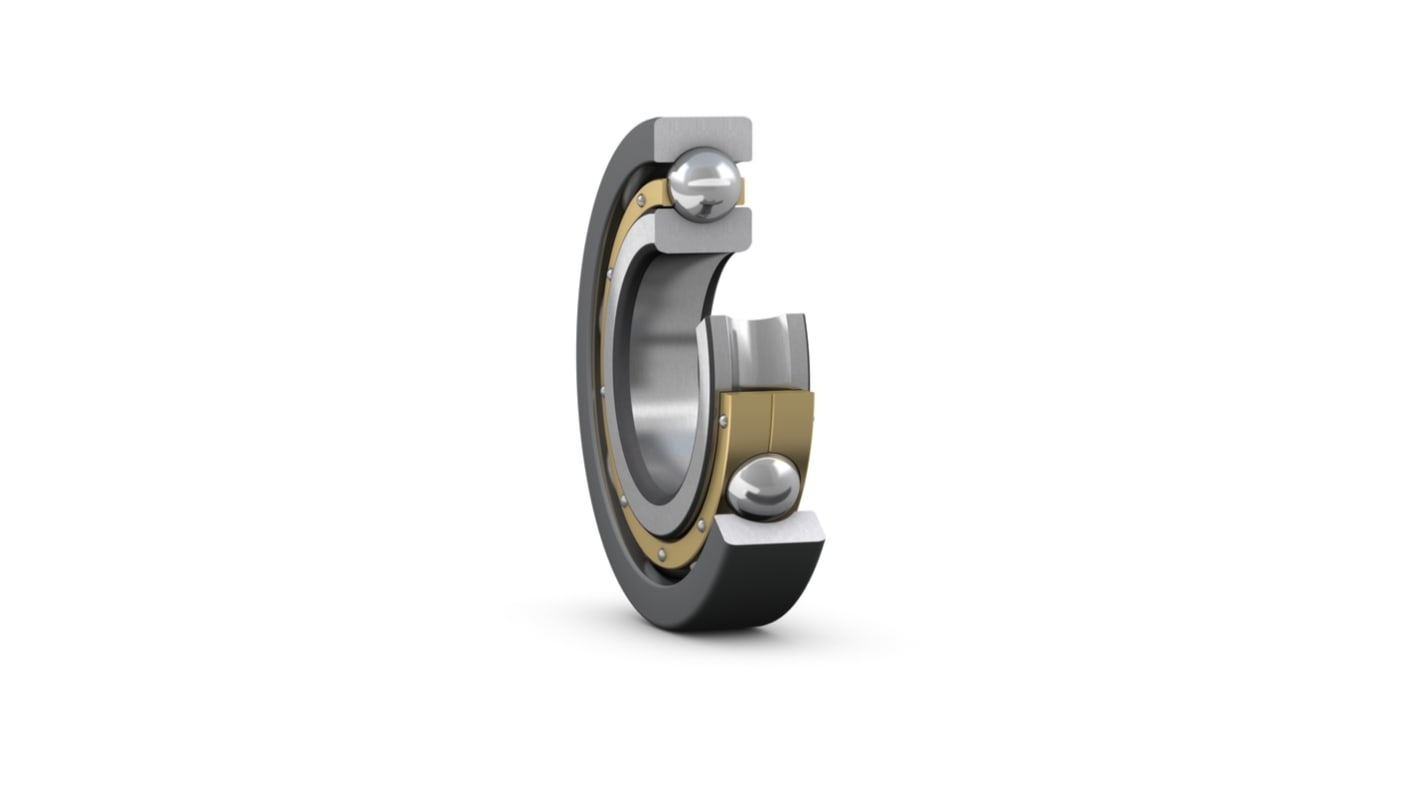

SKF Ball Bearing, 95 mm ID, 200 mm OD - 6319 M/C3VL0241
Need a versatile ball bearing that can accommodate radial and axial loads and operate at high speeds? This deep-groove ball bearing from SKF offers quiet operation and needs less starting torque than other types of ball bearings. It won't need much in the way of maintenance, and it meets both British and EU electrostatic discharge standards, so there's no danger of damage to equipment via electrostatic discharge. Bearings of this type are commonly used in a variety of industrial applications, from construction equipment to wind turbines.
• Open end type
• Deep-groove design for low friction torque
• Low noise and vibration
• Inside diameter of 95 mm
• Outside diameter of 200 mm
• Race width of 45 mm
• Deep-groove design for low friction torque
• Low noise and vibration
• Inside diameter of 95 mm
• Outside diameter of 200 mm
• Race width of 45 mm
Application Information
• Electric motors
• Industrial compressors
• Manufacturing conveyors
• Industrial compressors
• Manufacturing conveyors
When can I use a deep-groove ball bearing?
Deep-groove ball bearings are an ideal option when you need to handle large loads at high operating speeds. As they can stand up to both radial and axial loads, they're suitable for use in situations where pressure will be applied both along the shaft and from the side.
