SKF 7307 BECBP Single Row Angular Contact Ball Bearing- Open Type 35mm I.D, 80mm O.D
- RS Stock No.:
- 195-9576
- Mfr. Part No.:
- 7307 BECBP
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£70.52
(exc. VAT)
£84.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £70.52 |
5 - 9 | £67.70 |
10 - 24 | £66.30 |
25 + | £64.88 |
*price indicative
- RS Stock No.:
- 195-9576
- Mfr. Part No.:
- 7307 BECBP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 35mm | |
Outside Diameter | 80mm | |
Race Width | 21mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 26.5kN | |
Dynamic Load Rating | 41.5kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 7307 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 35mm | ||
Outside Diameter 80mm | ||
Race Width 21mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 26.5kN | ||
Dynamic Load Rating 41.5kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 7307 | ||
Race Type Plain | ||
RoHS Status: Exempt

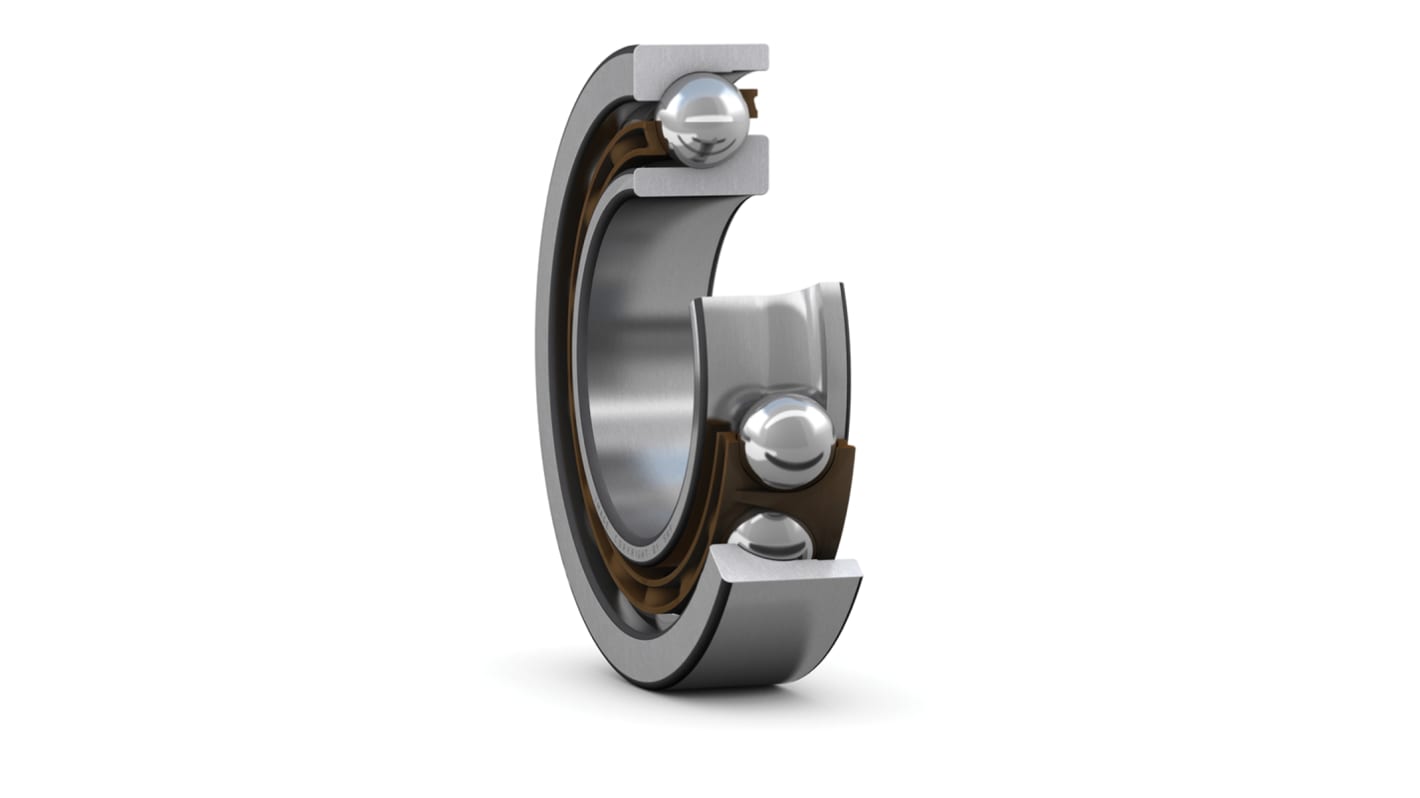

SKF Ball Bearing, Angular-Contact Bearing Type, Plain Race, 35mm ID, 80mm OD - 7307 BECBP
Need a mechanical solution that can handle combined forces? Choose this angular-contact ball bearing from SKF. It reduces rotational friction and supports the optimal performance of your equipment. Inner and outer raceways use relative displacement to accommodate simultaneously acting loads travelling in one direction. A limiting speed of 11,000 r/min makes the unit suitable for fast-paced equipment, while robust steel construction makes it durable enough for heavy-duty applications. Universal matching ensures equal load sharing, as well as limiting installation errors and premature failures.
• Innovative design accommodates high radial loads and large unilateral axial loads for versatile use
• Dynamic load rating of 41.5 kN for durability in demanding machinery
• Open-ended design gives easy access for relubrication
• Dynamic load rating of 41.5 kN for durability in demanding machinery
• Open-ended design gives easy access for relubrication
Applications
• Industrial gearboxes
• Fans and blowers
• Electric motors
• Wind energy applications
• Fans and blowers
• Electric motors
• Wind energy applications
Why are angular-contact ball bearings useful?
An angular contact ball bearing, or spindle bearing, is a versatile component used in machinery that needs high accuracy and durability. It has higher speed ratings to handle these demands thanks to the continuous contact of the balls with both rings.
