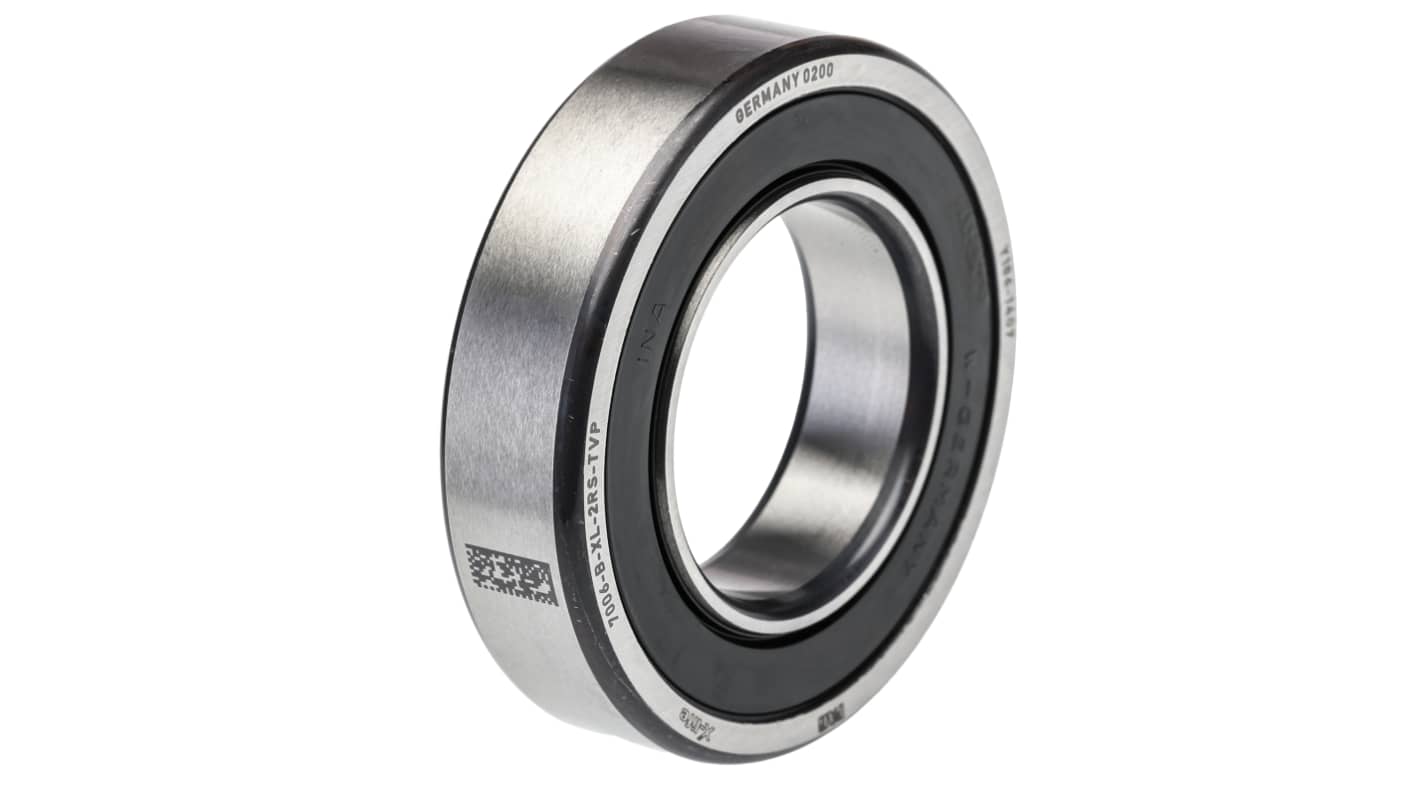

FAG 7006-B-XL-2RS-TVP Single Row Angular Contact Ball Bearing- Both Sides Sealed 30mm I.D, 55mm O.D
- RS Stock No.:
- 187-9492
- Mfr. Part No.:
- 7006-B-XL-2RS-TVP
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£123.58
(exc. VAT)
£148.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £123.58 |
5 - 9 | £118.64 |
10 + | £116.15 |
*price indicative
- RS Stock No.:
- 187-9492
- Mfr. Part No.:
- 7006-B-XL-2RS-TVP
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 30mm | |
Outside Diameter | 55mm | |
Race Width | 13mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 1 | |
Static Load Rating | 13.4kN | |
Dynamic Load Rating | 19.9kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Race Material | Steel | |
Partial Bearing Code | 7006 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 30mm | ||
Outside Diameter 55mm | ||
Race Width 13mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 1 | ||
Static Load Rating 13.4kN | ||
Dynamic Load Rating 19.9kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Race Material Steel | ||
Partial Bearing Code 7006 | ||
- COO (Country of Origin):
- DE
Schaeffler 0 Extra Light Series Angular Contact Ball Bearing, 30mm Inside Diameter, 55mm Outside Diameter - 7006-B-XL-2RS-TVP
This angular contact ball bearing is designed for precision applications. With an inside diameter of 30mm and an outside diameter of 55mm, it is ideal for demanding environments. This single row angular contact bearing features a robust design with sealing on both sides, ensuring superior protection from contaminants.
Features & Benefits
• High load ratings accommodate extensive radial and axial loads
• Sealed on both sides for maximum reliability in harsh conditions
• Steel construction enhances durability and performance longevity
• Polyamide cage reduces friction for smoother operation
• Designed for standard maintenance-free grease lubrication
• Dimensional stability up to 150°C ensures consistent performance
• Sealed on both sides for maximum reliability in harsh conditions
• Steel construction enhances durability and performance longevity
• Polyamide cage reduces friction for smoother operation
• Designed for standard maintenance-free grease lubrication
• Dimensional stability up to 150°C ensures consistent performance
Applications
• Utilised in precision machinery requiring high load capabilities
• Employed in for efficient operation
• Suitable for use in electrical systems
• Essential for in the electronics sector
• Often used in rotating equipment where stability is critical
• Employed in for efficient operation
• Suitable for use in electrical systems
• Essential for in the electronics sector
• Often used in rotating equipment where stability is critical
What are the dynamic and static load ratings for this bearing?
The dynamic load rating is 19.9kN, while the static load rating is 13.4kN, ensuring adequate support for various applications.
How does the polyamide cage contribute to the bearing's performance?
The polyamide cage facilitates lower friction within the bearing, which enhances overall efficiency and reduces wear over time.
What operating temperature range can be accommodated?
This bearing can operate effectively within a temperature range from -20°C to 100°C, making it versatile for different operational environments.
What advantages do sealed bearings provide in practical applications?
Sealed bearings protect against contaminants and retain lubrication, which minimises maintenance needs and extends service life.
What is the significance of the normal tolerance class for this bearing?
The PN tolerance class ensures suitable clearance and fitting for precise applications, enabling reliable performance under varying conditions.
