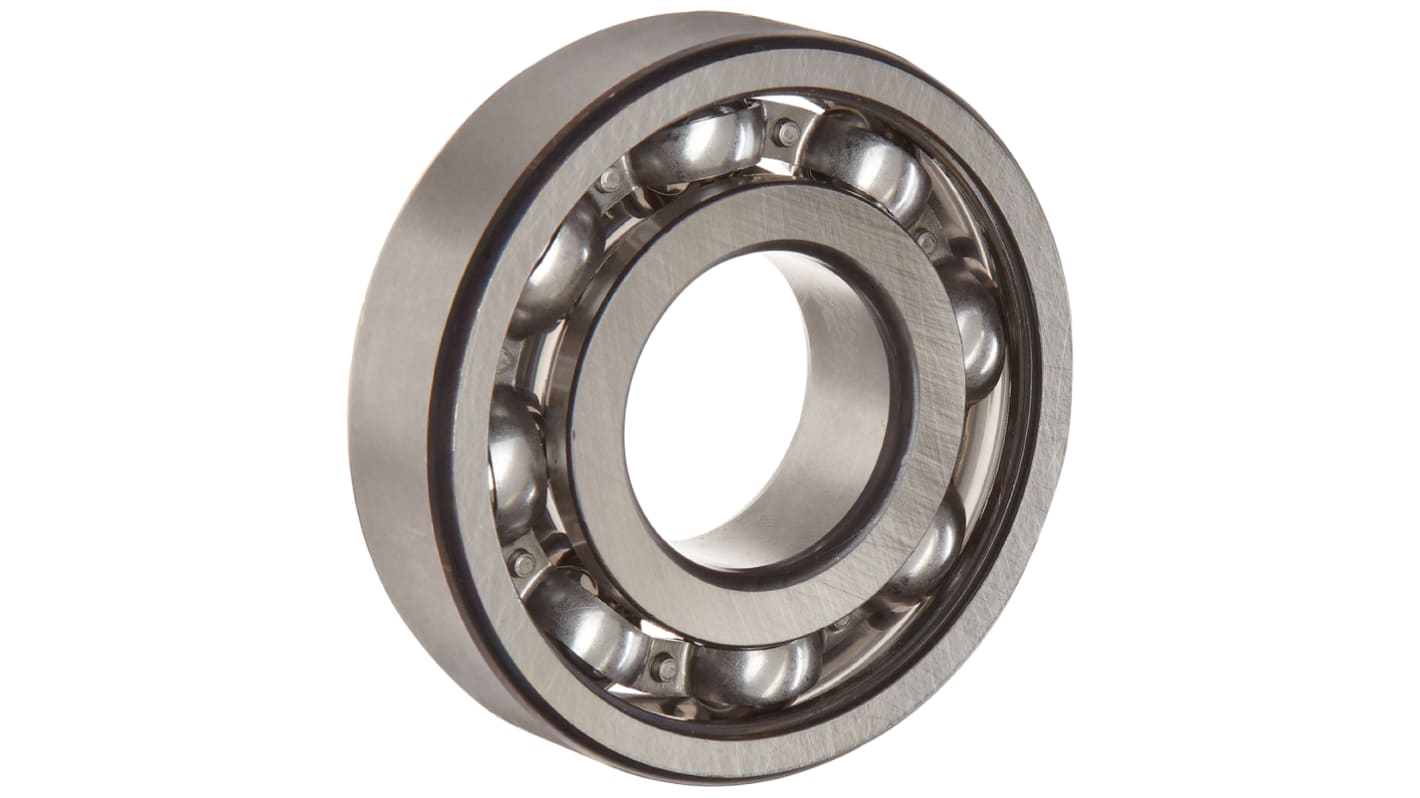

SKF 6006/C3 Single Row Deep Groove Ball Bearing- Open Type 30mm I.D, 55mm O.D

View all Ball Bearings
Bulk discount available

Subtotal (1 unit)*

£6.09

(exc. VAT)

£7.31

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 39 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£6.09
5 - 9£5.85
10 - 24£5.71
25 +£5.58

*price indicative

Sponsored
image of tub of lubricator with blue and green sticker and white lid
SKF logo in blue reading SKF
SKF Single Point Lubricators
Maximize your bearing efficiency with SKF Lubricators. Improve efficiency, minimize downtime, and extend equipment life with our comprehensive guide.
Shop now
RS Stock No.:
144-0828
Mfr. Part No.:
6006/C3
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Inside Diameter

30mm

Outside Diameter

55mm

Race Width

13mm

Ball Bearing Type

Single Row Deep Groove Ball Bearing

Sealing Arrangement

Open Type

Bearing Clearance

C3

Material

Steel

Ball Material

Steel

Cage Material

Sheet Metal

Number of Rows

1

Static Load Rating

8.3kN

Dynamic Load Rating

13.8kN

Bore Type

Parallel

Bearing Series

0 Extra Light

Race Material

Steel

Model Number p

600C3

Race Type

Plain

Partial Bearing Code

6006

COO (Country of Origin):
IT

SKF Ball Bearing, Plain-Race, Deep-Groove, 30mm ID, 55mm OD - 6006/C3


Looking for a high-performance, versatile ball bearing? This deep-groove bearing from SKF is widely used in applications where both radial and axial loads need to rotate in either direction. It's made from clean stainless steel for robustness in harsh operating conditions. A specially designed cage ensures its rolling elements are optimally guided, which makes efficient use of the unit's lubricant. This also helps to minimise wear on the bearing and keeps its operating temperature cooler, so you'll benefit from improved productivity as there's less need for maintenance.

• Light weight of 0.12kg adds minimal strain on equipment
• Able to achieve high rotational speeds of up to 28,000r/min
• Low vibration to reduce the operating noise of equipment
• Reduced power consumption for energy-efficiency

Applications


• Agricultural machinery
• Construction equipment
• Conveyors and lifts
• Mining and mineral processing

What's the load rating of this ball bearing?


This ball bearing has a dynamic load rating of 13.8kN and a static load rating of 8.3kN.

Can the lifespan of a bearing be affected during its mounting process?


Yes – to maximise your bearing's lifespan, take care to mount it precisely, using the correct tools.
