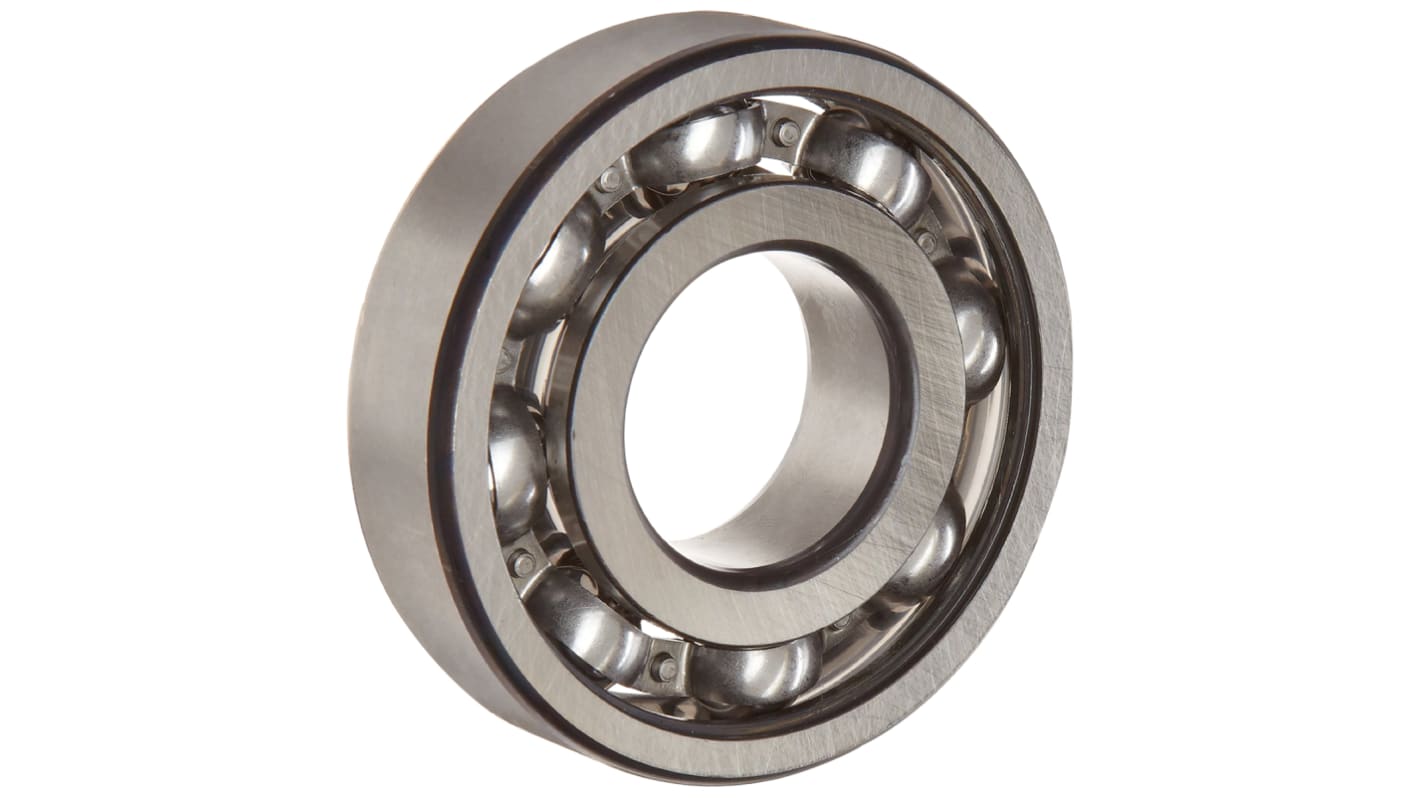

SKF 6002/C3 Single Row Deep Groove Ball Bearing- Open Type 15mm I.D, 32mm O.D
- RS Stock No.:
- 144-0823
- Mfr. Part No.:
- 6002/C3
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£3.63
(exc. VAT)
£4.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £3.63 |
5 - 9 | £3.48 |
10 - 24 | £3.41 |
25 + | £3.34 |
*price indicative
- RS Stock No.:
- 144-0823
- Mfr. Part No.:
- 6002/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 32mm | |
Race Width | 9mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 2.85kN | |
Dynamic Load Rating | 5.85kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Race Type | Plain | |
Partial Bearing Code | 6002 | |
Race Material | Steel | |
Model Number p | 6002C3 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 32mm | ||
Race Width 9mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 2.85kN | ||
Dynamic Load Rating 5.85kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Race Type Plain | ||
Partial Bearing Code 6002 | ||
Race Material Steel | ||
Model Number p 6002C3 | ||
- COO (Country of Origin):
- FR
SKF Deep-Groove Ball Bearing, 5.85kN Dynamic Load Rating, 9mm Race Width - 6002/C3
To reduce friction and wear in your machine's moving parts, choose this deep-groove ball bearing from SKF. Its balls, cage and raceway are made entirely of robust steel that's resistant to corrosion, so you can rely on it for long-term performance with minimal maintenance. An open-ended design makes it easy to visually inspect this component and lubricate it when necessary. With a reference speed of 50,000 rotations per minute and a limiting speed of 32000r/min, this ball bearing is suited for high-speed industrial appliances like cutting machines.
• Light weight of 30g, so it's easy to handle and won't strain your equipment
• Static load rating of 2.85kN (kilonewtons) and dynamic load rating of 5.85kN for strength and reliability in demanding applications
• Can handle both axial and radial loads for versatility
• Static load rating of 2.85kN (kilonewtons) and dynamic load rating of 5.85kN for strength and reliability in demanding applications
• Can handle both axial and radial loads for versatility
Applications
• Mechanical workshops
• Manufacturing plants
• Manufacturing plants
What are this ball bearing's dimensions?
This ball bearing has a 32mm outside diameter and a 15mm inner diameter. A race width of 9mm allows for the smooth rotation of the steel balls.
