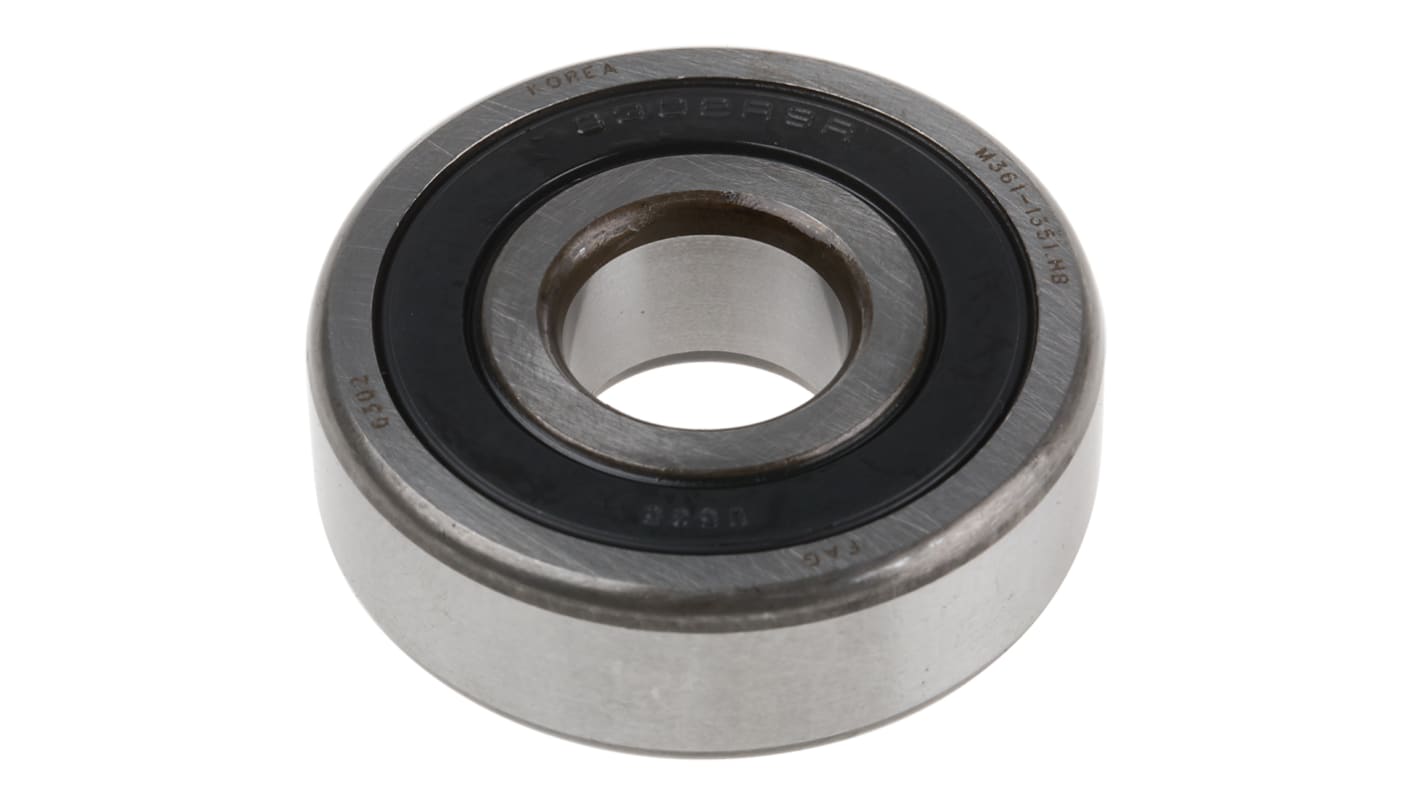

FAG 6302-C-2HRS 1 Row Ball Bearing - 15 mm ID, 42 mm OD
- RS Stock No.:
- 137-1703
- Mfr. Part No.:
- 6302-C-2HRS
- Brand:
- FAG
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£6.58
(exc. VAT)
£7.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.58 |
| 5 - 9 | £6.32 |
| 10 - 24 | £6.19 |
| 25 + | £6.06 |
*price indicative
- RS Stock No.:
- 137-1703
- Mfr. Part No.:
- 6302-C-2HRS
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 15mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 42mm | |
| Race Width | 13mm | |
| Cage Material | Steel | |
| Race Material | Bearing Steel | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 5.4kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 12.1kN | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Series | 6302-C-2HRS | |
| Limiting Speed | 11300rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Groove | |
| Flange Outside Diameter | 42mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 15mm | ||
Product Type Ball Bearing | ||
Outside Diameter 42mm | ||
Race Width 13mm | ||
Cage Material Steel | ||
Race Material Bearing Steel | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 5.4kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 12.1kN | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Series 6302-C-2HRS | ||
Limiting Speed 11300rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Groove | ||
Flange Outside Diameter 42mm | ||
Schaeffler 6302-C-2HRS Series Ball Bearing, 15mm Inside Diameter, 42mm Outside Diameter - 6302-C-2HRS
This ball bearing is a sealed, single-row deep-groove unit designed to support radial loads in rotating assemblies. It combines steel rolling elements with hardened bearing races to provide consistent operation in applications requiring sealed protection and moderate high-speed performance.
Features and Benefits:
• Sealed construction reduces contamination ingress and maintenance
• Steel cage offers Durable guidance for the balls during operation
• Rated dynamic load of 12.1 kN delivers sustained load capacity
• Static load capacity of 5.4 kN resists shock and stationary loads
• Internal clearance CN supports controlled axial and radial runout
• Limiting speed of 11,300 r/min enables elevated rotational performance
• Steel cage offers Durable guidance for the balls during operation
• Rated dynamic load of 12.1 kN delivers sustained load capacity
• Static load capacity of 5.4 kN resists shock and stationary loads
• Internal clearance CN supports controlled axial and radial runout
• Limiting speed of 11,300 r/min enables elevated rotational performance
Applications
• Suitable for electric motor spindles requiring sealed bearings
• Used with gearboxes where moderate dynamic loads occur
• Ideal for conveyor rollers exposed to dust and debris
• Can be used for pump shafts in Compact assemblies
• Suitable for machine-tool components operating at higher speed
• Used with gearboxes where moderate dynamic loads occur
• Ideal for conveyor rollers exposed to dust and debris
• Can be used for pump shafts in Compact assemblies
• Suitable for machine-tool components operating at higher speed
What materials make up the rolling pathways?
The race surfaces are manufactured from bearing steel and the balls are steel.
How does the sealing affect service life in dirty environments?
The sealed ends restrict particle entry, reducing abrasive wear and extending lubricant retention.
What internal clearance is specified and how does that affect axial movement?
The clearance class is CN, which provides a moderate allowance for thermal expansion and shaft axial float.
What flange or external Interface dimension should be expected?
The flange outside diameter measures 42 mm, defining the mounting envelope.
