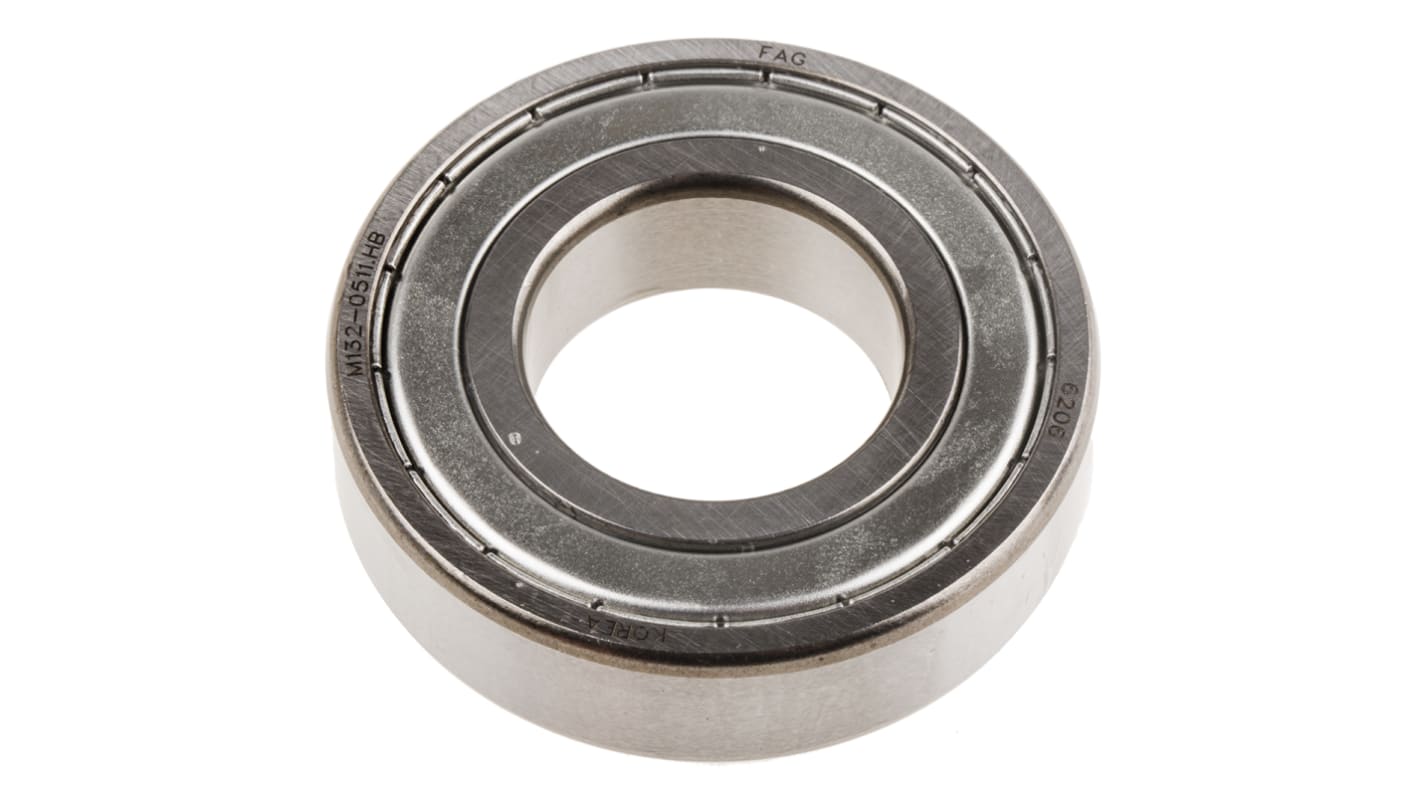

FAG 6206-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 30mm I.D, 62mm O.D
- RS Stock No.:
- 137-1667
- Mfr. Part No.:
- 6206-2Z
- Brand:
- FAG
Save 7% when you buy 25 units
Subtotal (1 unit)*
£8.06
(exc. VAT)
£9.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 114 unit(s) ready to ship
- Plus 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.06 |
5 - 9 | £7.74 |
10 - 24 | £7.58 |
25 + | £7.42 |
*price indicative
- RS Stock No.:
- 137-1667
- Mfr. Part No.:
- 6206-2Z
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 30mm | |
Outside Diameter | 62mm | |
Race Width | 16mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Steel | |
Number of Rows | 1 | |
Static Load Rating | 11.3kN | |
Dynamic Load Rating | 20.7kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 6206 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 30mm | ||
Outside Diameter 62mm | ||
Race Width 16mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 11.3kN | ||
Dynamic Load Rating 20.7kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 6206 | ||
Race Type Plain | ||
Deep Groove Ball Bearings
FAG from Schaeffler deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain. They are available in single and double row designs and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.
Features and Benefits
• Low noise levels
• Improved sealing
• Lower friction
• Cost-effective
Product Application Information
Open bearings are suitable for high speeds. Due to the manufacturing process, they have turned recesses for sealing washers and sealing shields.
Suffixes
2Z - Gap seals on both sides. These bearings are greased using a high-quality grease, lubricated for life and suitable for high speeds
2HRS - Lip seals on both sides made from nitrile butadiene rubber. These bearings have an improved sealing function and retention in the outer ring. They are greased using a high-quality grease, lubricated for life and suitable for moderate speeds
2BRS - Non-contact seals on both sides. Their friction level is as low as with the gap seals. In addition, they offer better protection against the ingress of dust and the escape of lubricant
2RSR - Lip seals on both sides made from nitrile butadiene rubber NBR and are suitable for moderate speeds
C - Modified internal construction in Generation C
Schaeffler 2 Light Series Ball Bearing, 30mm Inside Diameter, 62mm Outside Diameter - 6206-2Z
This ball bearing, designed by Schaeffler, is a single row deep groove variant known for its reliability and efficiency. With an inside diameter of 30mm and an outside diameter of 62mm, it is engineered to perform under various conditions, making it ideal for diverse industrial applications. The robust design features a sealing arrangement that ensures the bearing remains protected at both ends, enhancing its operational life.
Features & Benefits
• Steel construction provides durability and strength
• Single row design reduces friction for smoother operation
• Sealed on both sides to prevent contamination
• Suitable for high dynamic loads, rated up to 20.7 kN
• Designed for parallel bore for versatile mounting options
• Single row design reduces friction for smoother operation
• Sealed on both sides to prevent contamination
• Suitable for high dynamic loads, rated up to 20.7 kN
• Designed for parallel bore for versatile mounting options
Applications
• Used in machinery for smooth rotational movement
• Suitable for automotive where reliability is crucial
• Effective in electric motors for enhanced performance
• Utilised in conveyor systems requiring dependable motion
• Applied in robotics for precise movements
• Suitable for automotive where reliability is crucial
• Effective in electric motors for enhanced performance
• Utilised in conveyor systems requiring dependable motion
• Applied in robotics for precise movements
What load ratings can this bearing handle?
It features a static load rating of 11.3 kN and a dynamic load rating of 20.7 kN, making it suitable for heavy-duty use in various settings.
What materials are used in the construction of this bearing?
The bearing is made from high-quality steel, including components such as the balls, cage, and outer race, ensuring longevity and performance.
Can this bearing be used in outdoor applications?
While it is shielded on both sides, it is recommended to use this bearing in environments where exposure to harsh elements is minimised to extend its life.
