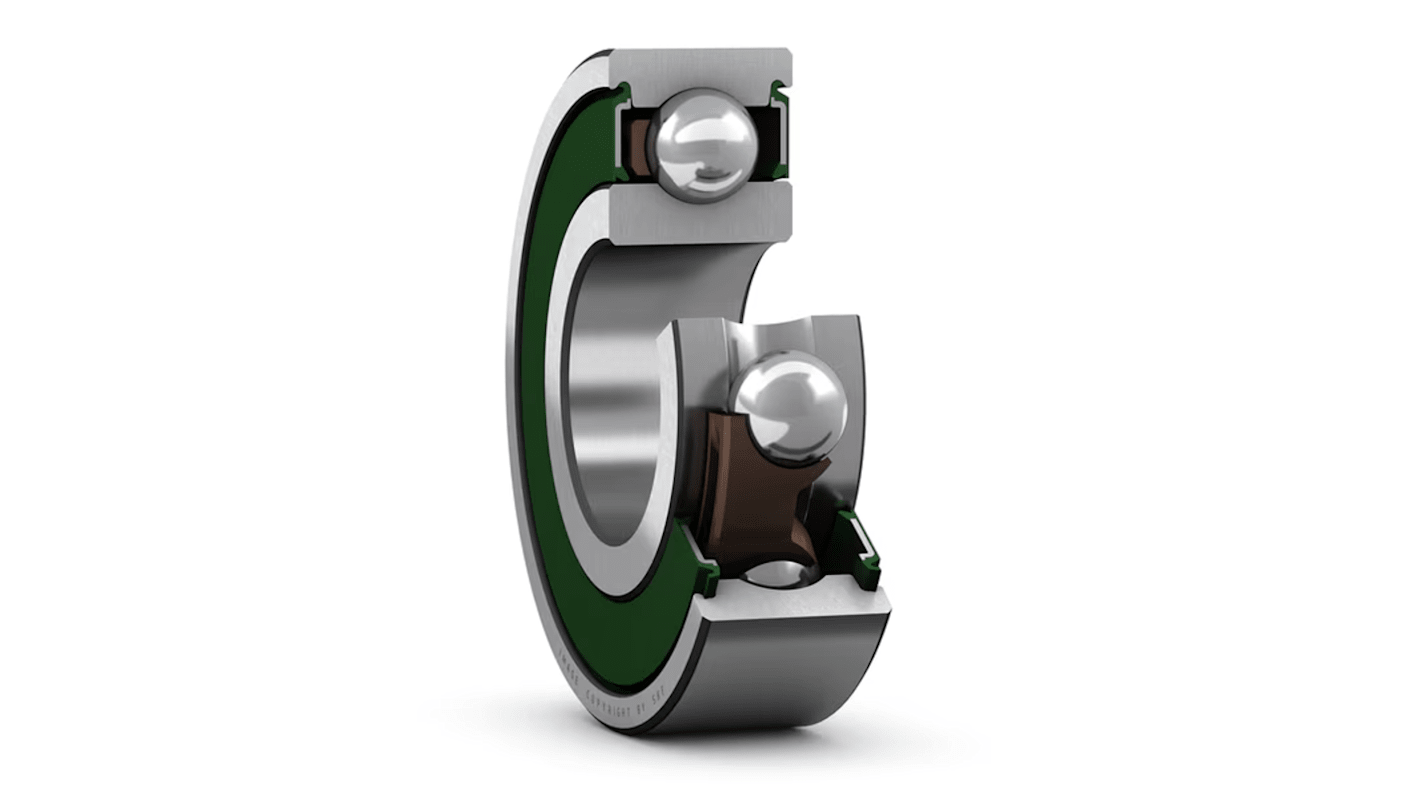

SKF 6004-2RZTN9/C3VT162 Single Row Deep Groove Ball Bearing- Both Sides Sealed 20mm I.D, 42mm O.D
- RS Stock No.:
- 123-4845
- Mfr. Part No.:
- 6004-2RZTN9/C3VT162
- Brand:
- SKF
Save 7% when you buy 25 units
Subtotal (1 unit)*
£16.43
(exc. VAT)
£19.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.43 |
5 - 9 | £15.78 |
10 - 24 | £15.43 |
25 + | £15.13 |
*price indicative
- RS Stock No.:
- 123-4845
- Mfr. Part No.:
- 6004-2RZTN9/C3VT162
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 42mm | |
Race Width | 12mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 5kN | |
Dynamic Load Rating | 9.95kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 6004 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 42mm | ||
Race Width 12mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 9.95kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 6004 | ||
Race Type Plain | ||
- COO (Country of Origin):
- IT
SKF 0 Extra Light Series Ball Bearing, 9.95 kN Dynamic Load Rating, 42mm Outside Diameter - 6004-2RZTN9/C3VT162
This ball bearing is designed for high-performance applications across various industries. With an inside diameter of 20mm and an outside diameter of 42mm, it provides robust construction and versatility. As a single row deep groove ball bearing, it ensures low friction and efficient operation. Sealed on both sides, this component enhances performance in challenging environments.
Features & Benefits
• Steel construction offers durability and strength
• C3 clearance accommodates thermal expansion
• Seals on both sides protect against contaminants
• High load capacity increases load-carrying capability
• Designed with a parallel bore for flexible installation
• Capable of handling dynamic loads up to 9.95kN
• C3 clearance accommodates thermal expansion
• Seals on both sides protect against contaminants
• High load capacity increases load-carrying capability
• Designed with a parallel bore for flexible installation
• Capable of handling dynamic loads up to 9.95kN
Applications
• Utilised in high-speed machinery in manufacturing
• Appropriate for electrical and automated systems
• Serves in automotive for bearings
• Appropriate for electrical and automated systems
• Serves in automotive for bearings
Can it operate at high speeds?
Yes, it is rated for a reference speed of 38000r/min.
Will it withstand heavy loads?
It has a dynamic load rating of 9.95kN.
