NSK 6310ZZC3 1 Row Deep Groove Ball Bearing - 50 mm ID, 110 mm OD
- RS Stock No.:
- 644-029
- Mfr. Part No.:
- 6310ZZC3
- Brand:
- NSK
Subtotal (1 unit)*
£32.78
(exc. VAT)
£39.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.78 |
*price indicative
- RS Stock No.:
- 644-029
- Mfr. Part No.:
- 6310ZZC3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 50 mm | |
| Outside Diameter | 110 mm | |
| Race Width | 27mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 38500N | |
| Dynamic Load Rating | 68000N | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 7100rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 50 mm | ||
Outside Diameter 110 mm | ||
Race Width 27mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 38500N | ||
Dynamic Load Rating 68000N | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 7100rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
Non Compliant
- COO (Country of Origin):
- PL

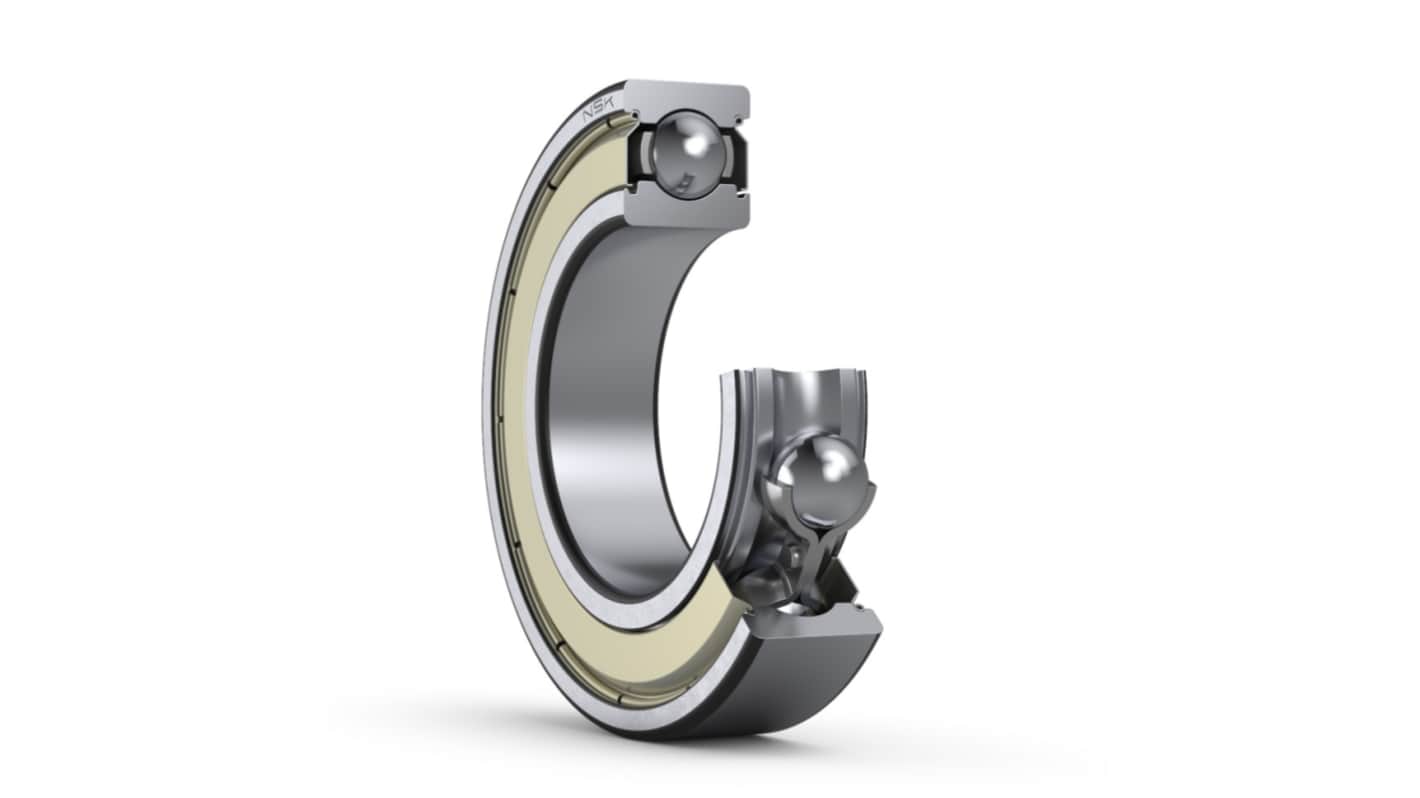

The NSK Single‑row deep groove ball bearing engineered for durability and low maintenance in demanding applications. It features a 50 mm bore diameter, 110 mm outer diameter, and 27 mm width, making it ideal for compact yet robust mechanical systems. The bearing is equipped with double steel shields (ZZ) and C3 internal clearance, providing solid protection against contaminants while accommodating thermal expansion. It offers a basic dynamic load rating of 68,000 N and a static load rating of 38,500 N, ensuring dependable performance under various load conditions.
Robust and compact construction for space efficient installation
High quality bearing steel ensures excellent durability
Lightweight design
