SKF 3308 ATN9/C3 1 Row Angular Contact Ball Bearing - 40 mm ID, 90 mm OD 36.5 mm Race Width
- RS Stock No.:
- 585-906
- Mfr. Part No.:
- 3308 ATN9/C3
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£407.19
(exc. VAT)
£488.63
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £407.19 | £81.438 |
*price indicative
- RS Stock No.:
- 585-906
- Mfr. Part No.:
- 3308 ATN9/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 40mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 90mm | |
| Race Width | 36.5mm | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 48kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 65.5kN | |
| Standards/Approvals | RoHS Compliance | |
| Series | 3308 | |
| Bore Type | Parallel | |
| Limiting Speed | 7500rpm | |
| Bearing Type | Double Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 90mm | ||
Race Width 36.5mm | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 48kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 65.5kN | ||
Standards/Approvals RoHS Compliance | ||
Series 3308 | ||
Bore Type Parallel | ||
Limiting Speed 7500rpm | ||
Bearing Type Double Row Angular Contact Ball | ||

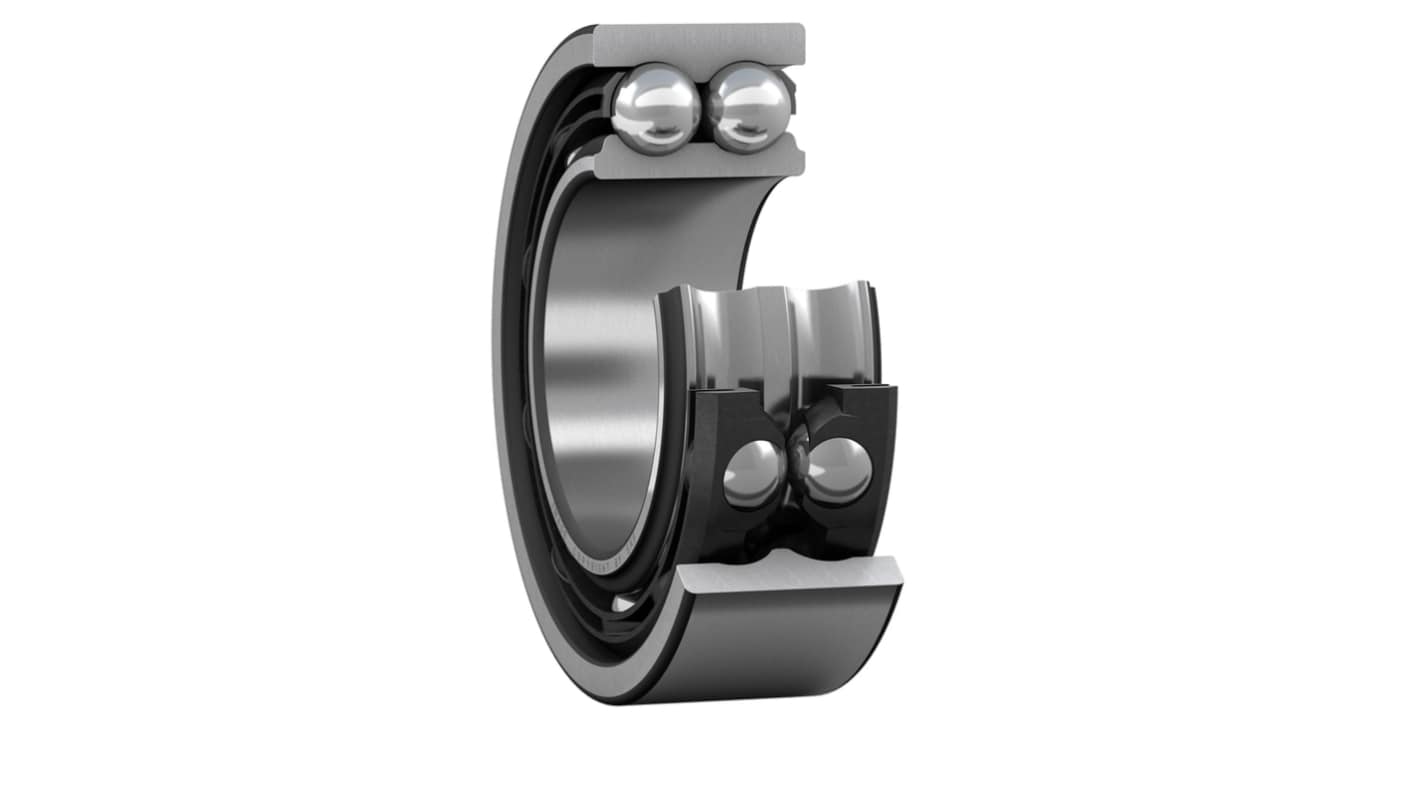

The SKF Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
High-speed capability
Accommodate relatively high radial loads and high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
