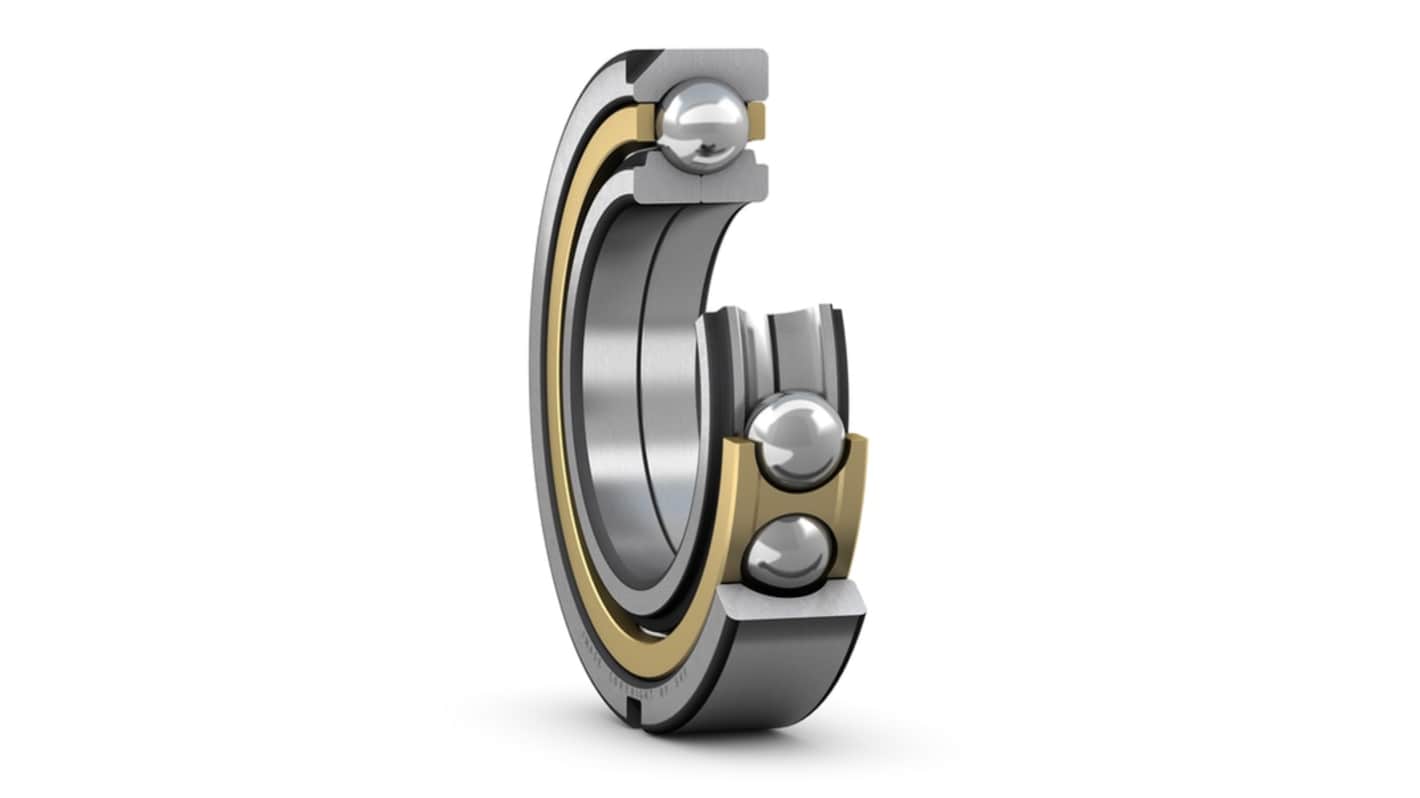

SKF QJ 332 N2MA 1 Row Ball Bearing - 160 mm ID, 340 mm OD 68 mm Race Width
- RS Stock No.:
- 465-184
- Mfr. Part No.:
- QJ 332 N2MA
- Brand:
- SKF
Subtotal (1 unit)*
£3,545.28
(exc. VAT)
£4,254.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,545.28 |
*price indicative
- RS Stock No.:
- 465-184
- Mfr. Part No.:
- QJ 332 N2MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 160 mm | |
| Outside Diameter | 340 mm | |
| Race Width | 68mm | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Contact Angle | 35° | |
| Static Load Rating | 880kN | |
| Dynamic Load Rating | 570kN | |
| Standards/Approvals | RoHS | |
| Series | QJ 332 | |
| Limiting Speed | 3400rpm | |
| Flange Outside Diameter | 340mm | |
| Bearing Type | Four Point Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 160 mm | ||
Outside Diameter 340 mm | ||
Race Width 68mm | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Contact Angle 35° | ||
Static Load Rating 880kN | ||
Dynamic Load Rating 570kN | ||
Standards/Approvals RoHS | ||
Series QJ 332 | ||
Limiting Speed 3400rpm | ||
Flange Outside Diameter 340mm | ||
Bearing Type Four Point Contact | ||
- COO (Country of Origin):
- AT
The SKF Four point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
High speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space than double row angular contact ball bearings
