SKF QJ 218 N2MA/C3 1 Row Ball Bearing - 90 mm ID, 160 mm OD 30 mm Race Width
- RS Stock No.:
- 464-935
- Mfr. Part No.:
- QJ 218 N2MA/C3
- Brand:
- SKF
Subtotal (1 unit)*
£539.31
(exc. VAT)
£647.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £539.31 |
*price indicative
- RS Stock No.:
- 464-935
- Mfr. Part No.:
- QJ 218 N2MA/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 90 mm | |
| Outside Diameter | 160 mm | |
| Race Width | 30mm | |
| Cage Material | Non-Metallic | |
| Number of Rows | 1 | |
| Contact Angle | 35° | |
| Static Load Rating | 200kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 186kN | |
| Standards/Approvals | RoHS | |
| Series | QJ 218 | |
| Limiting Speed | 7000rpm | |
| Bearing Type | Four Point Contact | |
| Flange Outside Diameter | 160mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 90 mm | ||
Outside Diameter 160 mm | ||
Race Width 30mm | ||
Cage Material Non-Metallic | ||
Number of Rows 1 | ||
Contact Angle 35° | ||
Static Load Rating 200kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 186kN | ||
Standards/Approvals RoHS | ||
Series QJ 218 | ||
Limiting Speed 7000rpm | ||
Bearing Type Four Point Contact | ||
Flange Outside Diameter 160mm | ||
- COO (Country of Origin):
- DE

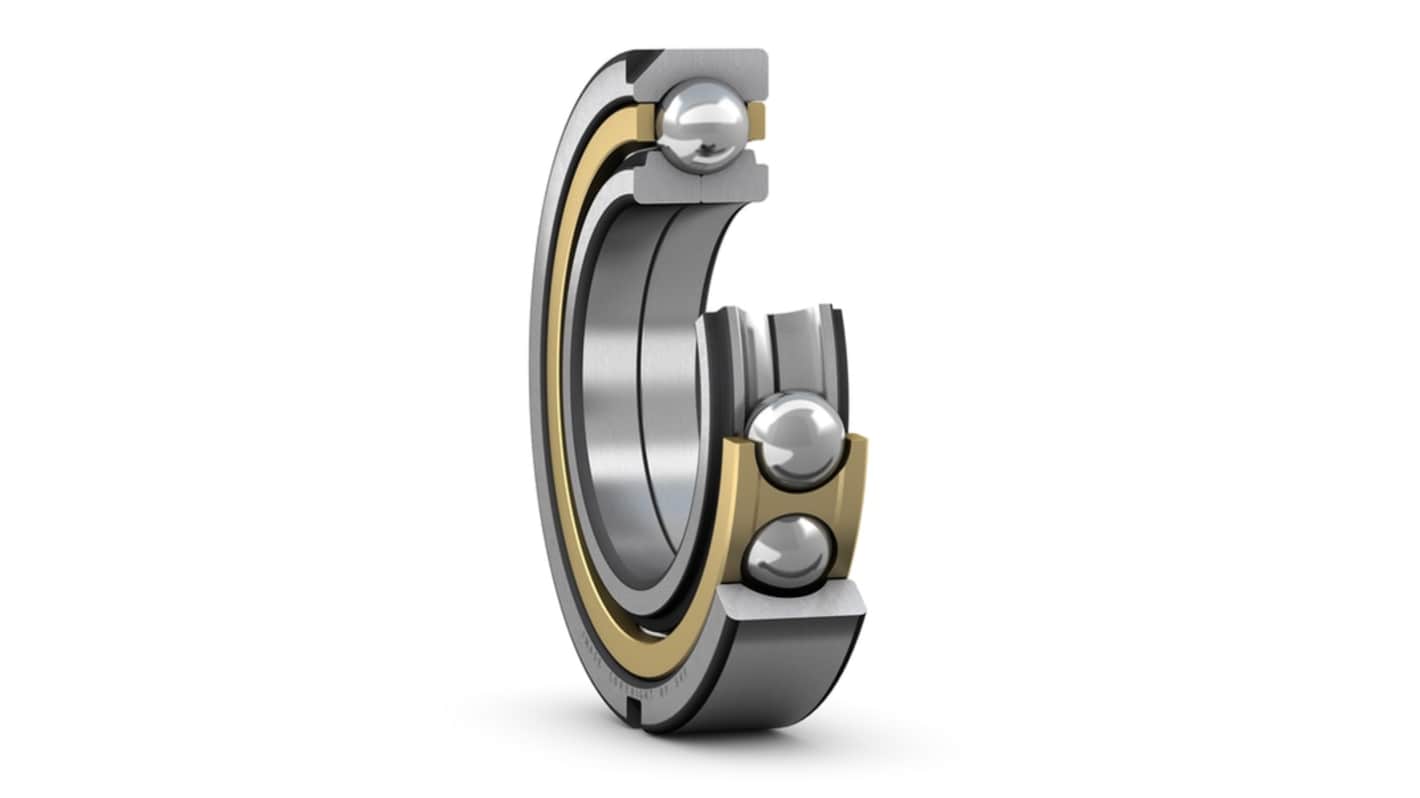

The SKF Four point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
High speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space than double row angular contact ball bearings
The locating slots can be used to prevent the outer ring from rotating
