SKF QJ 226 N2MA 1 Row Angular Contact Ball Bearing - 130 mm ID, 230 mm OD 40 mm Race Width
- RS Stock No.:
- 463-557
- Mfr. Part No.:
- QJ 226 N2MA
- Brand:
- SKF
Subtotal (1 unit)*
£1,349.96
(exc. VAT)
£1,619.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,349.96 |
*price indicative
- RS Stock No.:
- 463-557
- Mfr. Part No.:
- QJ 226 N2MA
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 130 mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 230 mm | |
| Race Width | 40mm | |
| Cage Material | Machined Brass | |
| Ball Material | Bearing Steel | |
| Number of Rows | 1 | |
| Contact Angle | 35° | |
| Static Load Rating | 400kN | |
| Dynamic Load Rating | 310kN | |
| Series | QJ 226 | |
| Standards/Approvals | No | |
| Limiting Speed | 4800rpm | |
| Bearing Type | Four Point Contact | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 130 mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 230 mm | ||
Race Width 40mm | ||
Cage Material Machined Brass | ||
Ball Material Bearing Steel | ||
Number of Rows 1 | ||
Contact Angle 35° | ||
Static Load Rating 400kN | ||
Dynamic Load Rating 310kN | ||
Series QJ 226 | ||
Standards/Approvals No | ||
Limiting Speed 4800rpm | ||
Bearing Type Four Point Contact | ||
- COO (Country of Origin):
- AT

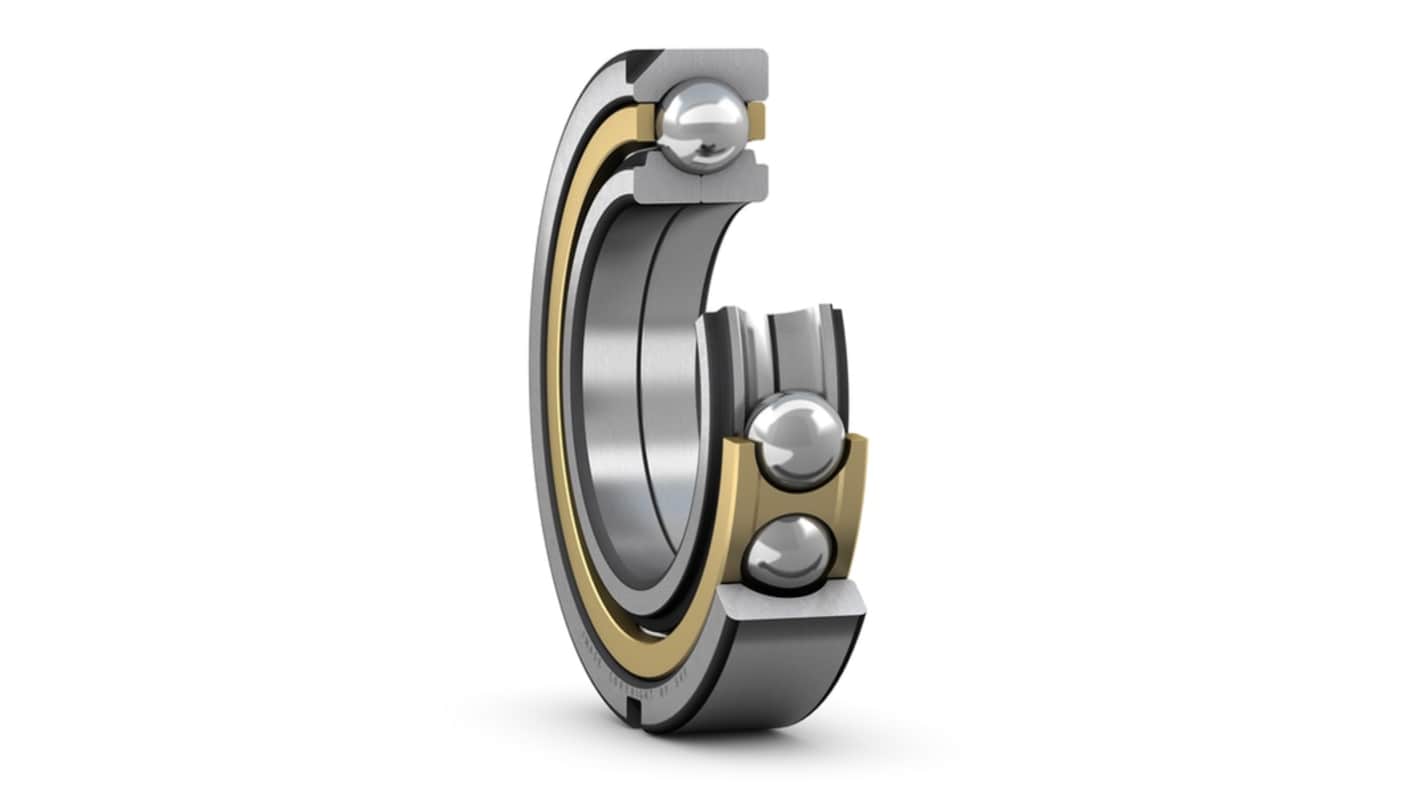

The SKF Four-point contact ball bearings with locating slots are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
High speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space
